Rita Bachkhanji
For this edition of our Have You Tried series, let’s take a closer look at the Linear Feature Extraction workflow in InfraWorks.
Extraction of linear information such as breaklines, edges, building footprints, and property boundaries from point clouds or other data can be very valuable when performing conceptual design and detailed design.

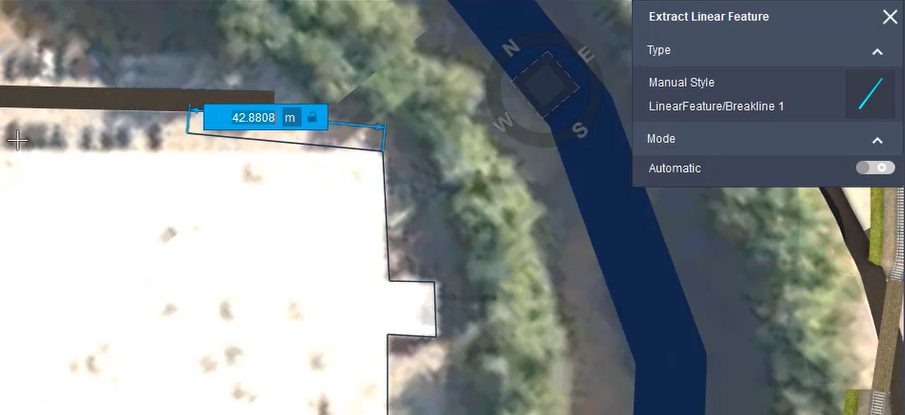

The Linear Feature Extraction in InfraWorks allows users to quickly extract line or linear features from an InfraWorks terrain , incorporate them into their InfraWorks model, and export them for use in other products like Civil 3D.
This tool helps you eliminate the need to recreate feature elements in detailed design, resulting in significant time savings and improvement in accuracy and design quality.
In this Have You Tried, we’ll go over:
- Automatic Method
- Manual Method
- Exporting a linear feature
Head over to the InfraWorks Have You Tried topic to learn more about Linear Feature Extraction tool!
