When Scottish Canals, Glasgow City Council, and Scottish Water came together to create the Glasgow Integrated Water Management System under the wider umbrella partnership of the Metropolitan Glasgow Strategic Drainage Partnership, they had a radical idea – to turn North Glasgow into a “sponge city”, utilizing long-neglected canals in an ecologically friendly way to absorb, hold, and move water.
Reviving a marvel of the Industrial Age
The Forth & Clyde Canal that runs through North Glasgow was a marvel of its time when it opened in 1790 – the world’s first sea-to-sea canal. Built over 22 years without the benefit of railway lines or major roads, it represented the height of progress at the time.
But by the 1960s, the world had long since moved on. Parliament extinguished rights of navigation and officially ended trade on the canals, which slowly began to fall into disrepair. “They became contaminated, they became abused, they became places that people considered to be unsafe,” says Peter Robinson, Head of Engineering at Scottish Canals.
But this decline came to end at the turn of the 21st century with the implementation of the Millennium Link and restoration of the navigation, which opened in 2001 and led to ongoing redevelopment and regeneration across the canal corridors, which continues today.
Using data to build a Digital Twin
Working with AECOM, one of the world’s largest infrastructure consulting firms, Scottish Canals developed a set of scenarios to explore capturing the water from rainfall events and the steps they would need to take to return the canal to its normal operating level after each event. They chose InfoWorks ICM and ICMLive to help them carry out their many use cases.
“One of the most critical components of the entire system is the software that’s been provided and created by Autodesk,” says Robinson. “It’s allowed us to create a Digital Twin of the entire system.”
To create that Digital Twin, water quality, flow, and level data is collected by an integrated control system. This is combined with live and forecast weather data from the UK’s Met Office and transferred to ICMLive, where it is used within a data model developed by AECOM to optimise operations and control water levels in the canal on a massive scale in real time.
Moving massive hardware with smart, sophisticated software
During normal, day-to-day operations, locks along the canal maintain water levels at 47.9m AD (above datum), allowing comfortable navigation for pleasure boating, paddleboarding, fishing, and a range of other activities. But when a storm looms on the horizon, the software gets to work:
- Need for speed: The ICMLive model is first run in hydrological mode for speed using the forecast rainfall data to predict the expected volume of runoff into the canal. This volume is used to set a target canal level to accommodate a proportion of the predicted runoff.
- Full hydraulic model: Next, they run the full hydraulic ICMLive model using their monitored flows and levels as initial conditions.
- Optimize sluice positions: The model produces a list of future sluice positions at three discharge points, along with exactly when they should be activated.
- Open the gates: A SCADA system monitors the database and issues commands to site PLCs when it’s time – and the drawdown of the canal begins.

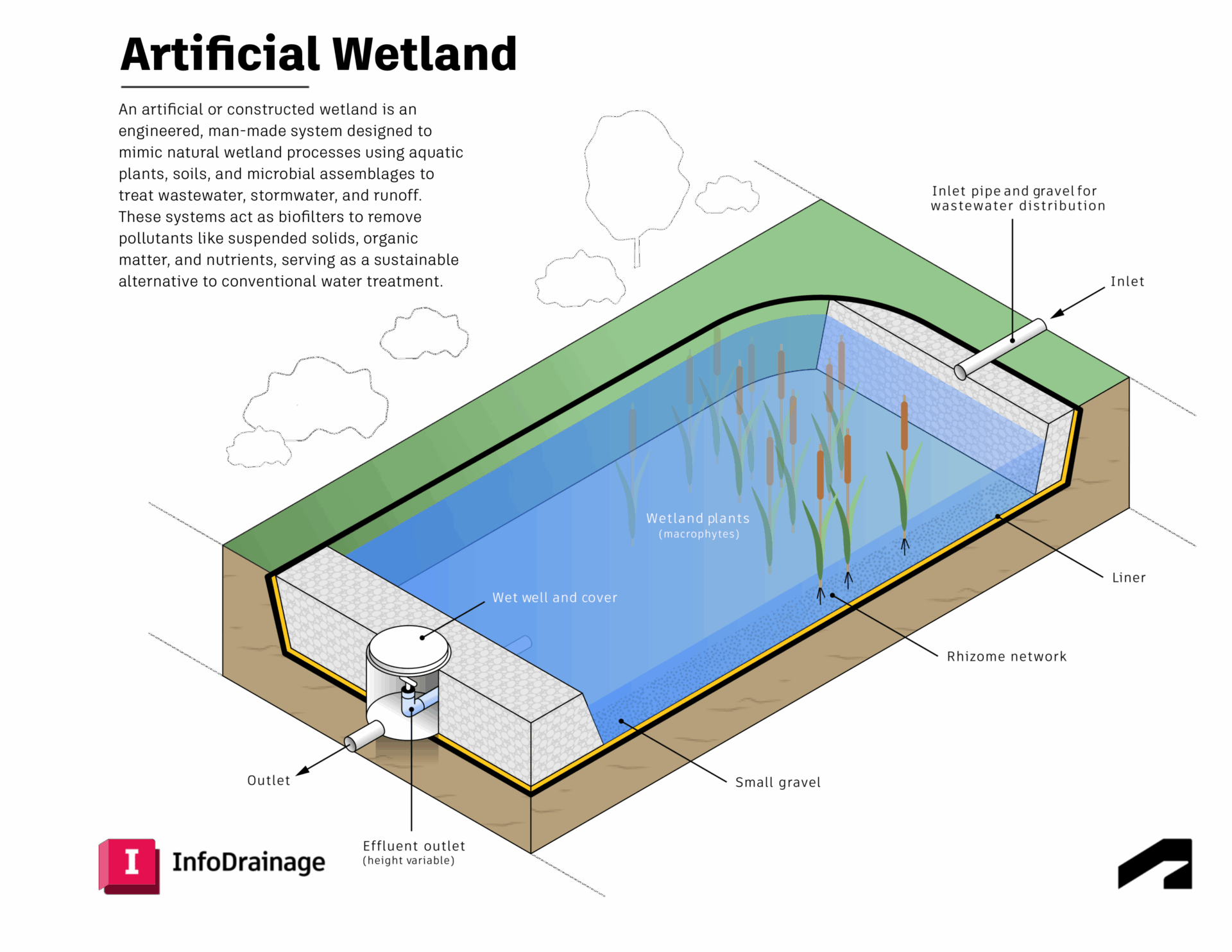

Once activated, water is safely removed from the canal through watercourses and into the natural water environment in a controlled and managed process, in advance of rainfall to ensure there is no increase of flood risk. Runoff into the canal can then be accommodated with water being treated and attenuated through a network of newly created urban spaces, comprising of both natural and urban granite ponds and features.
The big difference 10 cm can make
When preparing for rain, the water level can be taken down to 47.8m AD and still be navigable. This 10 cm difference creates a significant amount of excess storage capacity for surface water run-off, providing up to 55,000 cubic metres of water storage during an extreme weather event – the equivalent of 22 Olympic swimming pools.
The software is used to predict runoff volumes to the canal from forecasted storm events. These predictions can be used to confidently reduce the water levels in the canal to provide the required storage volume mitigate flooding while minimising unnecessary discharge to the River Kelvin. Additionally, this aids in the refilling of the canals in accordance with regulations and without incurring penalties for over-abstraction.
Finding the right balance
Thanks to their considerable planning to work through scenarios using these software simulations, at the end of a storm, Scottish Canals has plenty of triggers and controls to ensure that the water is always returned to its normal level – to find the balance they need.
“As an engineer, being able to look at a digital representation of the canal, to understand exactly what’s going on at a certain point in time, is really valuable to us,” says Robinson, “Without that software, the project just couldn’t exist.”
A haven for wildlife and people
By combining top technology with innovative thinking, the city of Glasgow has been able to meet its ambitious regeneration plans, without negative impacts on the environment or its residents.
“A key aspect was to reduce the uncertainty for development,” says Robinson. “This scheme gave developers the confidence to come.” The radical transformation of the canals did, indeed, bring them to the table, unlocking 110 hectares of land for investment, regeneration, and development of over 3,000 new homes and businesses in North Glasgow.
“It is very exciting to see such smart technology in operation in Glasgow – one of very few examples in the world – and we can look forward to it playing a key role in the continued regeneration of Glasgow’s Canal and the north of the city,” says Councillor Susan Aitken, leader of Glasgow City Council.
Justifying the canal’s existence in the 21st century
As Aitken notes, the canal’s rejuvenation has kick-started more growth. Over the next 10-15 years, they’ll be enhancing connections to the Forth & Clyde Canal to five adjacent neighbourhoods. Cycling across the newly opened Stockingfield Bridge and along the canal, you can clearly see the canals’ rapid transformation happening. It’s becoming a thriving, welcoming space for houseboat dwellers, runners, birdwatchers, kite flyers, kayakers – a haven for people and nature alike.
And because they chose to pursue a sustainable approach instead of constructing a traditionally engineered, concrete-rich drainage solution, at the end of this decades-long project they will have effectively avoided incurring 5,000 tons of capital carbon and 500 tons annually by repurposing existing infrastructure to minimize the impact on our environment.
“The climate is changing and the world has got some big problems coming at us. I think everybody is really starting to wake up and realise that,” concludes Robinson. “This project demonstrates the solutions that are out there. We’ve justified the canal’s existence and its purpose in the 21st century.”
A cycle along the canal
The Clay Pits Nature Reserves, where they used to mine clay for lining the canals, has blossomed anew, with volunteers in the community keeping it clean and welcoming for both wildlife and people.
The project has unlocked 110 hectares of urgently needed land for investment, regeneration, and development. They’re building 3,000 new homes and new businesses are sprouting up to serve locals and visitors.
Cut off from surrounding neighbourhoods for centuries, the area is being transformed with new ways in – like the brand-new Stockingfield Bridge that now connects surrounding neighbourhoods to the canals.

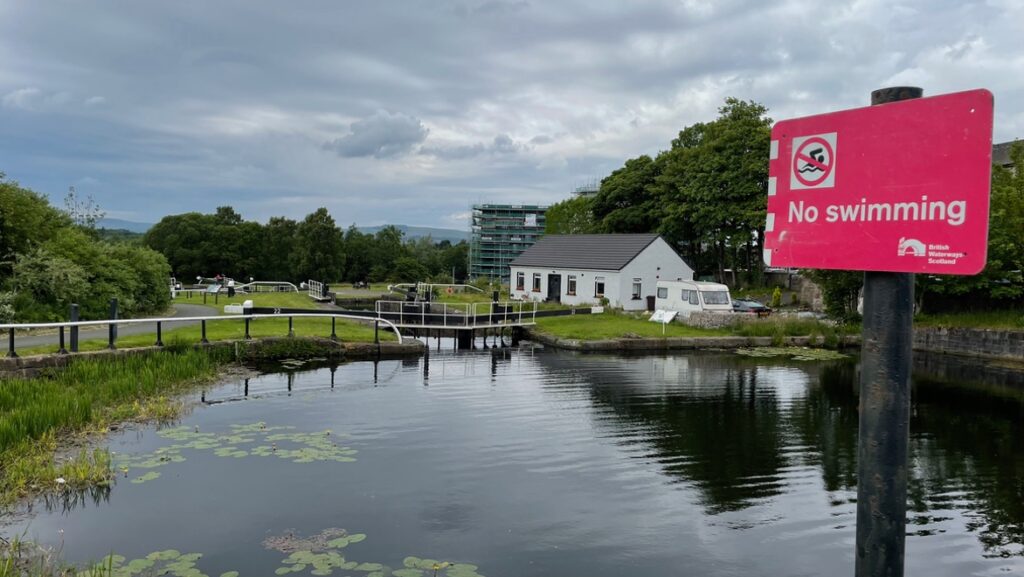

The Maryhill Locks consists of five locks which descend into the Kelvin valley. Each lock is connected by an oval basin that allows boats to gather and pass through.
There are 39 locks on the Forth & Clyde Canal, which opened in 1790.
Houseboats of all sorts, including this rescue lifepod, are proliferating – sometimes as Airbnbs.
The canal’s redevelopment includes nice details like this under-the-bridge mural.

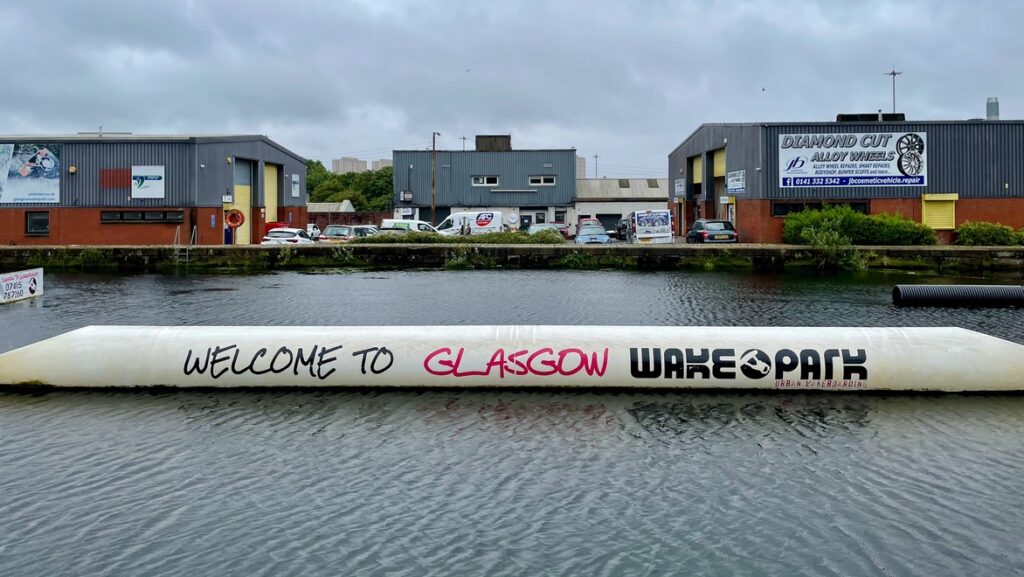

New businesses are sprouting up like this wakeboarding and river rafting pool that used to be a nuclear cooling pond. On the day we visited, they hosted emergency rescue training exercises.
