Pre-test

Before you begin this course, test your skills by taking the following assessment to see where you stand.

Keep track of your incorrect answers to know which skills you should study. You'll have a chance to take this same practice test again at the end of the course to see how you've improved.

All questions must be answered to submit your assessment.

Pre-test

50 questions

Refer to exhibit.

A structural designer is applying conditional formatting to a structural framing schedule.How many rows will be highlighted in red once the formatting is applied?

(Select one)

Two rows
Zero rows
Five rows
Seven rows

Select an answer

Refer to exhibit.

A structural designer has created a structural framing schedule which includes a custom parameter SPAN TO DEPTH RATIO. Each steel beam will need to be tagged with the SPAN TO DEPTH RATIO value in several views.

With the Schedule Properties dialog open how should the parameter be created?

(Select one)

In the Formatting tab, click the Conditional Format button. Create a new condition for the span to depth ratio.
In the Fields tab, click the Add Calculated Parameter button. In the Calculated Value dialog, create the new parameter.
In the Fields tab, click the New Parameter button. In the Parameter Properties dialog, create a new project parameter.
In the Fields tab, click the New Parameter button. In the Parameter Properties dialog, create a new shared parameter.

Select an answer

The origin of a family is defined by the intersection of two reference planes. Which instance property controls this function?

(Select one)

Is Base Point
Defines Datum
Is origin
Defines Origin

Select an answer

When creating a wall foundation, which type property differentiates between a retaining and a bearing foundation?

(Select one)

Vertical bearing
Support type
Structural usage
Foundation type

Select an answer

A type catalog requires two files to be present in the same directory. What are the file extensions of these two files?

(Select one)

.rvt and .csv
.rvt and .txt
.rfa and .csv
.rfa and .txt

Select an answer

A structural designer is working on a workshared model.

The designer made changes to elements that were borrowed from another user.

Which two actions could the designer take to relinquish the changed elements? (Select two.)

Select up to 2

Close the file without saving.
Click Synchronize with Central.
Deny or grant pending editing requests.
Click Reload Latest.
Click Gray Inactive Worksets.

Select an answer

A structural designer has deleted a multi-segmented dimension that was applying an equality constraint to several grids. However, the constraint is still applied.

How can the constraint be viewed?

(Select one)

With a single grid selected, right-click and select All Instances.
Select another dimension, right-click and select EQ Display.
On the Quick Access toolbar, select Activate Controls and Dimensions.
On the View tab, select Show Hidden Lines and select All Grids.

Select an answer

Refer to exhibit.

A structural designer is creating a pile family that will be nested into a pile cap family.The pile cap family should support tagging and scheduling of the individual piles within the pile cap.

Which option must be enabled?

(Select one)

Always Vertical
Shared
Cap
Cut with Voids When Loaded

Select an answer

Refer to exhibit.

A structural designer has defined a scope box in a plan view to control the visual layout of the 6 grids shown in the exhibit.

While reviewing the south elevation, grids 1,2 & 3 are not displayed.

Which of the following options must be used to display the grids?

(Select one)

On the View tab, select Visibility/Graphics. Select the Annotation Categories tab and select the check box for Grids.
Ensure that the plan is the active view. In the Properties palette, in the Extents group, ensure that the correct Scope Box is set.
Select the scope box. In the Properties palette, select Views Visible. Override the Visibility of the Scope box in the South Elevation.
Select grids 1,2 & 3. On the Modify Grids tab, select Propagate Extents. In the Propagate Datum Extents dialog, select all the elevation views.

Select an answer

A structural designer is working on a model that has a linked architectural Revit file.

What should the designer do to make sure the architectural file is always loaded when both files are moved together to a new directory?

(Select one)

Set the link's reference type to attachment.
Set the link's path type to relative.
Set the link's path type to absolute.
Set the link's reference type to overlay.

Select an answer

Refer to exhibit.

A structural designer is creating a lintel family that is embedded in a wall opening. The designer wants to use the thickness of the wall in a formula by creating a parameter called Wall Thickness.How should this parameter be added to the family?

(Select one)

Select the wall, click Activate Controls and Dimensions, and then add a Family parameter.
Go to Family Types, click Create New Parameter, and set the Data Type to .
Dimension the wall, add an Instance parameter, and then assign it as a Reporting parameter.
Go to Family Category and Parameters and in the Family Parameters category select Shared.

Select an answer

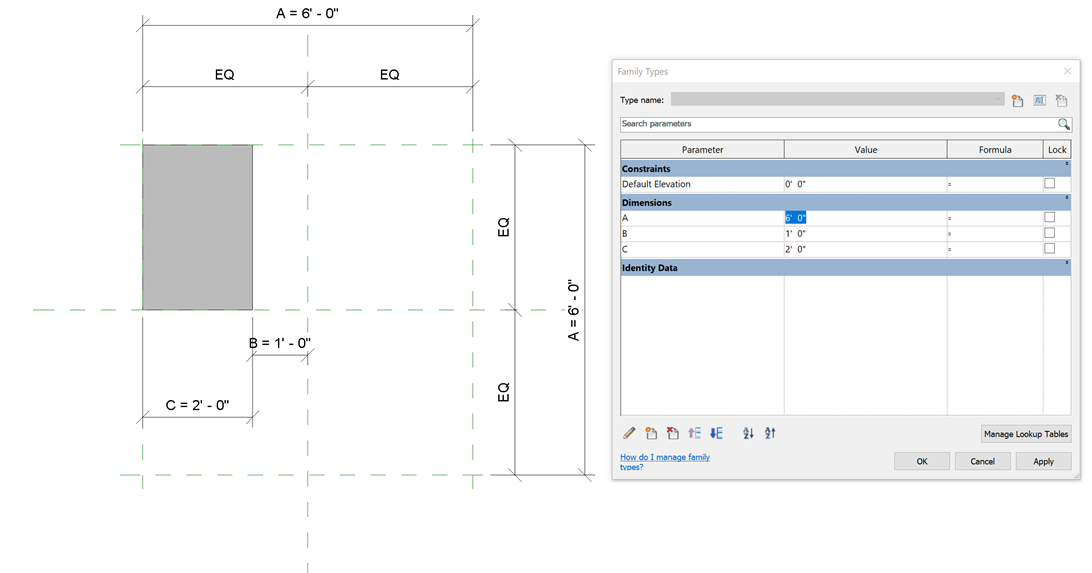

Refer to exhibit.

A structural designer is creating a pile family that will be nested into a pile cap family.The pile cap family should support tagging and scheduling of the individual piles within the pile cap.Which option must be enabled?

(Select one)

Currently cannot upload images - will add images after file is exported
Currently cannot upload images - will add images after file is exported
Currently cannot upload images - will add images after file is exported
Currently cannot upload images - will add images after file is exported

Select an answer

If two views are added to a sheet, one with a scale of 1"= 1' and 1/8" = 1’, what would the scale label display?

(Select one)

-
Multiple scales
As Indicated
1" = 1', 1/8" = 1'

Select an answer

Refer to exhibit.

A structural designer wants the area between Grid 1 and Grid 8 to have a different view range than the area between Grid 8 and Grid 6.How can this be accomplished on one structural plan view?

(Select one)

Create a plan region for each area and modify the view range of each region.
Create a structural plan callout for each area and modify the view range of each callout.
Create a scope box for each area and modify the view range of each scope box.
Create a matchline aligned with Grid 8 and modify the view range of the view.

Select an answer

A structural designer wants to use an architect’s AutoCAD drawing as a guide for the proposed design. The AutoCAD file could be revised during the project, and the filename could change.

On the Insert tab, which of the following tools must be used?

(Select one)

DWF Markup
Insert from File
Import CAD
Link CAD

Select an answer

Refer to exhibit.

The beam is attached to a round column with a 1ʹ0ʺ [305mm] diameter. What is the value of the Start Join Cutback?

(Select one)

2ʹ6ʺ [632mm]
3ʹ6ʺ [1067mm]
2ʹ0ʺ [610mm]
3ʹ0ʺ [915mm]

Select an answer

Refer to exhibit.

What should be used to keep only elements with Type Marks F1 or F2?

(Select one)

Field Format tool.
Conditional Format tool
Sort tool
Filter tool

Select an answer

What occurs when coordinates are acquired from a linked file?

(Select one)

The coordinates of the linked model establish the shared coordinate system of the host model.
The changes to the linked model's coordinates system cannot be saved.
The coordinates of the host model establish the shared coordinate system of the linked model.
The host model's internal coordinates change.

Select an answer

A structural designer needs to provide an Excel spreadsheet of a material takeoff to a cost estimator. How is this accomplished?

(Select one)

Go to Export settings and click the General tab. Under Default Export Options, chose the desired file format.
Open the schedule view and export reports as a schedule. Open the text file and save as Excel.
In the Project Browser, select the desired schedule and right-click. Then select Save to New File.
In the schedule, select all of the rows and columns and select Copy to Clipboard. Open Excel and paste.

Select an answer

Refer to exhibit.
What is the Base Level and the Top Level of the selected column?

(Select one)

Base Level: 01 Slab-on-grade
Top Level: 00 T.O. Footing
Base Level: 01 Slab-on-grade
Top Level: 01 Slab-on-grade
Base Level: 00 T.O. Footing
Top Level: 00 T.O. Footing
Base Level: 00 T.O. Footing
Top Level: 01 Slab-on-grade

Select an answer

Refer to exhibit.

The model has two design options, Radial Option and Square Option. A structural designer is trying to work on the Square Option.

The current design option is set correctly to Square Option on the status bar, however, the Radial Option is displayed in the drawing area.

How should the designer display the correct option?

(Select one)

On the status bar, deselect Active Only, and then reset the current Design Option to Square Option.
In the view, select all of the items that need to be on the Square Option, and then select Add to Set.
In the Visibility Graphics dialog, Design Options tab, set the current Design Option to Square Option.
In the Design Options dialog, select the Square Option, and under Options, click Make Primary.

Select an answer

Refer to exhibit.

A structural designer is creating a connection detail between the structural framing arrangement as shown. The break symbols and connection plate have been placed as detail components but are not masking the structural framing.

How should this problem be resolved?

(Select one)

Select the three structural framing elements. On the Modify Structural Framing tab, select Z-Offset.
Select the detail components. On the Modify Detail items tab, select Bring to Front.
On the View Control Bar, select the Hidden Line visual style.
On the View tab, select Visibility/Graphics. In the dialog, select the Model Categories tab and ensure that Detail items is selected.

Select an answer

Refer to exhibit.
(The image is presented in Imperial units: 1 in = 25 mm [Metric units rounded].)

A structural designer notices that Level 0 and Level 1 appear to have the same elevation even though they have spacing in between.

What is one possible explanation for this?

(Select one)

Level 1 does not have an associated view.
The Computation Height parameter is set to zero for Level 1.
Each level has a different elevation base.
The Structural Parameter checkbox is only selected for Level 1.

Select an answer

A structural designer wants to determine if any of their structural columns have duplicate type marks.

How can this be achieved?

(Select one)

Review the warnings.
Compact the model.
Check for interferences.
Audit the model.

Select an answer

Refer to exhibit.

A set of alternate bid sets and sheet revisions has been created for a project. How would a designer customize the MARK values as shown in the exhibit?

(Select one)

In the Sheet Issue/Revisions dialog, go to Numbering, and select Per Project.
In the view's Properties panel, go to Current Revision, and change the prefix.
In the Sheet Issues/Revisions dialog, go to Numbering, and create a New Numbering Sequence.
In the view's Properties panel, edit Revisions on Sheets, and select Show in Revision Schedule.

Select an answer

Refer to exhibit.

A structural designer is required to create a key displaying the various wall types used within the current project. The key should remain associated to the wall types so if the materials or thicknesses are updated the key should also update.

How should the wall key be created?

(Select one)

Create a new legend view. On the Annotate tab, click the Legend component. Place an instance for each wall family required. Place the new legend on the relevant sheets.
Create a new structural plan view. On the Structure tab, click Wall. Draw a short length of each wall type required. Place the new plan on the relevant sheets.
Create a new callout view. On the Annotate tab, click the Keynote legend. Select the wall field. Place the new callout on the relevant sheets.
Create a new drafting view. On the Annotate tab, click Filled Region. Create a filled region to represent each wall. Place the new drafting view on the relevant sheets.

Select an answer

Refer to exhibit.

A structural designer is placing a callout but cannot use the Reference Other View command. Why?

(Select one)

All other callouts are placed on sheets.
All other callouts are pinned.
This callout is pinned.
This is the only callout that was placed in the model.

Select an answer

Refer to exhibit.

A structural designer has edited the base offset of a structural column. While applying the edit a warning dialog is displayed as shown in the exhibit.

Which type of structural foundation has caused this warning dialog to display?

(Select one)

Isolated foundation.
Foundation slab.
An In Place foundation.
Wall foundation.

Select an answer

A Revit template is about to be upgraded to the current version. Prior to opening the template and upgrading, the structural designer has decided to scan and fix any potential elements that have become corrupt. How should the template be scanned and upgraded?

(Select one)

Click the File tab and select New project. In the New Project dialog, create a new project from the required Revit template. Save the new project as a Revit template.
On the Collaboration tab, click Show History. In the Show History dialog, browse to the Revit template. Click Open. Save as a Revit template.
Click the File tab and select Open Project. In the Open dialog, select the Revit template. Select the Audit option and click Open. Save as a Revit template.
With the template open, in the Manage tab, click Purge Unused. Select All and click OK. Save as a Revit template.

Select an answer

A structural designer selects a floor and expects to see the reinforcement panel displayed on the Modify | Floors tab, but the reinforcement panel is not displayed.

How should the floor be modified?

(Select one)

In the Properties palette, select the Structural Property checkbox.
On the Modify | Floors tab, click the Reset Shape command.
On the Modify | Floors tab, click Edit Boundary and remove the slope arrow.
In the Properties palette, click Edit Type and set the function to Exterior.

Select an answer

Refer to exhibit.

A structural designer would like to change the cut pattern for all concrete elements in all views. All the concrete elements are assigned the same structural material. The cut pattern should be changed to a solid gray fill as shown in the exhibit.

Which option should be used?

(Select one)

On the Manage tab, select the Additional Settings drop-down menu. Select the Fill Patterns and change it to a solid gray fill.
On the Manage tab, select Object Styles. In the Object Styles dialog, set the Line Pattern to Solid for all categories.
On the View tab, select Visibility/Graphics. In the Visibility/Graphic Overrides dialog change the Cut Patterns for walls.
On the Manage tab, select Materials. In the Material Browser dialog, change the Cut Pattern for the concrete material.

Select an answer

A structural plan view named Plan A has two dependent views: Plan B and Plan C. What happens when elements in Plan C are tagged?

(Select one)

The tags are only visible on Plan C and Plan B.
The tags are only visible on Plan A, Plan B, and Plan C.
The tags are only visible on Plan C and Plan A.
The tags are only visible on Plan C.

Select an answer

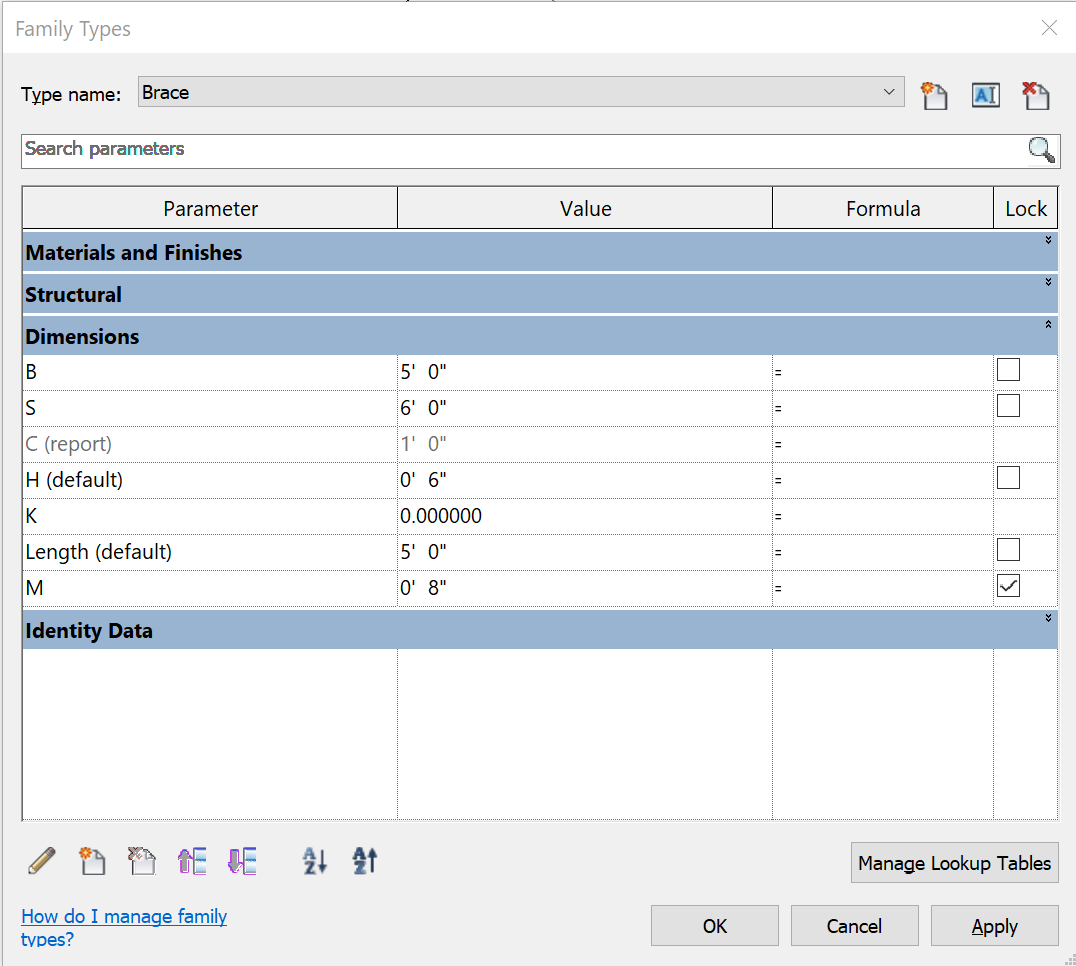

Refer to exhibit.

How many instance parameters are displayed in the Family Types dialog for a structural column family?

(Select one)

Select an answer

Refer to exhibit.

A structural designer creates a tapered wall with an exterior angle of 15° and an interior angle set to 2°.

How should the Cross-Section Definition parameters be enabled in the Type Properties dialog?

(Select one)

Set the Function parameter to Retaining.
Edit the structure and set one layer as variable.
Select the Preview button and set the view to section.
Edit the structure and enable the structural material option.

Select an answer

A structural designer is working on a model that has concrete foundations appearing on multiple views.The designer wants all foundation lines to appear in blue on all views.

How is this accomplished?

(Select one)

Select all foundations in a 3D view and assign blue to Cut Lines from the View Specific Element Graphics dialog.
Open a new 3D view and assign blue to the structural foundations Cut Lines from the Visibility/Graphics dialog.
Modify the line color of structural foundations to blue from the Model Objects tab of the Object Styles dialog.
Modify the shading of the concrete material assigned to foundations to blue from the Graphics tab of the Material Browser.

Select an answer

Refer to exhibit.

A structural designer wants to edit the visibility of several categories in the Visibility/Graphic Overrides dialog. All the categories are disabled as shown in the exhibit.

What steps must be taken to override the visibility of categories?

(Select one)

Select one element of each category. On the View Control Bar, select Temporary Hide/Isolate. Hide selected categories. Apply the Hide/Isolate to the view.
In the View tab, select the Filters command. In the Filters dialog remove any active filters on the current view.
In the Properties palette, select the active view template. In the Assign View Template dialog, set the view template to <none>.
Close the project. In the Open dialog, select detach from central. In the Detach Model from Central dialog, choose ‘Detach and discard worksets’.

Select an answer

Refer to exhibit.

The exhibit indicates four walls that have been tagged in a structural plan. The tags are currently horizontal. The structural designer requires the tags to be aligned to each wall and has attempted to change the orientation to the model. However, the tags remain horizontal.

How should the tags be aligned to the walls?

(Select one)

With all the wall tags selected, on the Modify Wall Tags panel select Align Elements Middle.
With a wall tag selected, right-click and choose Edit Family. In the Properties palette select Rotate with component.
In the Properties palette, ensure that the active view properties are displayed. Set the Orientation to Project North.
With all the wall tags selected, press the spacebar to rotate all the tags around their insertion point.

Select an answer

Refer to exhibit.

A structural designer wants pier 2 to have a rebar configuration identical to pier 3.

How is this configuration accomplished?

(Select one)

Right-click the selected rebar in pier 3, select Create Similar, and select pier 2.
Select the rebar in pier 3, select Edit Constraints, select pier 3, and select pier 2.
Highlight and then select the rebar in pier 3, click Pick New Host, and select pier 2.
After adding the rebar in pier 3, select pier 3, click Propagate Rebar, and select pier 2.

Select an answer

Refer to exhibit.

A structural designer has placed a structural connection between a structural column and two braces as shown in the exhibit.

A symbolic representation of the steel connection is displayed with no alternative connections available in the Properties palette within the Type selector drop-down menu.

What steps are required to see a detailed connection type in the Type selector drop-down menu?

(Select one)

On the Structure tab in the Connection panel, select Structural Connections. In the Structural Connection Settings dialog, add the required connections.
On the Insert tab, select Load Family. In the Load Family dialog, navigate to the Structural Connections folder and open the appropriate family.
On the View tab in the Graphics panel, select Visibility/Graphics. Navigate to the Structural Connection category and ensure that all sub-categories are checked.
On the Insert tab, select Load Autodesk Family. In the Load Autodesk Family dialog, browse to the structural connections folder and load the required family.

Select an answer

Refer to exhibit.

A structural designer wants to assign a concrete beam family in a Revit project to a specific subcategory named Grade Beams. The Line Weights and Line Patterns will need to be edited for consistent drawing outputs.

How should the concrete beams be placed on the required subcategory?

(Select one)

Select a single concrete beam. Right-click and choose Find in Project Browser. Right-click the Structural Framing type and choose Match. Select a beam with the relevant subcategory.
In the File tab, select Open. Select IFC Options. In the Import IFC Options dialog, map the Revit subcategory.
Select all the concrete beams. In the Properties palette, select the IFC Predefined Type parameter. In the Select Export As Entity dialog set the IFC building element to the required subcategory.
Select a single concrete beam. In the Modify Structural Framing tab, select Pick Family. Select the solid representing the beam. In the Properties palette, select the relevant subcategory. On the context tab, select Load into Project and close.

Select an answer

Refer to exhibit.

A detail component has been created to hide elements by using a masking region. However, when it is placed in a view, it does not hide the elements as expected.

What should be done to mask the geometry?

(Select one)

Select the detail component and select Bring to Front.
Set the view's visual style to Wireframe.
Set the view's detail level to Fine.
Right-click the detail component and override the transparency.

Select an answer

Refer to exhibit.

A structural designer is reviewing a rebar elevation view and discovers that a rebar set with 13 bars is only displaying a single rebar. With the rebar set selected, what should be used to display all the rebars in the rebar set?

(Select one)

On the Modify Rebar tab, select Edit Bars. Select the Reset All option.
On the Modify Rebar tab, select Show all Rebars in Rebar Set.
In the Properties palette, select View Visibility States. Ensure that View Unobscured is selected.
In the Properties palette, select Visibility Graphic Overrides. Ensure that the Structural Rebar category is selected.

Select an answer

Refer to exhibit.

A structural designer has placed vertical reinforcement into a round column as a rebar set.

Which reinforcement placement method has been used?

(Select one)

Free Form Rebar
By Two Points
Sketch
Expand to Host

Select an answer

Refer to exhibit.

The dimensions have been placed in a single operation by selecting the wall shown in the exhibit. With the wall selected, which option should be used in order to do this?

(Select one)

On the Annotate tab, select Tag All not tagged. In the resulting dialog, select Walls.
On the Modify Wall tab, select Activate Controls and Dimensions.
On the Annotate tab, select Detail Group.
On the Modify Wall tab, select Aligned Dimension. On the Options Bar, select Entire Walls.

Select an answer

A beam system contains five W8x10. A structural designer wants to change the second W8x10 to a W6x12. What process should they follow?

(Select one)

The change cannot be done without deleting the beam system, and then placing each beam individually.
Click on the beam system, ungroup it, and then change the second beam to W6x12.
Click on the second W8x10 and change it to W6x12.
Click on the second W8x10, unpin it, and change it to W6x12.

Select an answer

Refer to exhibit.
Exhibit 1

Exhibit 2

Exhibit 3

A structural designer assigns the following colors:
Blue to Projection Lines of the selected foundation from the View Specific Elements Graphics, as shown in Exhibit 1.
Red to the Line Graphics of Structural Foundations from the Visibility/Graphics Override dialog, as shown in Exhibit 2.
Green to Line Color of Structural Foundations from the Object Styles dialog, as shown in Exhibit 3.

Which color will the lines of the selected foundation appear?

(Select one)

Black
Red
Green
Blue

Select an answer

To restore a selection set that has been cleared, which key combination is used?

(Select one)

The Shift and Left arrow keys
The Ctrl and Down arrow keys
The Ctrl and Shift keys
The Ctrl and Left arrow keys

Select an answer

Refer to exhibit.

A structural designer is attempting to transfer the project name and project date with an architectural model that has been linked, however, the designer gets the error shown in the exhibit. What is causing the issue?

(Select one)

Worksharing has not been activated.
There is no project info in the linked models.
All of the linked models are unloaded.
The shared parameters file is not configured.

Select an answer

Refer to exhibit.

A structural designer wants to edit the Current Revision Description parameter, but the properties are disabled as shown in the exhibit.

Which of the following processes must be used to make the edit?

(Select one)

Select the viewport on the sheet. In the Properties palette, set the Phase Filter to None.
In the Properties palette, click the Revisions on Sheet edit button. Deselect the Shown in Revision Schedule checkbox.
On the View tab, select the Revisions command. In the Sheet Issues/Revision dialog, change the numbering to Per Sheet.
On the View tab, select the Revisions command. In the Sheet Issues/Revisions dialog, deselect the checkbox in the Issued column.

Select an answer

Refer to exhibit.
A structural designer has created a series of phases to demonstrate the construction sequence of a concrete basement. In the exhibit you can see a series of steel props displayed with red dashed lines. These props have been demolished. The project requirements now ask for all demolished items to appear with a solid blue appearance.

How should the appearance of the demolished items be updated?

(Select one)

On the Manage tab, click Object Style. In the Object Style dialog, expand the Structural Framing category. Select the demolished subcategory. Set the material to solid blue.
Select the steel props. On the Modify Structural Framing tab, click Paint. In the Materials Browser dialog, select a solid blue material.
On the Manage tab, click Phases. In the Phasing dialog, select the Graphic Overrides tab. Locate the Demolished Phase and select a solid blue material.
Select the steel props. In the Properties, locate the Structural Material parameter. Click the Browse button. In the Materials Browser dialog, select a solid blue material.

Select an answer

50/50 questions left unanswered

Pre-test

Pre-test

Refer to exhibit.A structural designer is applying conditional formatting to a structural framing schedule.How many rows will be highlighted in red once the formatting is applied?

The origin of a family is defined by the intersection of two reference planes. Which instance property controls this function?

When creating a wall foundation, which type property differentiates between a retaining and a bearing foundation?

A type catalog requires two files to be present in the same directory. What are the file extensions of these two files?

A structural designer is working on a workshared model.The designer made changes to elements that were borrowed from another user.Which two actions could the designer take to relinquish the changed elements? (Select two.)

A structural designer has deleted a multi-segmented dimension that was applying an equality constraint to several grids. However, the constraint is still applied.How can the constraint be viewed?

Refer to exhibit.A structural designer is creating a pile family that will be nested into a pile cap family.The pile cap family should support tagging and scheduling of the individual piles within the pile cap.Which option must be enabled?

Refer to exhibit. A structural designer has defined a scope box in a plan view to control the visual layout of the 6 grids shown in the exhibit. While reviewing the south elevation, grids 1,2 & 3 are not displayed. Which of the following options must be used to display the grids?

A structural designer is working on a model that has a linked architectural Revit file.What should the designer do to make sure the architectural file is always loaded when both files are moved together to a new directory?

Refer to exhibit.A structural designer is creating a lintel family that is embedded in a wall opening. The designer wants to use the thickness of the wall in a formula by creating a parameter called Wall Thickness.How should this parameter be added to the family?

Refer to exhibit.A structural designer is creating a pile family that will be nested into a pile cap family.The pile cap family should support tagging and scheduling of the individual piles within the pile cap.Which option must be enabled?

If two views are added to a sheet, one with a scale of 1"= 1' and 1/8" = 1’, what would the scale label display?

Refer to exhibit. A structural designer wants the area between Grid 1 and Grid 8 to have a different view range than the area between Grid 8 and Grid 6.How can this be accomplished on one structural plan view?

A structural designer wants to use an architect’s AutoCAD drawing as a guide for the proposed design. The AutoCAD file could be revised during the project, and the filename could change. On the Insert tab, which of the following tools must be used?

Refer to exhibit. The beam is attached to a round column with a 1ʹ0ʺ [305mm] diameter. What is the value of the Start Join Cutback?

Refer to exhibit. What should be used to keep only elements with Type Marks F1 or F2?

What occurs when coordinates are acquired from a linked file?

A structural designer needs to provide an Excel spreadsheet of a material takeoff to a cost estimator. How is this accomplished?

Refer to exhibit. What is the Base Level and the Top Level of the selected column?

Refer to exhibit. A structural designer is creating a connection detail between the structural framing arrangement as shown. The break symbols and connection plate have been placed as detail components but are not masking the structural framing.How should this problem be resolved?

Refer to exhibit.(The image is presented in Imperial units: 1 in = 25 mm [Metric units rounded].) A structural designer notices that Level 0 and Level 1 appear to have the same elevation even though they have spacing in between.What is one possible explanation for this?

A structural designer wants to determine if any of their structural columns have duplicate type marks. How can this be achieved?

Refer to exhibit.A set of alternate bid sets and sheet revisions has been created for a project. How would a designer customize the MARK values as shown in the exhibit?

Refer to exhibit.A structural designer is required to create a key displaying the various wall types used within the current project. The key should remain associated to the wall types so if the materials or thicknesses are updated the key should also update. How should the wall key be created?

Refer to exhibit.A structural designer is placing a callout but cannot use the Reference Other View command. Why?

Refer to exhibit. A structural designer has edited the base offset of a structural column. While applying the edit a warning dialog is displayed as shown in the exhibit. Which type of structural foundation has caused this warning dialog to display?

A Revit template is about to be upgraded to the current version. Prior to opening the template and upgrading, the structural designer has decided to scan and fix any potential elements that have become corrupt. How should the template be scanned and upgraded?

A structural designer selects a floor and expects to see the reinforcement panel displayed on the Modify | Floors tab, but the reinforcement panel is not displayed.How should the floor be modified?

Refer to exhibit. A structural designer would like to change the cut pattern for all concrete elements in all views. All the concrete elements are assigned the same structural material. The cut pattern should be changed to a solid gray fill as shown in the exhibit. Which option should be used?

A structural plan view named Plan A has two dependent views: Plan B and Plan C. What happens when elements in Plan C are tagged?

Refer to exhibit. How many instance parameters are displayed in the Family Types dialog for a structural column family?

Refer to exhibit.A structural designer creates a tapered wall with an exterior angle of 15° and an interior angle set to 2°.How should the Cross-Section Definition parameters be enabled in the Type Properties dialog?

A structural designer is working on a model that has concrete foundations appearing on multiple views.The designer wants all foundation lines to appear in blue on all views.How is this accomplished?

Refer to exhibit. A structural designer wants to edit the visibility of several categories in the Visibility/Graphic Overrides dialog. All the categories are disabled as shown in the exhibit. What steps must be taken to override the visibility of categories?

Refer to exhibit.A structural designer wants pier 2 to have a rebar configuration identical to pier 3.How is this configuration accomplished?

Refer to exhibit.A detail component has been created to hide elements by using a masking region. However, when it is placed in a view, it does not hide the elements as expected. What should be done to mask the geometry?

Refer to exhibit. A structural designer is reviewing a rebar elevation view and discovers that a rebar set with 13 bars is only displaying a single rebar. With the rebar set selected, what should be used to display all the rebars in the rebar set?

Refer to exhibit.A structural designer has placed vertical reinforcement into a round column as a rebar set.Which reinforcement placement method has been used?

Refer to exhibit.The dimensions have been placed in a single operation by selecting the wall shown in the exhibit. With the wall selected, which option should be used in order to do this?

A beam system contains five W8x10. A structural designer wants to change the second W8x10 to a W6x12. What process should they follow?

To restore a selection set that has been cleared, which key combination is used?

Refer to exhibit. A structural designer is attempting to transfer the project name and project date with an architectural model that has been linked, however, the designer gets the error shown in the exhibit. What is causing the issue?

Refer to exhibit. A structural designer wants to edit the Current Revision Description parameter, but the properties are disabled as shown in the exhibit. Which of the following processes must be used to make the edit?

Refer to exhibit.

A structural designer is applying conditional formatting to a structural framing schedule.How many rows will be highlighted in red once the formatting is applied?

A structural designer is working on a workshared model.

The designer made changes to elements that were borrowed from another user.

Which two actions could the designer take to relinquish the changed elements? (Select two.)

A structural designer has deleted a multi-segmented dimension that was applying an equality constraint to several grids. However, the constraint is still applied.

How can the constraint be viewed?

Refer to exhibit.

A structural designer is creating a pile family that will be nested into a pile cap family.The pile cap family should support tagging and scheduling of the individual piles within the pile cap.

Which option must be enabled?

Refer to exhibit.

A structural designer has defined a scope box in a plan view to control the visual layout of the 6 grids shown in the exhibit.

While reviewing the south elevation, grids 1,2 & 3 are not displayed.

Which of the following options must be used to display the grids?

A structural designer is working on a model that has a linked architectural Revit file.

What should the designer do to make sure the architectural file is always loaded when both files are moved together to a new directory?

Refer to exhibit.

A structural designer is creating a lintel family that is embedded in a wall opening. The designer wants to use the thickness of the wall in a formula by creating a parameter called Wall Thickness.How should this parameter be added to the family?

Refer to exhibit.

A structural designer is creating a pile family that will be nested into a pile cap family.The pile cap family should support tagging and scheduling of the individual piles within the pile cap.Which option must be enabled?

Refer to exhibit.

A structural designer wants the area between Grid 1 and Grid 8 to have a different view range than the area between Grid 8 and Grid 6.How can this be accomplished on one structural plan view?

A structural designer wants to use an architect’s AutoCAD drawing as a guide for the proposed design. The AutoCAD file could be revised during the project, and the filename could change.

On the Insert tab, which of the following tools must be used?

Refer to exhibit.

The beam is attached to a round column with a 1ʹ0ʺ [305mm] diameter. What is the value of the Start Join Cutback?

Refer to exhibit.

What should be used to keep only elements with Type Marks F1 or F2?

Refer to exhibit.
What is the Base Level and the Top Level of the selected column?

Refer to exhibit.

A structural designer is creating a connection detail between the structural framing arrangement as shown. The break symbols and connection plate have been placed as detail components but are not masking the structural framing.

How should this problem be resolved?

Refer to exhibit.
(The image is presented in Imperial units: 1 in = 25 mm [Metric units rounded].)

A structural designer notices that Level 0 and Level 1 appear to have the same elevation even though they have spacing in between.

What is one possible explanation for this?

A structural designer wants to determine if any of their structural columns have duplicate type marks.

How can this be achieved?

Refer to exhibit.

A set of alternate bid sets and sheet revisions has been created for a project. How would a designer customize the MARK values as shown in the exhibit?

Refer to exhibit.

A structural designer is required to create a key displaying the various wall types used within the current project. The key should remain associated to the wall types so if the materials or thicknesses are updated the key should also update.

How should the wall key be created?

Refer to exhibit.

A structural designer is placing a callout but cannot use the Reference Other View command. Why?

Refer to exhibit.

A structural designer has edited the base offset of a structural column. While applying the edit a warning dialog is displayed as shown in the exhibit.

Which type of structural foundation has caused this warning dialog to display?

A structural designer selects a floor and expects to see the reinforcement panel displayed on the Modify | Floors tab, but the reinforcement panel is not displayed.

How should the floor be modified?

Refer to exhibit.

A structural designer would like to change the cut pattern for all concrete elements in all views. All the concrete elements are assigned the same structural material. The cut pattern should be changed to a solid gray fill as shown in the exhibit.

Which option should be used?

Refer to exhibit.

How many instance parameters are displayed in the Family Types dialog for a structural column family?

Refer to exhibit.

A structural designer creates a tapered wall with an exterior angle of 15° and an interior angle set to 2°.

How should the Cross-Section Definition parameters be enabled in the Type Properties dialog?

A structural designer is working on a model that has concrete foundations appearing on multiple views.The designer wants all foundation lines to appear in blue on all views.

How is this accomplished?

Refer to exhibit.

A structural designer wants to edit the visibility of several categories in the Visibility/Graphic Overrides dialog. All the categories are disabled as shown in the exhibit.

What steps must be taken to override the visibility of categories?

Refer to exhibit.

A structural designer wants pier 2 to have a rebar configuration identical to pier 3.

How is this configuration accomplished?

Refer to exhibit.

A detail component has been created to hide elements by using a masking region. However, when it is placed in a view, it does not hide the elements as expected.

What should be done to mask the geometry?

Refer to exhibit.

A structural designer is reviewing a rebar elevation view and discovers that a rebar set with 13 bars is only displaying a single rebar. With the rebar set selected, what should be used to display all the rebars in the rebar set?

Refer to exhibit.

A structural designer has placed vertical reinforcement into a round column as a rebar set.

Which reinforcement placement method has been used?

Refer to exhibit.

The dimensions have been placed in a single operation by selecting the wall shown in the exhibit. With the wall selected, which option should be used in order to do this?

Refer to exhibit.

A structural designer is attempting to transfer the project name and project date with an architectural model that has been linked, however, the designer gets the error shown in the exhibit. What is causing the issue?

Refer to exhibit.

A structural designer wants to edit the Current Revision Description parameter, but the properties are disabled as shown in the exhibit.

Which of the following processes must be used to make the edit?
