Pre-test

Before you begin this course, test your skills by taking the following assessment to see where you stand. Keep track of your incorrect answers to know which skills you should study. You'll have a chance to take this same practice test again at the end of the course to see how you've improved.

All questions must be answered to submit your assessment.

Pre-assessment

57 questions

Refer to exhibit.

[Note: AutoCAD for Mac uses the Project Manager for sheet lists and sheet sets. The Mac terminology is included in parenthesis below. See the AutoCAD for Mac Help documentation for further details.]

A CAD designer wants to publish a sheet set (project), but Publish is disabled. What step is missing in the workflow?

(Select one)

The sheet Set (project) is locked.
The sheet set (project) is read only.
A drawing must be open to publish sheets.
No page setups were assigned to the sheets.

Select an answer

Refer to exhibit.

A CAD designer notices that the upper drawing title is in two lines, even though the grips indicate that the text width is the same as the lower title. What should the designer do to return the upper title to a single line?

(Select one)

Use Match Properties to inherit the Column property of the lower text.
Use Properties to set its Line Spacing Factor to 0.
In the MText editor, right-click and choose Remove All Formatting.
Edit the text and remove the carriage return or extra spaces causing the line break after SECTION.

Select an answer

Refer to exhibit.

In the exhibit at the left, all the computers are the same color (magenta). When a CAD designer selects them, however, the Properties palette shows the color property as "VARIES". The blocks are all on the same CPU layer and that layer's color is set to Magenta. Why would the Properties palette report "VARIES" for the color property?

(Select one)

The colors of the selected objects are not ByLayer.
Some of the selected objects have a color override.
One or more of the blocks contains objects not created on layer 0.
Some objects within the block definition have a color override.

Select an answer

Refer to exhibit.

When moving a palette to the left side of the screen, the palette changes into a box as shown in the exhibit, indicating it’s going to be docked. When this occurs, what should be done to prevent the palette from docking?

(Select one)

Press the Tab key to cycle through all the docking options.
Double-click on the docked palette's title bar to undock it.
Right-click on the palette before moving it and select the Auto-hide option.
Press and hold the Control key and release the left mouse button.

Select an answer

A drawing contains a number of blocks that are no longer used. A CAD designer would like to ensure that these blocks are removed. After purging, more blocks appear in the list of Named Items Not Used. What option should the designer have used in the PURGE dialog to purge these additional blocks at the same time?

(Select one)

Repeat Purge for all Unused Blocks
Purge Unnamed Objects
Perform Multiple Purges
Purge Nested Items

Select an answer

When adding sheets to a PUBLISH sheet list, a CAD designer notices that the imported list includes Model and Layout tabs. What can they do when adding sheets to only add Layout tabs in the future?

(Select one)

Change the Include option to Layout.
Deselect Automatically load all open drawings.
Select drawings that only contain layouts.
Select the layouts only.

Select an answer

What should be done to prevent a viewport’s scale from being changed accidentally?

Select up to 1

Freeze the viewport.
Lock the viewport.
Freeze the viewport’s layer.
Lock the viewport’s layer.

Select an answer

A CAD designer realizes that every time annotation scales are changed, that scale is applied to all the annotative objects in the drawing. What setting should be changed to prevent this?

(Select one)

Use ISOLATE command to temporarily hide annotative objects to prevent scale being assigned.
Lock the viewport that the annotative objects appear in.
Deselect the Add Scales to Annotative Objects When the Annotation Scale Changes setting.
Lock the layer that the annotative objects are on.

Select an answer

Refer to exhibit.

A CAD designer needs to make updates to an existing data-linked table, however, the Contents field in the Properties palette is disabled. How can the cell contents be changed in the table?

(Select one)

Change the Cell locking property to Unlocked.
Unlock the layer that the table is inserted on.
Remove the read-only attribute of the Excel file that the data link references.
Double-click on the cell in the table instead; cell contents can’t be edited in the Properties palette.

Select an answer

Refer to exhibit.

In the Page Setup Manager, a CAD designer notices that the Set Current option is disabled. What could be the issue?

(Select one)

The highlighted entry can’t be set current because it is the current layout.
The page setup named *Enlarged Plans* has errors that need resolved first.
No page setups are defined in the current drawing.
The Enlarged Plans layout already has a page setup assigned.

Select an answer

Refer to exhibit.

A CAD designer needs to add more spaces to a parking lot and starts the OFFSET command but doesn’t know the spacing that was used for the adjacent spaces. At this point, what workflow should the designer use?

(Select one)

Use MEASUREGEOM to measure the distance of one of the spaces, then repeat OFFSET using this distance.
Use the Through option at the Specify offset distance prompt to establish the distance.
Use the Measure option at the Specify offset distance prompt to establish the distance.
Pick two points of an existing space at the Specify offset distance prompt to establish the distance.

Select an answer

A CAD designer left a drawing open overnight and the IT department performed a patch, causing the system to reboot. What occurs when AutoCAD restarts?

(Select one)

The Drawing Recover Manager opens to aid in recovering files impacted by the reboot.
AutoCAD offers to compare versions of the drawings that had been open with their autosave files.
All the drawings that had been open at the time of the reboot are reopened automatically.
AutoCAD requires all drawings that had been opened to be recovered.

Select an answer

Refer to exhibit.

A CAD designer has imported client markups as a trace in the current drawing. During the import, Markup Assist reported that markups were detected, but when the designer turns on TRACEVIEW, the markups don’t appear to be identified. What does the designer need to do?

(Select one)

The redlines need to be selected first to display the identified markup.
Delete the trace and reimport it.
Turn on Markup Assist mode via the toolbar.
Click the settings icon and adjust transparency.

Select an answer

Refer to exhibit.

When using the COUNT command, a CAD designer notices the count of (4) Chair blocks appears to match what is shown on the plan. However, one of the chairs is shown in red which indicates there is an issue. What could the count issue be?

(Select one)

The red chair indicates that there are overlapping blocks.
The red chair is a different scale than the adjacent blocks.
The red geometry is the result of an exploded chair block.
The red chair is on a different layer than the adjacent blocks.

Select an answer

A few weeks after sending a client a shared file link, a CAD designer receives a complaint that the link is not working. What is the reason that the shared link no longer works?

(Select one)

The shared drawing had been renamed.
The shared drawing had been deleted.
The CAD designer retracted the shared link.
Shared links expire after (7) days.

Select an answer

Refer to exhibit.

The selected dimension text in the exhibit has been moved and needs to be restored to its original location. Which multifunctional grip function should be used?

(Select one)

Move with Dim Line
Stretch
Move Text Only
Reset Text Position

Select an answer

Refer to exhibit.

A CAD designer copies a tree elevation from another drawing to the clipboard. While pasting it on a new elevation, the insertion point for the tree is at (A) instead of at the base of the tree trunk (B) as preferred. What should the designer do to ensure that the objects paste as preferred?

(Select one)

Use the Copy with Basepoint command.
Use the Paste to Original Coordinates command.
Use Paste As Block instead of Paste.
While pasting, right-click and choose a new base point.

Select an answer

A CAD designer wants the Properties palette to remain open (visible) but also wants to use a much of the screen as possible for the drawing canvas. What palette settings can be changed to achieve this?

(Select one)

Change the palette’s background color to match the drawing area.
Anchor the palette to the side of the screen.
Turn off the Auto-hide feature.
Apply a transparency to the palette.

Select an answer

Refer to exhibit.

When hovering the cursor over annotative text, what does the badge beside the cursor indicate about the object?

(Select one)

It has more than one annotation scale assigned.
It has one or more unused annotation scales assigned.
It is annotative but currently has no annotation scales assigned.
Its annotation scales don’t match the current annotation scale.

Select an answer

A CAD designer is required by the client to use an SHX font for text, but needs to add italic text to a drawing. The SHX font does not have an italic option. What are the designer’s options?

(Select one)

Change the Direction property of the text.
Edit the SHX file to enable text to be italicized.
Change the oblique angle property of the text.
Use a TrueType font instead of the SHX font.

Select an answer

A CAD designer has applied lineweights to the layers but doesn’t have a quick way to toggle the lineweight display on or off. What change should be made to the interface to make it easier to toggle lineweight visibility?

(Select one)

Create a command alias in the ACAD.PGP file to toggle the lineweight display.
Use the CUI editor to make the Lineweight toggle visible on the status bar.
Customize the status bar to include the Lineweight toggle.
Use the LWDISPLAY command.

Select an answer

A CAD designer needs to combine the content within an attached xref into the current drawing. The xref's layers should remain distinct from those in the current drawing. What xref method will accomplish this?

(Select one)

Bind the xref using the Bind option.
Explode the xref.
Detach the xref and insert the dwg as an exploded block.
Bind the xref using the Insert option.

Select an answer

While comparing two drawings, a CAD designer would like to import selected objects from the compared drawing into the current drawing. What is the most efficient workflow that could be used?

(Select one)

Attach the compared drawing as an xref and bind it to import objects.
Use DesignCenter to import the changes.
Use the Import Objects feature.
Toggle the visibility to only show the compared drawing and use the clipboard to copy/paste objects into the current drawing.

Select an answer

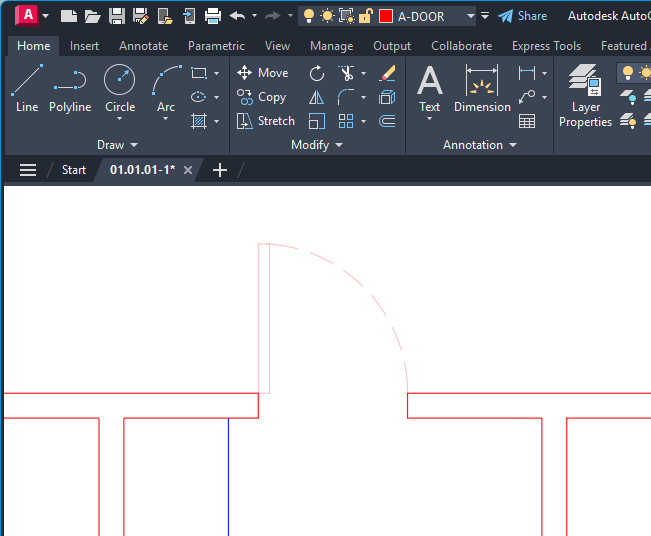

After combining a collection of lines and arcs into a polyline with the PEDIT command, a CAD designer notices that its dashed linetype creates some undesired gaps at a number of the vertices. What can the designer do to remedy this?

(Select one)

Change objects to Continuous linetype before using PEDIT, then change polyline to Dashed.
Explode the polyline and rejoin the objects using the Linetype Gaps option set to No.
Use the LINETYPE command to reload the Dashed linetype and reapply it to the new polyline.
Use the Properties palette to disable the polyline’s linetype generation.

Select an answer

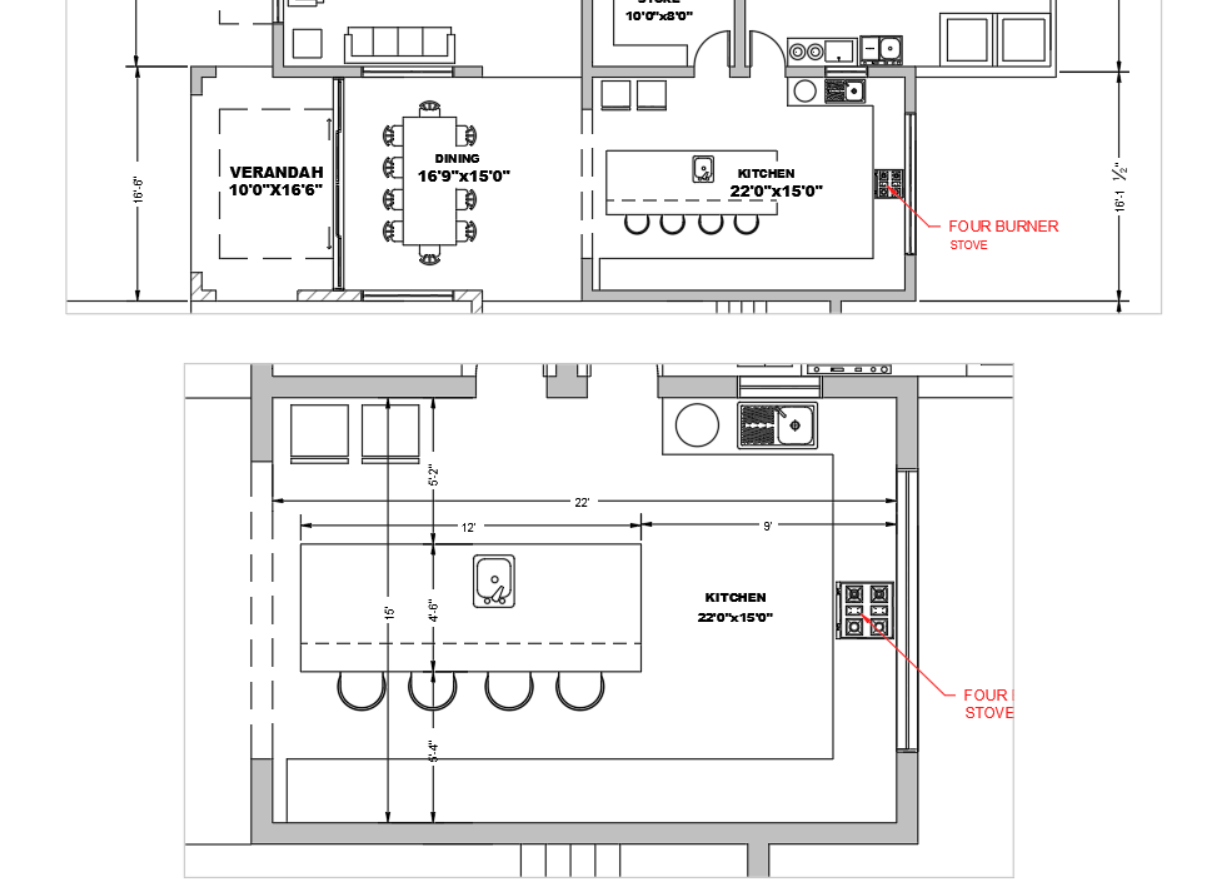

An annotative multileader is visible in two viewports, each with a different annotation scale. The multileader’s text is being cut off by the viewport and needs to be repositioned. How should a CAD designer fix the multileader in one viewport without affecting it in the other viewport?

(Select one)

Use the Properties palette to move the multileader text.
Use grip-stretch to move the multileader text.
Modify the location of the multileader using the MOVE command in that viewport.
Use Synchronize Multi-scale Positions to fix the issue.

Select an answer

Refer to exhibit.

A CAD designer needs to create a layer filter that includes architectural layers (with an A- prefix) that contain objects. The filter should also be defined to accommodate any architectural layers brought in in the future from attached or bound references. After defining the initial filter shown in the exhibit, the preview is showing some unwanted layers. Which of the following filter definitions will provide the desired results?

(Select one)

Select an answer

The current drawing is missing a number of predefined annotation scales. What should be done to resolve this?

(Select one)

Insert another drawing that contains the missing annotation scales.
Use the SCALE command.
Use the Reset option in the SCALELISTEDIT command.
Use the AUDIT command to correct any missing annotation scale issues.

Select an answer

Refer to exhibit.

A CAD designer has selected the desk block in cubicle 6063 and notices that the grip representing the block’s insertion point is oddly located. They would prefer the base point to be in the corner. What does this tell the designer about the block?

(Select one)

The block was created from the clipboard using Paste as Block.
The block was inserted incorrectly.
The block is corrupt and needs audited.
The block's base point is incorrect in the block definition.

Select an answer

Refer to exhibit.

While grip editing a line with Dynamic Input enabled, three boxes are displayed as shown in the exhibit. What workflow should be used to enter a new value for box #1?

(Select one)

Press the Tab key repeatedly until the focus is on box #1.
Press Control+Tab repeatedly until the focus is on box #1.
Press and hold the Shift key to suspend the grip edit and click in box #1.
Press the Space bar repeatedly until the focus is on box #1.

Select an answer

Refer to exhibit.

While using the MEASUREGEOM command, a CAD designer notices that the orange horizontal dimension does not show a distance. What does this indicate about the geometry?

(Select one)

The two angles on the left side of the gasket opening are not truly 90 degrees.
The vertical lines of the gasket opening are not parallel.
The horizontal lines of the gasket opening are not parallel.
The linework of the opening contains gaps.

Select an answer

Refer to exhibit.

In the floor plan shown, the visual properties of the walls and doors should match. Both layers, A-WALL and A-DOOR, have the color property set to CYAN. Which layer property should be modified so that the objects on both layers appear the same?

(Select one)

Color
Transparency
Linetype
Freeze

Select an answer

Refer to exhibit.

A CAD designer needs to add a table to a drawing and would like to set all the column and row settings before inserting the table. The Insert Table dialog, however, is only letting the designer specify the number of columns or column width, not both. Similarly with rows. What table insertion option should be changed to permit presetting all the desired column and row settings in the Insert Table dialog?

(Select one)

Use the Specify insertion point option.
Edit the selected table style to allow this flexibility.
Insert the table and make the adjustments after the table is placed.
Select a different table style.

Select an answer

After restoring the World Coordinate System, a CAD designer notices that a previously created User Coordinate System (UCS) is no longer available. What step did the designer forget to take?

(Select one)

Save the UCS.
Select a UCS origin.
Save the drawing.
Assign the UCS.

Select an answer

A CAD designer has attached a PDF as an underlay and wants the PDF to plot without the frame around it. What workflow should be used?

(Select one)

Put the PDF's frame on a non-plotting layer.
Adjust the PDFFRAMES variable to Display but not plot frames.
Deselect the Plot underlay frames option in the PLOT dialog.
Re-attach the PDF and select the Plot Borders option.

Select an answer

Refer to exhibit.

When hovering over one of a polyline's grips, the dimensions displayed in the exhibit indicate what setting is turned on?

(Select one)

Dimensional constraints have been applied to the polyline.
MEASUREGEOM quick mode is enabled.
Dynamic Input is enabled.
Tooltips are turned on.

Select an answer

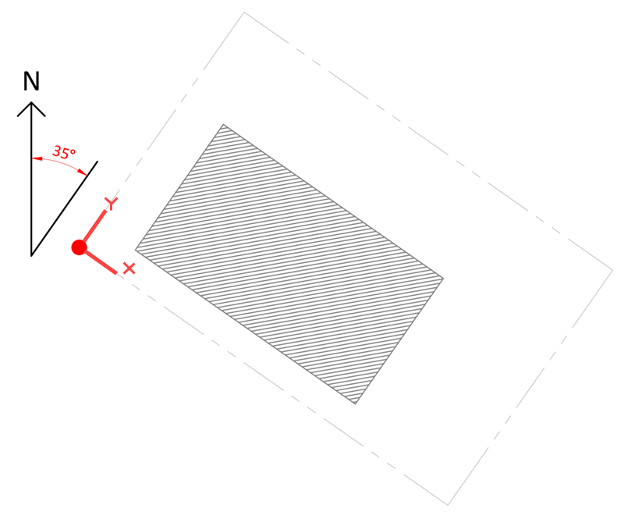

Refer to exhibit.

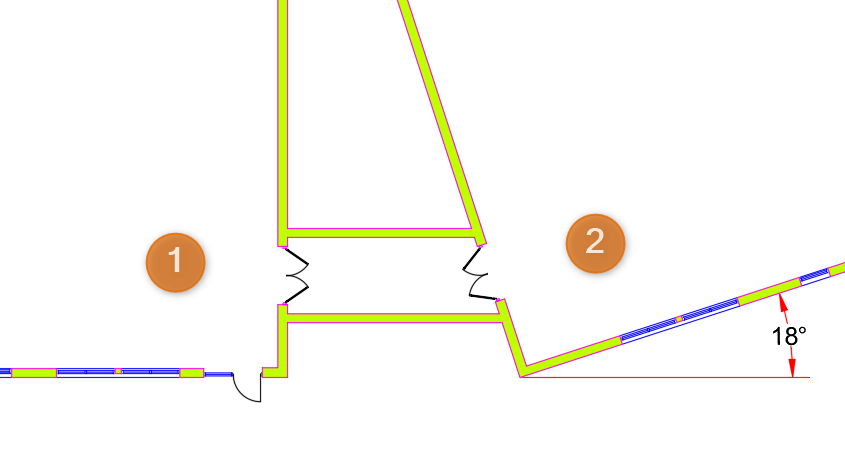

A CAD drawing of a new office shows has a wing that is angled at 18 degrees off of horizontal. To simplify laying out walls orthogonally in the wing and to be able to easily switch between the two areas, what workflow should the CAD designer use?

(Select one)

Rotate the world coordinate system to 18 degrees.
Create and save a custom UCS for the angled wing.
Turn on Polar tracking and set the angle to 18 degrees.
Rotate the plan temporarily as needed while working on each area.

Select an answer

A company has a particular block that designers are encouraged to use frequently to bring in standard settings. What workflow should a CAD designer use to make this block easier to insert in the future?

(Select one)

After inserting the block initially, right-click on its thumbnail and select Copy to Favorites.
Insert the block the first time from the Favorites tab so that it will be added to that tab.
Select the thumbnail and choose Allow Docking from the right-click menu of the BLOCKS palette.
After inserting the block initially, drag and drop the thumbnail onto the Favorites tab.

Select an answer

Refer to exhibit.

A CAD designer has received feedback that the company no longer wants to use the hand-lettered type font in tables. What should the designer do to ensure that existing and future tables comply with this request?

(Select one)

Edit the table style and change the Data cell style to use a different text style.
Explode the table and change the text style of all hand-lettered text.
Edit the table style and change the Data cell style to use a different font file.
Use SelectSimilar to select all tables. Use the Properties palette to change the text style.

Select an answer

A CAD designer opens a drawing. In a previous session, a field was created that reflected the length of a polyline. Now the field appears as a row of hash marks, instead of a length. What can the designer deduce from this scenario?

(Select one)

The field’s format is incorrect.
The field’s layer is locked and must be unlocked in order to be updated.
The line that the field was linked to has been erased.
The line has been modified and the field needs updating.

Select an answer

Refer to exhibit.

[Note: AutoCAD for Mac uses the Project Manager for sheet lists and sheet sets. The Mac terminology is included in parenthesis below. See the AutoCAD for Mac Help documentation for further details.]

A CAD designer has used Sheet Set Manager (Project Manager) to create the sheet index shown in the exhibit and prefers that the sheets are shown their respective discipline subsets (groups). What setting should be used when creating the sheet list (layout)?

(Select one)

Use Show Subheader option
Change the data type in the Column Settings.
Change the order in the Column Settings.
Use Populate from sheet selection.

Select an answer

Refer to exhibit.

While using the WBLOCK command to export a block to a drawing file, a CAD Designer notices that the Base point option is disabled. What would cause this?

(Select one)

The current drawing’s base point will be used as the exported drawing’s base point.
The current drawing needs to be saved before WBLOCK can export the block.
No block has been selected in the dialog yet.
The block’s base point is already defined in the block definition.

Select an answer

Refer to exhibit.

The holes for the original gasket design were created as a rectangular array. In the revised gasket, the upper-right hole needs to be positioned where the yellow centerlines are shown. What should the CAD designer do to update the array?

(Select one)

Use the ERASE command to remove the upper-right circle from the array, and draw a circle at the new location.
Delete the existing array and recreate it without the upper-right circle. Draw a new circle in the new location.
Use the STRETCH command, selecting the circle with a crossing polygon, to move the circle to the new location.
Use the Control key to select the circle in the array and use its grip to move it to the new location.

Select an answer

The BOUNDARY command is taking a long time to create a boundary in a complex drawing. What should a CAD designer do to improve the efficiency of this command?

(Select one)

Change the boundary object type to Region.
Purge and audit the current drawing.
Create a Boundary set by selecting fewer objects to be analyzed.
When picking an internal point, pick a point closer to the potential boundary objects.

Select an answer

Refer to exhibit.

What AutoCAD feature is indicated by the green dotted reference lines shown in the exhibit?

(Select one)

User Coordinate Systems
Snap Mode
Dynamic Input
Object snap tracking

Select an answer

To ensure that a referenced drawing is always visible when its host drawing is referenced into another drawing, what external reference setting should a CAD designer use?

(Select one)

Path: Relative
Reference type: Attach
Path: Absolute
Reference type: Overlay

Select an answer

While working in a paper space viewport, a CAD designer wants to create a new layer that should not appear in any other viewport. What method should be used?

(Select one)

In the viewport, use the Layer Properties Manager palette to create the new layer. Right-click on the layer created and choose VP Freeze Layer > In All Viewport Except Current.
In the viewport, use the Layer Properties Manager palette to create the new layer. Create the layer in the viewport; by default, it will be frozen in all other viewports.
In the Layer Properties Manager palette, right-click and choose New Layer VP Frozen in All Viewports.
Switch to model space, and use the Layer Properties Manager palette to create the new layer. Freeze it in model space, then switch back to the paper space layout and thaw it in the viewport it should appear in.

Select an answer

A CAD designer restores a file from an online backup of a past project but is unable to open it. What should be done?

(Select one)

Use the Drawing Recovery Manager to attempt to open the corrupt file.
Attach the corrupt drawing as an xref to another drawing.
Use the RECOVER command to attempt to fix the file.
Use the AUDIT command to attempt to fix the file.

Select an answer

Refer to exhibit.

A CAD designer notices that an arc (represented in red in the exhibit) is missing from a drawing. Which two Arc methods could be used to draw the missing arc? (Select two.)

Select up to 2

Continue
Start, Center, Length
Start, End, Direction
Start, Center, Angle
Center, Start, Length

Select an answer

Refer to exhibit.

A CAD designer needs to transfer project files and folders from the company network (left path in exhibit) to a laptop (right path in exhibit). One of the xrefs is missing from the main drawing but all the files transferred successfully. How should the references' paths have been set up to accommodate this scenario?

(Select one)

The references need to be reloaded in the main drawing,
Relative paths should have been used to accommodate the different drive letter and parent folders.
The references should have been bound to the main drawing before transferring the files to the laptop.
Their reference types should have been set to attach instead of overlay.

Select an answer

After importing a PDF, a CAD designer notices that the dashed lines in the PDF were converted into many individual line segments. What setting should the designer select when importing PDFs to avoid this issue in the future?

(Select one)

Convert solid fills to hatches.
Infer linetypes from collinear dashes.
Import linetypes automatically.
Join lines and arc segments.

Select an answer

After creating a transmittal using eTransmit and sending it to a client, the client reports that they are unable to open any of the drawings. What step did the CAD designer miss while creating the transmittal?

(Select one)

Did not discover what drawing file format the client needed.
Did not check the Include Fonts option.
Did not bind all the external references.
Did not choose the Place All Files in One Folder option.

Select an answer

While drawing a line, which two symbols would be used to enter relative polar coordinates? (Select two.)

Select up to 2

!
@
;
<
*

Select an answer

To eliminate the need to add annotation scales to annotative objects when a viewport’s scale changes, what setting should a CAD designer enable before changing the viewport scale?

(Select one)

Select all annotative objects and choose Add Current Scale.
Turn on the Add Scales to Annotative Objects When the Annotation Scale Changes option.
Set the viewports Display Locked setting to No.
Turn on the Show Annotative Scale: Always option.

Select an answer

The Quick Access toolbar (Tool bar) can be customized by using what method? [Note: Mac terminology appears in parenthesis.]

(Select one)

Click the Customize icon in the lower right corner.
Right-click on the Quick Access Toolbar (Tool bar) and choose Customize.
Left-click and drag any tool from the ribbon and place it on the Quick Access toolbar (Tool bar).
Double-click on any empty space on the Quick Access toolbar (Tool bar).

Select an answer

What workflow should a CAD designer use to make it possible to edit grips simultaneously?

(Select one)

Press and hold the Shift key down while selecting grips.
Right-click on each grip as it’s selected.
Select grips using the STRETCH command.
Press and hold the Control key down while selecting grips.

Select an answer

What two MVIEW options will create a non-rectangular viewport? (Select two.)

Select up to 2

Polygonal
Polyline
Fit
Object
New

Select an answer

While reviewing a drawing, a CAD designer notices that the objects in a paper space viewport are a different color than they are in model space. What would cause this to occur?

(Select one)

The paper space layout does not have a page setup assigned.
A color override has been applied to the layers in the viewport.
A color override has been applied to the objects in the viewport.
The objects’ color has been set to ByBlock

Select an answer

57/57 questions left unanswered

Pre-test

Pre-assessment

Refer to exhibit. A CAD designer notices that the upper drawing title is in two lines, even though the grips indicate that the text width is the same as the lower title. What should the designer do to return the upper title to a single line?

Refer to exhibit. When moving a palette to the left side of the screen, the palette changes into a box as shown in the exhibit, indicating it’s going to be docked. When this occurs, what should be done to prevent the palette from docking?

When adding sheets to a PUBLISH sheet list, a CAD designer notices that the imported list includes Model and Layout tabs. What can they do when adding sheets to only add Layout tabs in the future?

What should be done to prevent a viewport’s scale from being changed accidentally?

A CAD designer realizes that every time annotation scales are changed, that scale is applied to all the annotative objects in the drawing. What setting should be changed to prevent this?

Refer to exhibit. A CAD designer needs to make updates to an existing data-linked table, however, the Contents field in the Properties palette is disabled. How can the cell contents be changed in the table?

Refer to exhibit. In the Page Setup Manager, a CAD designer notices that the Set Current option is disabled. What could be the issue?

Refer to exhibit. A CAD designer needs to add more spaces to a parking lot and starts the OFFSET command but doesn’t know the spacing that was used for the adjacent spaces. At this point, what workflow should the designer use?

A CAD designer left a drawing open overnight and the IT department performed a patch, causing the system to reboot. What occurs when AutoCAD restarts?

Refer to exhibit. A CAD designer has imported client markups as a trace in the current drawing. During the import, Markup Assist reported that markups were detected, but when the designer turns on TRACEVIEW, the markups don’t appear to be identified. What does the designer need to do?

Refer to exhibit. When using the COUNT command, a CAD designer notices the count of (4) Chair blocks appears to match what is shown on the plan. However, one of the chairs is shown in red which indicates there is an issue. What could the count issue be?

A few weeks after sending a client a shared file link, a CAD designer receives a complaint that the link is not working. What is the reason that the shared link no longer works?

Refer to exhibit. The selected dimension text in the exhibit has been moved and needs to be restored to its original location. Which multifunctional grip function should be used?

A CAD designer wants the Properties palette to remain open (visible) but also wants to use a much of the screen as possible for the drawing canvas. What palette settings can be changed to achieve this?

Refer to exhibit. When hovering the cursor over annotative text, what does the badge beside the cursor indicate about the object?

A CAD designer is required by the client to use an SHX font for text, but needs to add italic text to a drawing. The SHX font does not have an italic option. What are the designer’s options?

A CAD designer has applied lineweights to the layers but doesn’t have a quick way to toggle the lineweight display on or off. What change should be made to the interface to make it easier to toggle lineweight visibility?

A CAD designer needs to combine the content within an attached xref into the current drawing. The xref's layers should remain distinct from those in the current drawing. What xref method will accomplish this?

While comparing two drawings, a CAD designer would like to import selected objects from the compared drawing into the current drawing. What is the most efficient workflow that could be used?

After combining a collection of lines and arcs into a polyline with the PEDIT command, a CAD designer notices that its dashed linetype creates some undesired gaps at a number of the vertices. What can the designer do to remedy this?

An annotative multileader is visible in two viewports, each with a different annotation scale. The multileader’s text is being cut off by the viewport and needs to be repositioned. How should a CAD designer fix the multileader in one viewport without affecting it in the other viewport?

The current drawing is missing a number of predefined annotation scales. What should be done to resolve this?

Refer to exhibit. A CAD designer has selected the desk block in cubicle 6063 and notices that the grip representing the block’s insertion point is oddly located. They would prefer the base point to be in the corner. What does this tell the designer about the block?

Refer to exhibit. While grip editing a line with Dynamic Input enabled, three boxes are displayed as shown in the exhibit. What workflow should be used to enter a new value for box #1?

Refer to exhibit. While using the MEASUREGEOM command, a CAD designer notices that the orange horizontal dimension does not show a distance. What does this indicate about the geometry?

Refer to exhibit.In the floor plan shown, the visual properties of the walls and doors should match. Both layers, A-WALL and A-DOOR, have the color property set to CYAN. Which layer property should be modified so that the objects on both layers appear the same?

After restoring the World Coordinate System, a CAD designer notices that a previously created User Coordinate System (UCS) is no longer available. What step did the designer forget to take?

A CAD designer has attached a PDF as an underlay and wants the PDF to plot without the frame around it. What workflow should be used?

Refer to exhibit. When hovering over one of a polyline's grips, the dimensions displayed in the exhibit indicate what setting is turned on?

Refer to exhibit. A CAD drawing of a new office shows has a wing that is angled at 18 degrees off of horizontal. To simplify laying out walls orthogonally in the wing and to be able to easily switch between the two areas, what workflow should the CAD designer use?

A company has a particular block that designers are encouraged to use frequently to bring in standard settings. What workflow should a CAD designer use to make this block easier to insert in the future?

Refer to exhibit. A CAD designer has received feedback that the company no longer wants to use the hand-lettered type font in tables. What should the designer do to ensure that existing and future tables comply with this request?

A CAD designer opens a drawing. In a previous session, a field was created that reflected the length of a polyline. Now the field appears as a row of hash marks, instead of a length. What can the designer deduce from this scenario?

Refer to exhibit. While using the WBLOCK command to export a block to a drawing file, a CAD Designer notices that the Base point option is disabled. What would cause this?

Refer to exhibit. The holes for the original gasket design were created as a rectangular array. In the revised gasket, the upper-right hole needs to be positioned where the yellow centerlines are shown. What should the CAD designer do to update the array?

The BOUNDARY command is taking a long time to create a boundary in a complex drawing. What should a CAD designer do to improve the efficiency of this command?

Refer to exhibit. What AutoCAD feature is indicated by the green dotted reference lines shown in the exhibit?

To ensure that a referenced drawing is always visible when its host drawing is referenced into another drawing, what external reference setting should a CAD designer use?

While working in a paper space viewport, a CAD designer wants to create a new layer that should not appear in any other viewport. What method should be used?

A CAD designer restores a file from an online backup of a past project but is unable to open it. What should be done?

Refer to exhibit. A CAD designer notices that an arc (represented in red in the exhibit) is missing from a drawing. Which two Arc methods could be used to draw the missing arc? (Select two.)

After importing a PDF, a CAD designer notices that the dashed lines in the PDF were converted into many individual line segments. What setting should the designer select when importing PDFs to avoid this issue in the future?

After creating a transmittal using eTransmit and sending it to a client, the client reports that they are unable to open any of the drawings. What step did the CAD designer miss while creating the transmittal?

While drawing a line, which two symbols would be used to enter relative polar coordinates? (Select two.)

To eliminate the need to add annotation scales to annotative objects when a viewport’s scale changes, what setting should a CAD designer enable before changing the viewport scale?

The Quick Access toolbar (Tool bar) can be customized by using what method? [Note: Mac terminology appears in parenthesis.]

What workflow should a CAD designer use to make it possible to edit grips simultaneously?

What two MVIEW options will create a non-rectangular viewport? (Select two.)

While reviewing a drawing, a CAD designer notices that the objects in a paper space viewport are a different color than they are in model space. What would cause this to occur?

Refer to exhibit.

A CAD designer notices that the upper drawing title is in two lines, even though the grips indicate that the text width is the same as the lower title. What should the designer do to return the upper title to a single line?

Refer to exhibit.

When moving a palette to the left side of the screen, the palette changes into a box as shown in the exhibit, indicating it’s going to be docked. When this occurs, what should be done to prevent the palette from docking?

Refer to exhibit.

A CAD designer needs to make updates to an existing data-linked table, however, the Contents field in the Properties palette is disabled. How can the cell contents be changed in the table?

Refer to exhibit.

In the Page Setup Manager, a CAD designer notices that the Set Current option is disabled. What could be the issue?

Refer to exhibit.

A CAD designer needs to add more spaces to a parking lot and starts the OFFSET command but doesn’t know the spacing that was used for the adjacent spaces. At this point, what workflow should the designer use?

Refer to exhibit.

A CAD designer has imported client markups as a trace in the current drawing. During the import, Markup Assist reported that markups were detected, but when the designer turns on TRACEVIEW, the markups don’t appear to be identified. What does the designer need to do?

Refer to exhibit.

When using the COUNT command, a CAD designer notices the count of (4) Chair blocks appears to match what is shown on the plan. However, one of the chairs is shown in red which indicates there is an issue. What could the count issue be?

Refer to exhibit.

The selected dimension text in the exhibit has been moved and needs to be restored to its original location. Which multifunctional grip function should be used?

Refer to exhibit.

When hovering the cursor over annotative text, what does the badge beside the cursor indicate about the object?

Refer to exhibit.

A CAD designer has selected the desk block in cubicle 6063 and notices that the grip representing the block’s insertion point is oddly located. They would prefer the base point to be in the corner. What does this tell the designer about the block?

Refer to exhibit.

While grip editing a line with Dynamic Input enabled, three boxes are displayed as shown in the exhibit. What workflow should be used to enter a new value for box #1?

Refer to exhibit.

While using the MEASUREGEOM command, a CAD designer notices that the orange horizontal dimension does not show a distance. What does this indicate about the geometry?

Refer to exhibit.

In the floor plan shown, the visual properties of the walls and doors should match. Both layers, A-WALL and A-DOOR, have the color property set to CYAN. Which layer property should be modified so that the objects on both layers appear the same?

Refer to exhibit.

When hovering over one of a polyline's grips, the dimensions displayed in the exhibit indicate what setting is turned on?

Refer to exhibit.

A CAD drawing of a new office shows has a wing that is angled at 18 degrees off of horizontal. To simplify laying out walls orthogonally in the wing and to be able to easily switch between the two areas, what workflow should the CAD designer use?

Refer to exhibit.

A CAD designer has received feedback that the company no longer wants to use the hand-lettered type font in tables. What should the designer do to ensure that existing and future tables comply with this request?

Refer to exhibit.

While using the WBLOCK command to export a block to a drawing file, a CAD Designer notices that the Base point option is disabled. What would cause this?

Refer to exhibit.

The holes for the original gasket design were created as a rectangular array. In the revised gasket, the upper-right hole needs to be positioned where the yellow centerlines are shown. What should the CAD designer do to update the array?

Refer to exhibit.

What AutoCAD feature is indicated by the green dotted reference lines shown in the exhibit?

Refer to exhibit.

A CAD designer notices that an arc (represented in red in the exhibit) is missing from a drawing. Which two Arc methods could be used to draw the missing arc? (Select two.)
