Creating a Rebar Schedule

00:07

PRESENTER: Really all a schedule is is just another view.

00:10

That's all.

00:11

Nothing fancy here, unless, of course,

00:13

you're used to the drafting days where we drew an actual grid

00:17

and used not so smart text to make our schedules.

00:21

Well, in that case, this is quite spectacular.

00:25

The objective of this video is to create a schedule view

00:27

and fill it on our sheet.

00:29

Of course, if you've been following along,

00:31

open your Medical Center parking garage,

00:33

I'm going to grab Parking Garage underscore 04.

00:39

To make a schedule, we'll first go to the View tab.

00:44

On the View tab, go to the Create panel.

00:47

On the Create panel, we'll find Schedules,

00:50

then we'll go to Schedule Quantities.

00:54

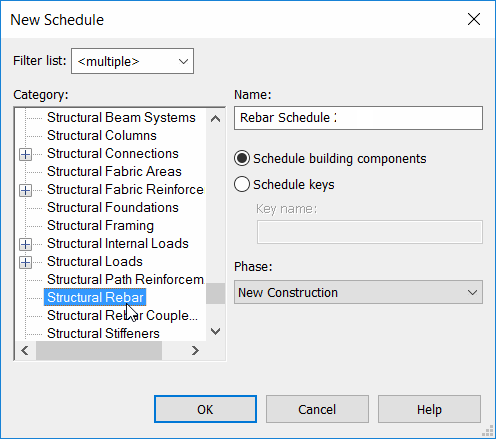

The first thing we do is find a category.

00:56

So I want to scroll down to I find Structural Rebar.

01:01

Click OK.

01:05

First thing I'm going do is I want to grab Rebar Number.

01:08

Notice I just typed "re" and it jumped down to Rebar Number,

01:11

because I'm cool like that.

01:13

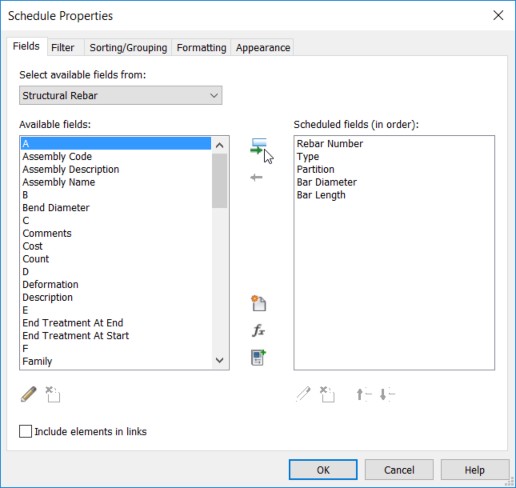

I select Rebar Number, I click the Add Parameters button.

01:19

I'm going to find Type, I'm going to add that.

01:26

I'm going to grab a bar diameter,

01:30

I'm going to grab bar length by holding down my Control key.

01:34

I'm going to click my Add button here.

01:38

I'm going to find the Partition, I'm going to add that.

01:45

Now, I could move partition up or down.

01:47

So for example, if I wanted partition

01:49

between type and bar diameter, I could just move it up.

01:55

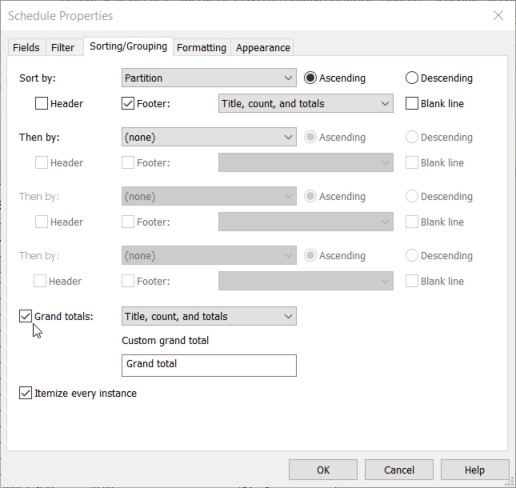

Now, let's go to Sorting and Grouping.

02:01

I want to actually sort it by partition.

02:05

And I want to add a footer.

02:09

For my footer, I'll grab title count and total.

02:12

It's funny though, because if I don't click on Grand Totals,

02:16

it doesn't show up.

02:18

One more thing I do want to do, though,

02:19

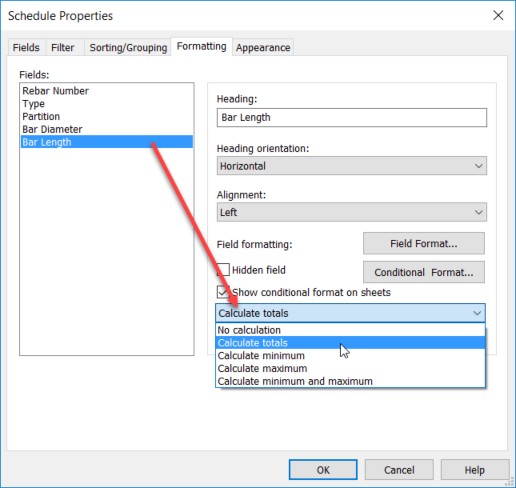

is I want to go to Formatting, I want to select Bar Length.

02:26

In the field formatting area, notice that it

02:30

says no calculation here.

02:31

I want to change that.

02:33

Shut the dropdown and let's calculate the totals.

02:37

Click OK.

02:40

Here's our rebars.

02:42

So that's going to add up the total length of rebar

02:45

we have for a level three slab and it's

02:48

going to add it up for our west edge level too.

02:56

We have our number, we have our type.

02:58

Now, let's see if this long schedule will fit on a sheet.

03:02

We can close out of our schedule.

03:05

In the private browser, we're going

03:07

to right click on Sheets All, we're going to go to New Sheet.

03:13

Let's click OK.

03:15

Click Rebar Schedule, click and drag it over.

03:19

Pick a spot like right about here, just like that.

03:25

Notice she's too long but also notice if we Zoom in here,

03:28

there's a little gap button, it's

03:31

called split schedule table.

03:33

Click that.

03:37

Drag it down a little bit.

03:44

We'd have to split it again.

03:47

Now, notice once we split it into three,

03:50

we can grab this grip here.

03:52

We can sort of drag that up.

03:55

We can drag it down.

03:58

Also, what we can do is if we have

04:01

items that are kind of overlapping like bar diameter,

04:04

we can drag this over and it kind of widens it.

04:09

So we can build in quite a bit of room into these schedules.

04:14

Now, there's a chance you don't want this schedule

04:16

on a sheet at all, so you wouldn't have

04:17

to go through this exercise.

04:20

But this is it.

04:21

This is how you actually make a schedule, put it on a sheet.
