Adding Rebar Shapes (2:49)

00:06

ERIC WING: Yes, Revit does have predefined Rebar shapes.

00:10

It's just a matter of finding them and making sure they're

00:12

loaded into our project.

00:13

I'm not going to actually add anything

00:15

to our model in this video.

00:17

I just want to show you how Revit looks at Rebar

00:19

and how it's loaded into our project.

00:22

To start, let's go to the Structure tab.

00:25

We see the reinforcement drop down.

00:28

We see we have our reinforcement cover settings.

00:30

We looked at our settings and our reinforcement numbers.

00:34

Now that doesn't tell us what the Rebar actually is, right?

00:37

So we're not going to see our shapes until we actually

00:40

try to apply them to an object.

00:42

So if I select this column here, now we'll

00:45

see our Rebar tab here.

00:46

Let's go ahead and click on Rebar.

00:50

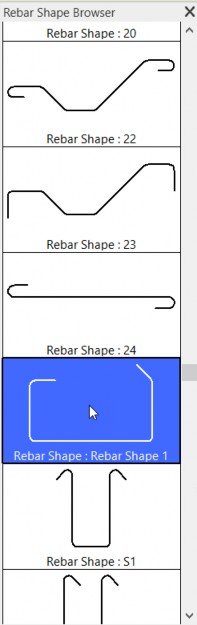

Now we have our Rebar shape browser.

00:54

Remember when we made this little Rebar shape,

00:56

we added one to it.

00:58

Actually, it didn't, because that's a common shape.

00:60

It just duplicated the shape that we could have used.

01:03

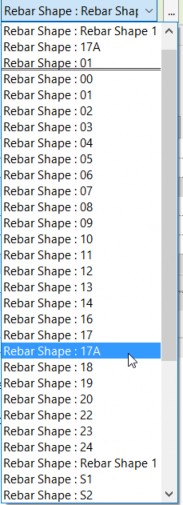

But if we look over here, we'll see we have Rebar shape double

01:06

Now if we scroll down here, we have a bunch

01:09

of different Rebar shapes.

01:10

What are those?

01:11

If we click on this little button here,

01:13

it's going to simply just toggle our Rebar shape browser.

01:18

Now our Rebar shapes are loaded into our project.

01:21

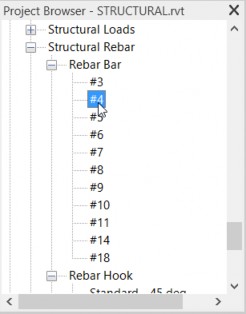

So if we scroll down to our families,

01:25

scroll all the way down to Rebar shape, here they are.

01:31

Now if we double click on one of these,

01:33

it's going to open up our type properties,

01:35

but there's not a lot of properties

01:36

that we can look at other than one, allowable Rebar types,

01:41

right?

01:42

So some shapes like type number three here it's pretty small.

01:46

So if we click Edit, we can disallow a certain type

01:50

of Rebar to use a shape.

01:52

So we can uncheck whatever we want here.

01:54

So click Cancel.

01:57

There's not too many other variables we can change.

01:60

Hit Cancel here.

02:02

If you don't have any of these reinforcements in our project,

02:06

what we can do is we can go to the Insert tab,

02:11

we can load family.

02:14

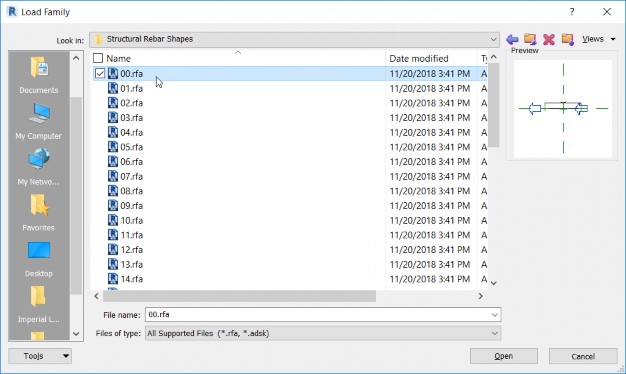

Now if we scroll down, we can find structural Rebar shapes.

02:18

So if we double click on structural Rebar shapes,

02:22

here they are.

02:23

Here's our Rebar shapes.

02:25

We could load those into our project as we see fit.

02:27

Notice we have that 17A here.

02:29

We thought we were being clever by creating a new Rebar shape,

02:32

but it already was in there.

02:35

Hit Cancel here, and skip a couple of times.

02:42

There you go.

02:42

That's how Revit deals with Rebar families and Rebar

02:46

shapes.
