Configuring Rebar Bends (5:47)

00:07

ERIC WING: As we are starting to see,

00:09

there are quite a few settings that

00:11

can be configured to get the results we want.

00:14

The objective of this video is to create default bends

00:17

for the ends of our reinforcing.

00:20

Let's jump into our structural project.

00:23

Let's go to Section Footing 13.

00:26

The first thing I want to do is on the Structure tab,

00:29

on the Reinforcement panel, click the Reinforcement

00:33

pull-down.

00:36

Let's go to Reinforcements Settings.

00:39

Now under General, notice that we can't change it here.

00:42

But when you include hooks in Ribar Shape definition,

00:46

and include end treatments in Ribar

00:48

Shape definition either Welded or Threaded,

00:52

we can't change things here, like I

00:53

said but these come into play when we start placing Rebar.

00:58

Reinforcement rounding.

01:01

So our bar length, it's going to just round it

01:03

to a specific increment or we can uncheck Use Reinforcement

01:07

Rounding, and we click OK.

01:10

It's going to gray it out.

01:12

So let's use reinforcement rounding.

01:14

Let's click OK.

01:17

Now, what we didn't see anywhere was End Treatments or bends.

01:20

What we need to do is find a family for that.

01:23

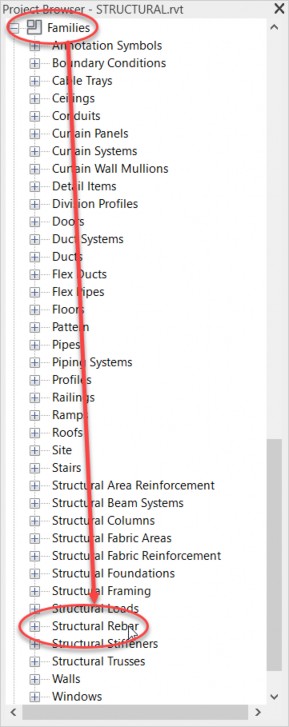

So in the project browser, let's scroll

01:25

down until we get to Families, all right.

01:28

In the Families, make sure annotation symbols

01:31

are collapsed.

01:32

That always gets in the way.

01:34

That scroll down until we find Structural Rebar.

01:38

Drilling to Structural Rebar, notice that we

01:41

have three categories here--

01:43

Rebar Bar-- here's our Rebar gauges, right.

01:46

We can change that.

01:49

That's Rebar Bar.

01:51

We have our hooks, which we're going to add a couple of hooks.

01:54

And we have our Rebar Shapes.

01:56

These are the shapes that we found in our little Rebar

01:59

browser over here, OK.

02:01

So what we want to do is add a Rebar hook.

02:04

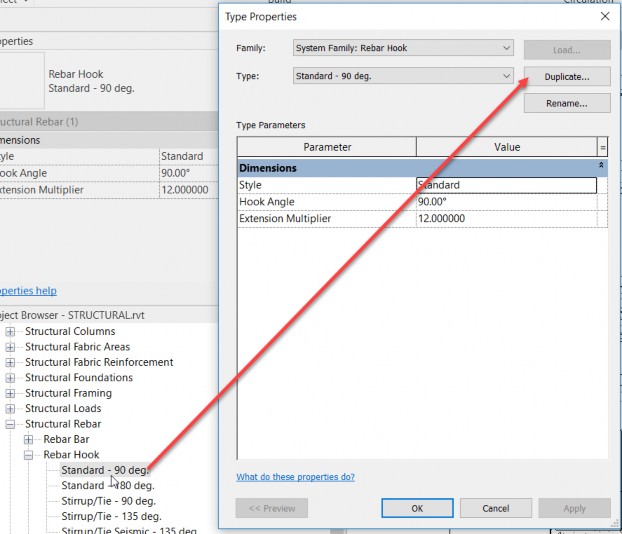

So let's double click on Standard 90 degree.

02:08

Now, let's click Duplicate.

02:12

Let's call it Standard 45 degree,

02:16

and get rid of the number two.

02:18

Hit OK.

02:20

The hook angle will be 45 degrees.

02:24

Tab, click OK.

02:27

There it is.

02:29

Double click on Stirrup/Tie 90 degree.

02:31

Notice that we have a style here,

02:33

Stirrup/Tie or we have Standard.

02:36

The other one is Standard, this one is Stirrup/Tie.

02:39

This makes a difference when we start placing Rebar.

02:43

Let's click Duplicate.

02:46

First Stirrup/Tie, we'll make that 45 degrees.

02:52

Then we'll hit OK.

02:55

The hook angle will be 45 and we'll keep the extension

02:59

multiplier at six.

03:01

We can actually change those with our Rebar in place.

03:04

You'll see.

03:06

Click OK.

03:09

Excellent.

03:10

Now, select your footing.

03:16

Click Rebar.

03:23

Now, what we want to do is click on Sketch Rebar.

03:29

Now, Revit wants us to select the host again.

03:32

I'm not sure why, but go ahead and select your host.

03:37

OK, now, notice that we're free style sketching in Ribar.

03:44

We can change our style right here from Standard

03:46

to Stirrup or Tie.

03:48

Let's keep it on Standard for now.

03:50

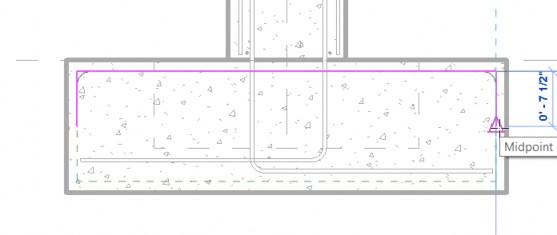

Let's click a point here and click a point here.

03:55

You will come down and pick a point right about there.

03:59

Over here, come straight down, I'll

04:01

pick a point there, and escape a couple of times.

04:04

Wherever we stop driving is going to be either considered

04:06

our start or our end.

04:07

So for hook, it's start instead of none.

04:11

Notice that only our standard hooks

04:14

are going to show up because our style of Rebar is Standard.

04:18

So if we go Standard

04:21

that it pushes it outside of our foundation,

04:23

but we have this little toggle hook orientation

04:26

button, which toggle it inward.

04:29

Hook it end, go Standard 180.

04:33

Toggle that, it goes up.

04:35

Change it to Standard 45.

04:38

Goes down.

04:40

So see how we can change our end treatments, right.

04:44

So if we double click on Standard 45 degree,

04:49

change our extension multiplier to six, hit OK.

04:55

It's going to shorten that.

04:56

Both of these hooks though, let's go ahead

04:58

and change it to 180.

05:01

This one will be 180.

05:06

Now, we can click Finish.

05:07

And it's actually added a Ribar shape

05:10

and it's giving us our Rebar hook.

05:11

Now, if you select this Rebar, notice that you cannot change

05:15

the style.

05:17

If you add a sketch, now, if we change

05:20

our style to Stirrup or Tie, hook at start, here's

05:27

our Stirrup/Tie.

05:28

Hooks.

05:30

Hit Escape a couple of times.

05:32

Just hit the red x.

05:33

We can cancel out of that.

05:34

We can keep the one in there that we want.

05:36

Quitting cannot be undone.

05:38

Are you sure you want to discard edits?

05:39

Yeah, it's fine.

05:41

Now, the task of placing our Rebar

05:44

is going to be an easy one.
