Add Structural Elements in Advance Steel

00:00

DEEPAK MAINI: Our objective in this part of the course

00:03

is to add structural steel elements.

00:06

We are going to start with adding vertical bracings.

00:09

Next, we are going to add joists.

00:12

Let's get straight into Advance Steel now.

00:14

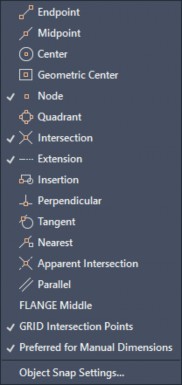

In AutoCAD, there are a number of different object snap

00:17

options, but in Advance Steel we only leave

00:20

node, intersection, extension, and grid

00:23

intersection points turned on.

00:24

Any other object snap that we need,

00:26

we can activate them temporarily by doing a shift-right click.

00:32

Also make sure your object snap tracking is turned on

00:35

and so is the polar tracking.

00:38

The polar tracking should be set to 90, 180, 270 degrees.

00:43

I'm now ready to start modeling my bracing.

00:46

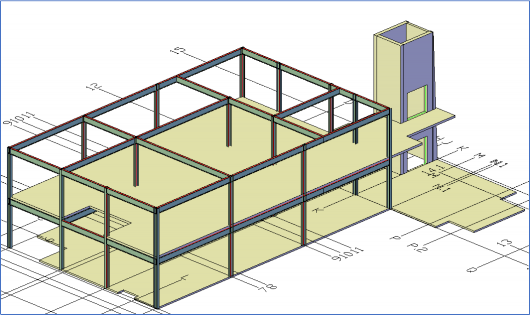

For that, I'll first turn off the visibility

00:48

of the concrete elements.

00:50

I'll pick one of the slabs, one of the walls,

00:53

and then I can right-click anywhere in the blank area

00:56

and use this option called Select Similar.

00:59

Once all the concrete elements are selected,

01:01

I'm now going to go into the Quick Views

01:03

category of the Advance Steel tool palette

01:06

and click this button here that lets me turn off

01:09

all the selected elements.

01:14

Before I place vertical bracing, I

01:16

want to mention that in Advance Steel

01:18

there are certain commands that are dependent on the UCS

01:22

orientation.

01:23

In our case if you need to place vertical bracings,

01:26

we need to modify our UCS and we need

01:28

to align it with the location or the phase,

01:30

where we want to place the vertical bracings.

01:33

I'm going to do that by going to the UCS category,

01:37

and then I'll use this tool here that says UCS three points.

01:43

The first point which is the origin point of the UCS,

01:46

I'm going to use the grid intersection

01:48

point here or the node point of this section.

01:52

The x-direction is going here and I'm

01:54

using my polar tracking, and the y-direction

01:58

is going vertically up.

01:59

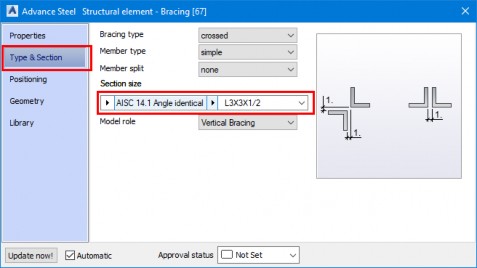

With this, I'm ready to place the vertical bracing.

02:03

To place the bracing, the tool is available on the Home ribbon

02:06

tab under the Extended Modeling ribbon panel.

02:10

When I move this tool, it's prompting

02:12

me to specify the first point.

02:14

I'm going to use the midpoint of this column.

02:18

I'll hold down the shift key and the right mouse button,

02:21

and then it shows me the temporary object snaps.

02:27

For the second point I'm going to orbit the model,

02:31

and I'm going to use this midpoint here.

02:36

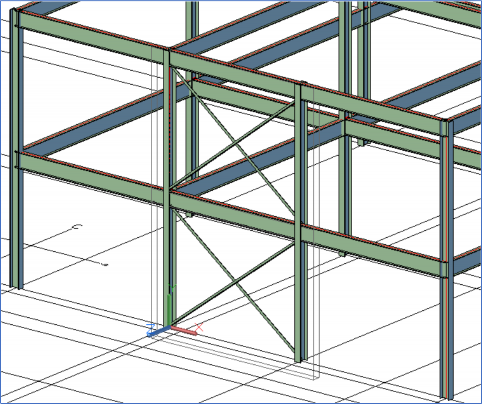

And with this, the vertical bracing is placed.

02:40

I'm going to speed up the process here,

02:43

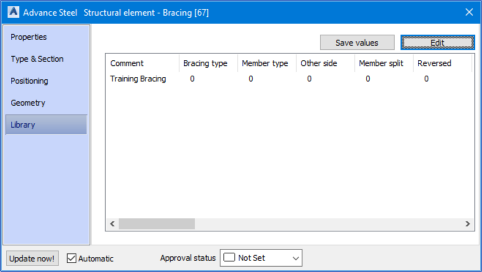

but all the values that you need to create vertical bracings

02:46

are available in the handout of the exercise section.

02:58

And that's the vertical bracing created.

03:03

Next, I'm going to place the joists.

03:05

But before I do that, I'm going to change the display

03:07

type of all these structural steel sections, by going

03:10

to the Selection Filters category

03:12

and selecting this option called Beam.

03:17

Once I've selected all of these sections,

03:19

I'll right-click and select this option

03:21

called Advance Properties.

03:24

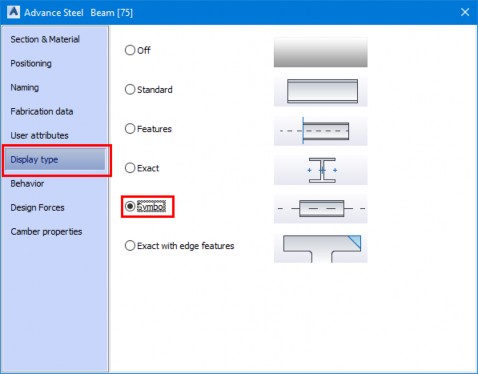

I'll go to the Display Type tab and change it to symbol.

03:32

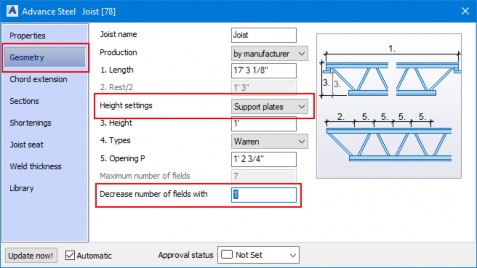

Let's now place the joist.

03:34

The tool to place the joist is also

03:35

available on the Home ribbon tab under the Extended Modeling

03:38

panel.

03:42

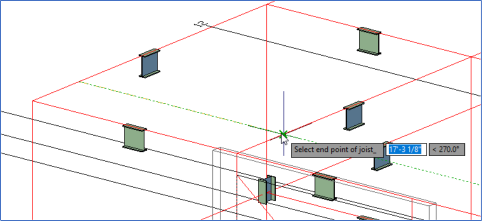

I'm going to use a combination of object

03:44

snaps and object snap tracking to place this joist.

03:50

And again, I'm going to speed up the process here.

03:53

All the parameters that you need to create this joist

03:55

are available in the handout section of the exercise.

03:59

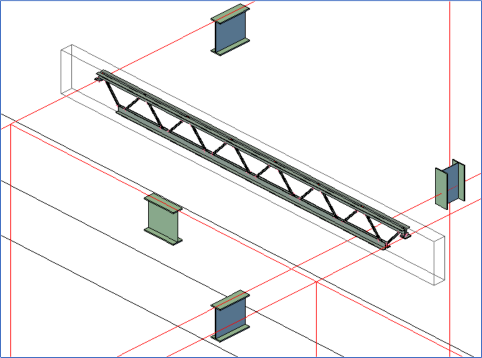

I'm going to place another joist here.

04:11

You will notice that there are these boxes around joist

04:14

and the bracings.

04:16

These boxes are called connection boxes.

04:19

Advance Steel treats elements such as floor joist

04:23

and bracing as connections, that's

04:25

because there are multiple sections placed together.

04:28

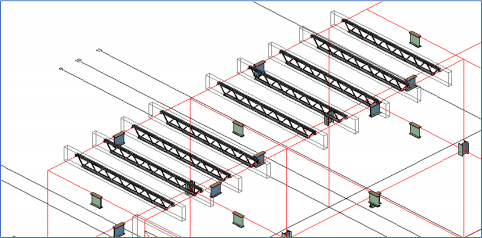

Next, I'm going to use the AutoCAD copy command to copy

04:31

both of these joists.

04:43

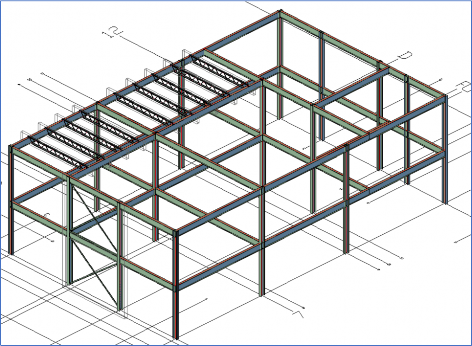

And that's our model created.

04:44

As you could see, really smart tools available in Advance

04:48

Steel to create these complex elements.

04:50

I now need to restore the original display style

04:53

for the structural sections.

04:55

I'm going to select all the steel beams,

04:58

and then I'm going to go into the Quick Views category

05:02

and select this option called Standard Presentation.

05:09

Make sure you save this model.
