Synchronize Revit with Advance Steel

00:00

DEEPAK MAINI: Our objective in this part of the course

00:03

is to synchronize Autodesk Revit changes with Autodesk Advance

00:06

Steel.

00:10

As we know, design is a pretty fluid state.

00:14

So the engineers and structural designers

00:17

keep changing the design on a regular basis, which

00:20

means that our Autodesk Advance Steel detail model

00:23

and documentation is out of sync.

00:26

And this is where the power of Autodesk Revit and Advance

00:29

Steel interoperability comes into picture.

00:31

So let's see how we can synchronize our Advance Steel

00:34

model with the changes from Autodesk Revit.

00:37

Let's get straight into Revit first.

00:40

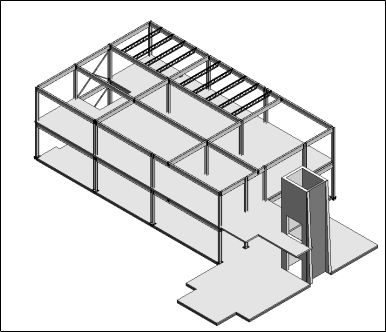

In this model, the structural engineers and designers

00:42

have made some changes.

00:44

So let's start with exporting the structural steel

00:46

data from this Revit model.

00:49

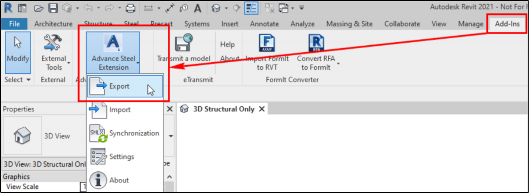

If you remember, we're going to the Add-Ins tab.

00:52

And Under Advance Steel Extension ribbon panel,

00:54

we click on Advance Steel Extension fly out.

00:57

And we are going to click on Export.

01:02

We'll click OK.

01:04

And we can now save this as smlx file.

01:11

Just remember to make sure that nothing

01:13

is selected before you export the smlx file.

01:15

Otherwise, only the selected elements will be exported.

01:19

Let us now switch over to Advance Steel.

01:22

This is our detailed model, and I'm

01:24

going to go into the Export and Import tab.

01:27

And under the Revit ribbon panel,

01:28

I'll click on this option called Synchronize.

01:33

I will load the version two smlx file.

01:37

Now this is a really powerful workflow.

01:40

In this workflow we are going to see every single element that

01:44

has been added, deleted, or modified in Revit.

01:48

So before I do anything else, I'm

01:49

going to expand the dialog box by clicking on the Filter

01:52

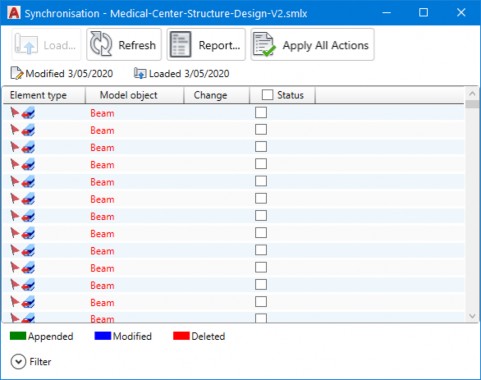

option A brilliant feature of this dialog

01:56

box is that the elements are displayed color coded.

01:59

So for example, the elements that are deleted

02:02

are displayed in red color, as shown in beams here,

02:06

the elements that are appended are displayed in green color,

02:10

and the elements that are modified

02:12

are displayed in blue color.

02:14

In my case, I'm going to start with clearing all the filters.

02:19

Now the first thing I want to check

02:20

is if the engineers deleted any beams or columns

02:24

from the design model in Revit.

02:25

So I'll select Beam, Column, Deleted, Apply Filter.

02:32

Now it has come up with this massive list of beams

02:35

that were deleted.

02:36

This doesn't make sense because we did not

02:38

see these many sections deleted in the Revit model.

02:42

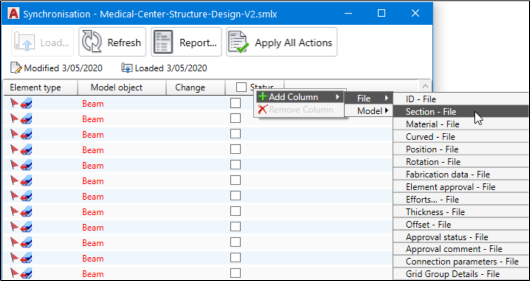

So what we are going to do is display

02:44

a column from the smlx file, which

02:46

is the section file column.

02:48

The section file column is blank because these

02:50

are the sections that are not available in the smlx file.

02:54

Let's now display the same column

02:55

from the Advance Steel model.

02:58

And we can see that we've got all these sections that

03:00

are available in the model that are not in the smlx file.

03:04

Most of these sections are the sections

03:06

of the joist that we have added, and also

03:08

the vertical briefings.

03:11

So I'm happy with this.

03:12

I don't have to worry about these.

03:14

Next I'm going to look at all the beams and columns that

03:16

have been appended.

03:20

I can see that there are two beams that have been appended.

03:24

And that's why you can see that these beams are available

03:26

in the section file column, which means that they are

03:29

in the smlx file but not in the section column, which means

03:32

that they are not in the model.

03:34

Now this is important for me because I

03:36

want to bring in these beams.

03:38

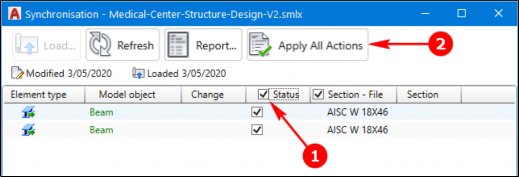

I'm going to select the status of both these beams,

03:41

and I'm going to click on Apply All Actions.

03:44

And I can straight away see that there

03:46

are two beams added to the model and they're

03:49

available right here, one and two.

03:52

Next I want to see all the beams and columns that

03:55

have been modified.

03:59

As you can see nothing is displayed

04:02

in the dialog box, which means that there

04:03

were no beams or columns that were modified in the Revit

04:07

model.

04:08

So you can see this powerful workflow lets us synchronize

04:12

our structural design created in Revit with the detail

04:15

model in Advance Steel.

04:18

Let's now copy some connections.

04:21

I'll start copying this end plate connection.

04:30

And similarly at this location you

04:32

can go and add a double side clip angle joint.

04:37

This is the model in which I've added all the connections

04:39

to the new beams that we synchronized from Revit.

04:43

And now if I go into my Document Manager,

04:46

if I expand the Details category and under Up to date category,

04:51

we've got these files that are up to date.

04:54

However, there are some drawings available in the Update

04:57

required category.

04:58

These are the drawings that would

04:60

have changed because of us synchronizing the new beams.

05:04

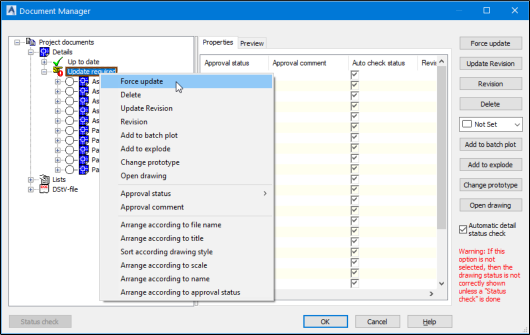

So if I right-click on any of these files

05:07

I've got this option called Force Update.

05:09

This option is used when the drawings have not

05:12

been released for fabrication so I can update these drawings.

05:15

We also have an option called Update Revision.

05:18

This option is used when the files are released

05:20

for fabrication and we need to update them with that revision.

05:25

In our case, I'm going to force update

05:28

the update required category.

05:29

So it'll update all the drawings in that category.

05:37

What you saw in this course was a really powerful workflow

05:41

where we were able to synchronize changes

05:43

from the design model in Revit with our detail

05:46

model in Advance Steel.

05:48

And then we also were able to quickly update

05:50

all our documentation.
