Import BIM Data into Advance Steel

00:00

DEEPAK MAINI: In this third objective,

00:02

we are going to import the structural BIM

00:04

data that we exported from Revit into Advance Steel.

00:07

So for that, I'm going to start Advance Steel program.

00:14

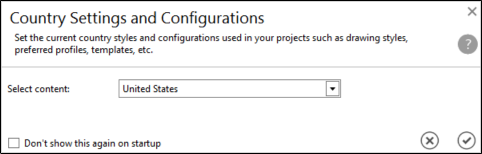

When you run Advance Steel, the Country Settings

00:17

and Configurations dialog box is displayed.

00:19

This dialog box allows you to select the country content

00:22

that you want to start with.

00:25

In my case, I'm going to leave it to United States.

00:28

If you do not want this dialog box to be re-displayed,

00:31

you can select this checkbox here that says

00:34

"Don't show this again on startup."

00:38

To import the structural BIM data,

00:40

I need to first start a new file.

00:43

To start a new file, I'm going to go to the Quick Access

00:46

toolbar available on the top left of the Advance Steel

00:49

window, and then I'll click on the New button.

00:55

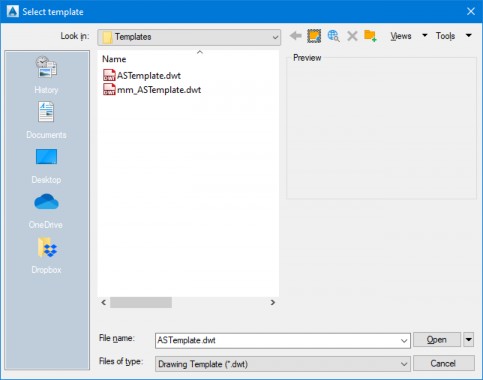

In the Select Template dialog box,

00:56

I'm going to double click on the ASTemplate.dwt file,

00:60

because that's the Imperial template.

01:07

As you can see here, a new file is started.

01:10

I do not like my command line to be floating like this.

01:13

So first I'm going to dock the command line.

01:19

Advance Steel is out-of-box ready for BIM data

01:23

exchange with Revit.

01:24

So we don't need to install any plugin for Advance Steel.

01:28

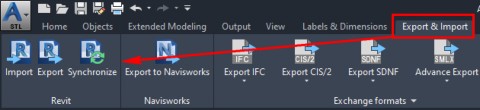

I can simply go to the Export & Import tab,

01:34

and then on the Revit panel I've got these tools

01:37

to import, export, or synchronize

01:39

BIM data from Revit.

01:40

In this case, we are going to use the Import tool

01:43

because we are bringing in the structural BIM

01:45

data for the first time.

01:51

When I invoke the Import command,

01:52

it displays the Open dialog box.

01:54

I've already browsed to the folder where I saved my SMLX

01:58

file, as you might remember from the previous objective,

02:02

this file was saved in the SMLX format and it was only 8 KB.

02:06

All I'm going to do now is double-click on this SMLX file

02:10

and the process of importing the structural BIM data from Revit

02:13

will start.

02:19

During the import process, if there are some sections or some

02:22

materials that cannot be automatically mapped,

02:25

you get the option to manually map those sections

02:28

or materials.

02:29

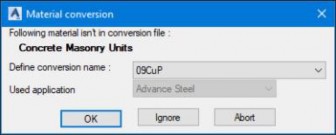

In our case, we have got this material

02:31

called concrete masonry units, which was used in Revit.

02:34

It is not automatically mapped in Advance Steel.

02:37

I can now click on this Define conversion name dropdown list

02:41

and I can manually map this material.

02:49

I'm going to use the concrete material.

02:51

I'll click OK.

02:55

For the default wall material, it is automatically

02:58

mapped to concrete.

02:59

I'm happy with this.

02:60

I'll click OK.

03:03

And same thing with the cast in place gray.

03:06

I'm going to leave it as concrete.

03:10

This one as well.

03:14

And that's it.

03:15

So it has imported the structural BIM data.

03:18

Now because Advance Steel is an AutoCAD based

03:20

program, the AutoCAD commands and the navigation tools work

03:23

in Advance Steel as well.

03:25

For example, in this case, I want to do a Zoom Extents.

03:28

I will simply double-click my real mouse button

03:31

and it does Zoom Extents.

03:34

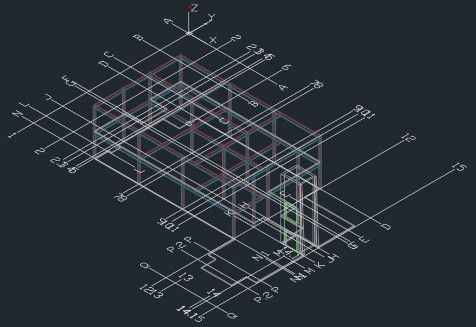

Currently, this model is displayed

03:36

in the wireframe mode.

03:37

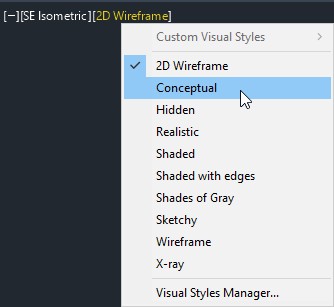

I'm going to change my display from 2D

03:39

wireframe to conceptual.

03:45

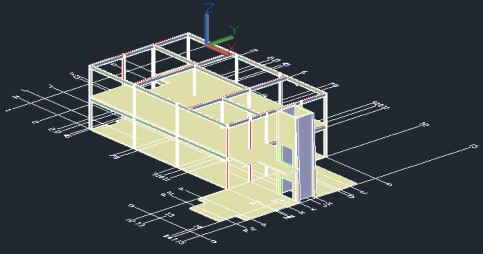

And I can now see the structural BIM data.

03:47

We can also see all the grids imported along

03:50

with the slabs, structural walls, and structural sections.

03:57

Now the good thing is that it's not

03:58

a dumb model that Advance Steel has imported,

04:01

it's a smart model.

04:03

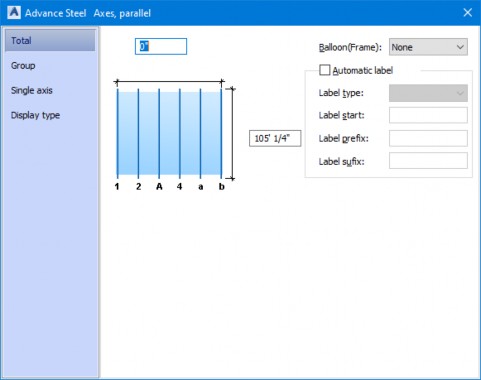

If I double-click on any of these grid lines,

04:07

they're imported as proper grid lines in Advance Steel.

04:11

Similarly, if I double-click on this concrete slab,

04:15

it is imported as a concrete slab.

04:18

The material is automatically mapped to concrete

04:20

because that's what we defined while mapping

04:22

when we were importing the structural BIM data.

04:27

Similarly, if I double-click on this concrete wall,

04:31

it's set to a wall component.

04:37

Similar to Revit, we can hold down

04:39

the Shift key and the real mouse button,

04:41

and we can orbit the model.

04:44

If I double-click on this structural section here,

04:48

it is now imported as a proper structural beam.

04:52

The section type and the size is automatically

04:55

mapped to the right section type and size in Advance Steel.

04:59

In this case, as you can see here,

05:00

it's an AISC 14.1 w, w 18 by 46 size.

05:07

If I go to Revit, it's the same section here.

05:16

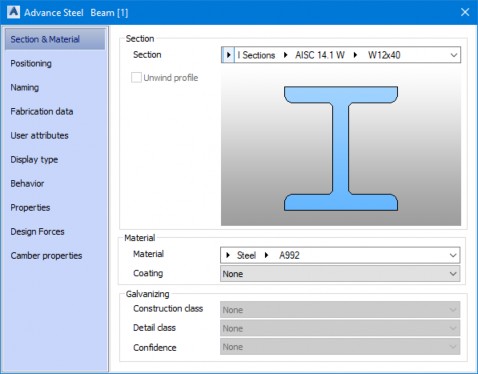

Similarly if I double-click on this column here,

05:19

it's w 12 by 40 size I section.

05:24

In Revit, that's the exact same section.

05:31

So the fantastic feature here is Advance Steel

05:34

lets you import the structural BIM data from Revit,

05:37

and it automatically maps the sections to the right section

05:40

sizes, which means that we are now ready to start working

05:44

with this structural BIM data imported from Revit,

05:47

and we can use some really smart tools inside Advance Steel

05:50

to add additional sections, add connections, and also start

05:54

detailing the structure model.

05:57

Because we are going to use this file in the next course,

05:60

let's save it.

06:08

I'm going to save this file with the name Medical Center.

06:19

So that's my Advance Steel file saved.

06:21

I can now use it in Course 2.
