Validate and Import Advance Steel Data

00:00

DEEPAK MAINI: Our objective in this course

00:03

is to validate and import Advance Steel data

00:06

into Autodesk Revit.

00:09

In more structural designs, the engineers

00:11

want to regularly validate what steel detailers are doing.

00:15

Until a few years back, it was very

00:17

hard to do because there was no way

00:20

to easily validate a detailed model in Autodesk Revit.

00:24

All this changed with the introduction of Advance Steel

00:26

a few years back.

00:28

Advanced Steel gives us this really powerful workflow

00:31

where we can export SMLX file of the detail model

00:34

from Advance, Steel and then we can validate that model

00:37

against the design model in Revit.

00:40

Another situation is where the engineers

00:42

need to deliver a fabrication level model with elements

00:46

of LOD 400 or above.

00:48

In that case, the engineers can import

00:51

the structural connections-- which are the fabrication level

00:53

connections-- from Advance Steel straight into Revit.

00:57

Now, please note that these connections can

00:59

be created in Revit as well.

01:01

However, engineers prefer importing them

01:04

from the detail model.

01:05

That makes the workflow a lot easier for them.

01:08

So let's get straight into Advance Steel

01:10

to look at this workflow.

01:13

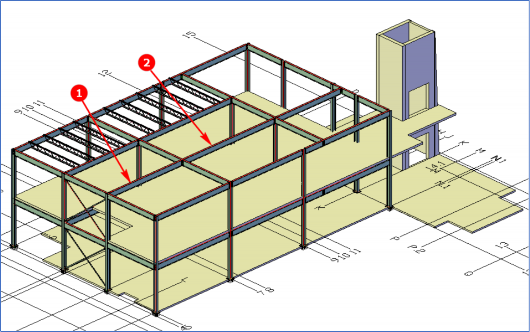

This is our fabrication level detail model in Advance Steel.

01:17

I'm not going to export the SMLX file of this model.

01:20

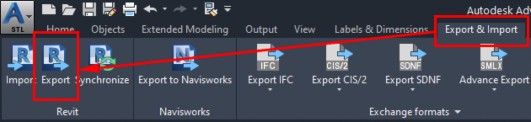

For that, I'll go to the Export and Import ribbon tab.

01:24

And under the Revit ribbon panel, I'll click on Export.

01:30

As you can see here, I can export SMLX file

01:33

from Advance Steel as well.

01:34

I'm going to rename this.

01:38

Let's now switch over to Revit to validate this model.

01:42

Now, to validate the detail model,

01:44

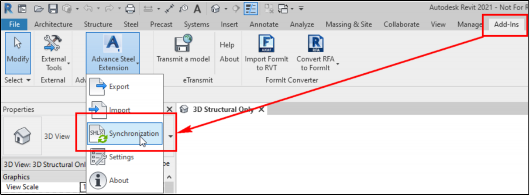

I'm going to go into the Add-ons tab.

01:47

And under the Advanced Steel Extension ribbon panel,

01:50

I'll click on Advance Steel Extension fly out.

01:54

Now, this time I'm going to click on Synchronization.

01:58

Now, the process is very similar to what

02:00

we saw in Advance Steel.

02:02

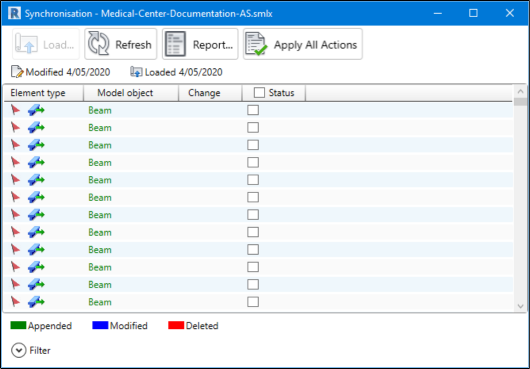

I'll start with loading the SMLX file.

02:08

And now I'm going to expand the dialog

02:10

box by clicking on Filter.

02:13

I want to start with checking all the beams and columns that

02:16

have been added to the model.

02:18

For that, I'll first click on Clear All.

02:22

Column, Beam, Appended.

02:25

Apply Filter.

02:26

I can see this huge list of beams that have been added.

02:30

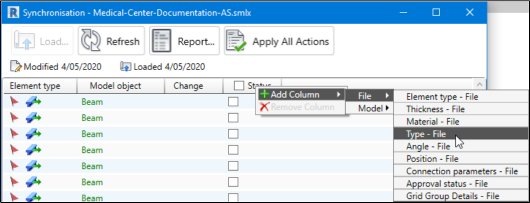

And similar to Advance Steel, let's

02:32

go and add some additional columns in the dialog box.

02:39

We can now see all these sections

02:41

that are available in the file that are not in the model.

02:45

These sections, if you remember, are

02:47

the sections of our joists and vertical bracings.

02:52

I want to import all these sections in the Revit model.

02:57

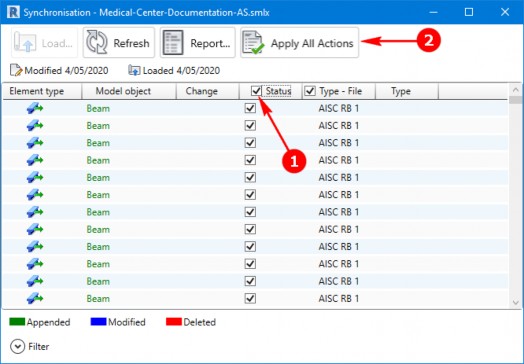

So I'll click on the Status column

02:59

and I'll click on Apply All Actions.

03:03

You will notice that these sections are now getting

03:05

added to the Revit model.

03:08

I'm going to speed up the process a bit

03:10

to save some time.

03:16

Here we go.

03:17

Next I want to find out all the beams and columns that

03:19

have been deleted.

03:24

As you could see, nothing has been deleted.

03:26

Similarly, I want to find out all the beams and columns that

03:29

have been modified.

03:33

Now, I can see a big list of these sections that

03:35

are modified but if you look at these sections,

03:38

the change is mainly the material change.

03:42

And that could be because the material

03:43

name could be different in Revit and Advance Steel.

03:46

So we can ignore this.

03:49

What you saw here is a really powerful workflow

03:52

to validate the detail model with the design model.

03:56

The other thing that we talked about

03:57

was, if the engineers need to deliver a fabrication level

04:01

model with elements of LOD 400 or above,

04:05

those elements need connections.

04:07

And these connections can be created in Revit

04:10

or we can import them from Advance Steel.

04:12

In this case, we are going to look at all the connections

04:15

that have been upended in Advance Steel.

04:23

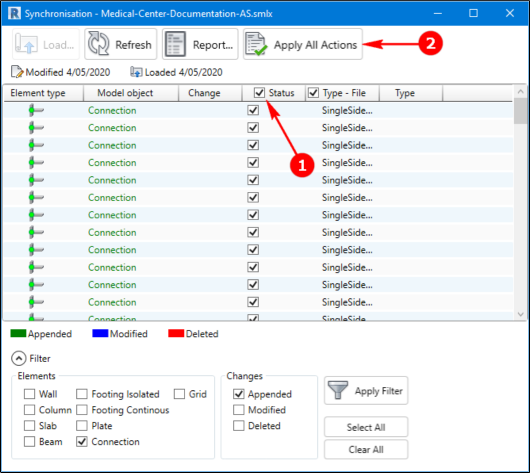

We can now see all these connections that were appended.

04:28

I'm going to click on the Status column

04:30

again and Apply All Actions.

04:35

And now it starts the process of importing all these connections

04:39

from Advance Steel into Revit.

04:42

This process takes a bit of time,

04:44

so I'm going to speed it up to save some time in the video.

04:49

Here we go.

04:50

So we have now imported all these connections

04:53

from Advance Steel into Revit.

04:56

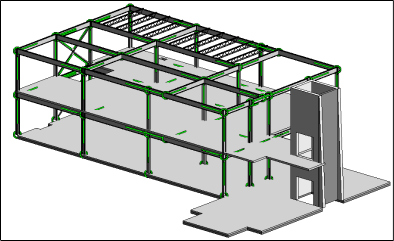

As you can see, all these connections

04:59

that we have imported from Advance Steel

05:01

are displayed as green lines and circles.

05:03

And that's because, by default, the connections are displayed

05:07

with medium level of detail.

05:09

In the next course, we are going to learn

05:11

how to change the visibility of these connections

05:14

and also of some of the other structural elements.

05:19

What we saw in this course were two really powerful workflows.

05:23

The first one was where we validated the detail model

05:26

with the design model in Revit.

05:29

And the second one was where we were

05:30

able to import structural sections and connections

05:34

from Advance Steel into Revit.
