Export BIM Data from Revit

00:01

DEEPAK MAINI: In the second objective,

00:02

we are going to talk about exporting the structural BIM

00:05

data from Revit.

00:06

I'm going to switch over to my Revit program.

00:09

And now, we are going to open the model available in the data

00:12

set folder of course one.

00:19

As most of you might already be aware,

00:22

Revit is a preferred program when

00:24

it comes to creating a structural steel design.

00:27

So for creating designs, lot of engineers

00:30

and structural designers prefer Autodesk Revit.

00:33

However, when it comes to detailing structural models,

00:37

lot of steel detailers prefer other programs

00:40

such as advance steel.

00:41

Hence, we are going to export this structural model

00:44

from Revit, and we are going to import it in Advance Steel.

00:48

Notice that this model is similar to the one

00:50

that we created in one of the other learning parts.

00:53

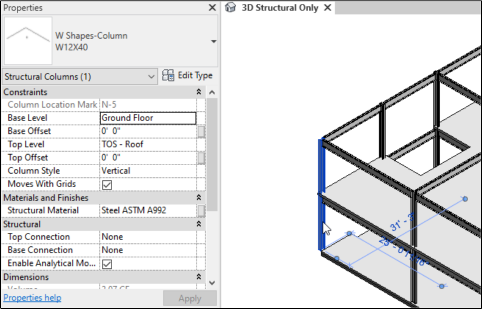

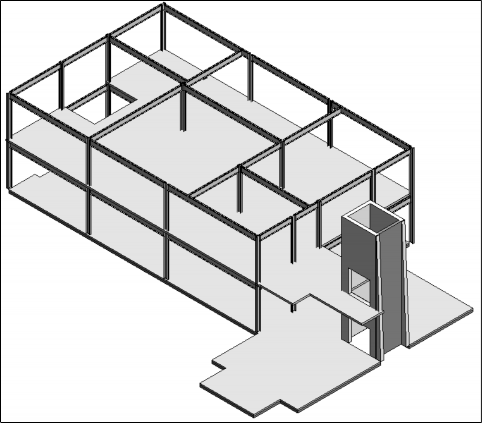

It's a structural model, which has

00:55

got some structural slabs, some structural walls,

00:57

and also some steel sections added.

01:10

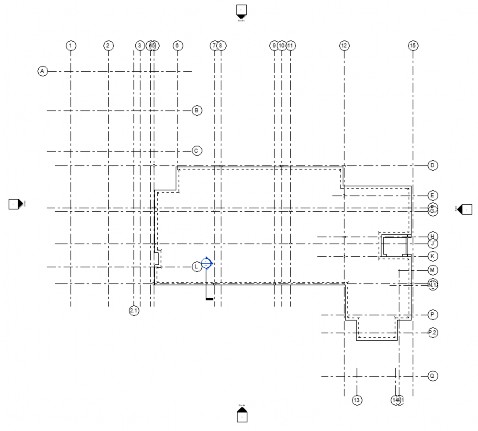

If I go to the bottom of steel plan,

01:14

notice that there are some grids available in this model

01:16

as well.

01:19

Now because we have installed the Advance Steel plugin, when

01:22

I go to the Add-Ins tab, I can see the Advance Steel Extension

01:29

plugin here.

01:31

Now before we start exporting this model,

01:34

we are going to look at some settings.

01:39

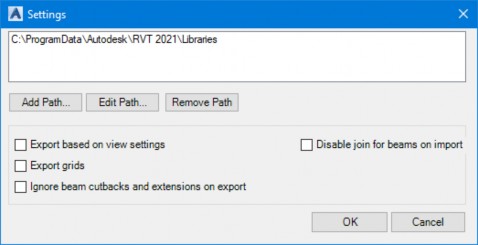

In the settings dialog box as you can see,

01:41

there are some checkboxes available.

01:43

The first checkbox I'm going to select

01:44

is this one here called Export Grids.

01:48

This will ensure that the grids are also exported,

01:51

and we can then reuse them in Advance Steel.

01:53

I'm also going to select this checkbox here

01:55

that says ignore beam cutbacks and extension on export.

02:01

Now, I would recommend not to select the export based

02:04

on view settings checkbox.

02:05

This is because selecting this checkbox

02:08

will not export the grids.

02:10

And because we need to use the grids in Advance Steel,

02:12

we'll not select this checkbox.

02:14

I'm happy with these settings.

02:16

So I'm going to click the OK button.

02:22

And now I'm ready to export the structural BIM

02:24

data from this Revit model, so we

02:26

could use it in Advance Steel.

02:28

Now the way the export works is, if I go and select

02:31

certain sections or certain elements

02:35

and then select the Export option from the Add-Ins tab

02:39

Advance Steel export, then it will only

02:42

export the selected elements.

02:45

In our case, we want to export the entire model.

02:48

So make sure you click somewhere outside,

02:50

so nothing is selected.

02:52

And now I'm going to go into the Advance Steel flyout,

02:55

and I'll select this option called Export.

02:59

There are a number of different formats

03:01

in which we can export the file.

03:03

The preferred format is the advance export format.

03:06

If I click on the Other Formats radio button,

03:09

I've got these formats available, SDNF, CIS2, and PSS.

03:14

But as I said, we strongly recommend

03:16

to leave it as advance export.

03:19

My country library is US.

03:21

If I click on this, you can also select other country libraries

03:24

depending on what libraries were used to create

03:27

this structural model.

03:29

And now when I click on the OK button,

03:32

it allows me to save this file.

03:35

Please note that it's saving this file

03:36

in the SMLX format, which is the steel markup language format.

03:41

I'll use the default name and click the Save button.

03:46

It starts the process of exporting the structural BIM

03:49

data from Revit.

03:50

Now I'm going to show you a really cool thing.

03:53

Let me go to the folder where the structural file was saved.

03:58

And notice that my Revit file was 9.3 megs,

04:03

whereas the SMLX file that we have just exported

04:06

is only 8 KB.

04:08

So it takes the entire structural model

04:11

with all the metadata and smart properties.

04:14

And it creates a really small file

04:16

as you could see here, only 8 KB.

04:20

I'm going to go back to the Revit program.

04:23

That was the second objective of this course.
