Transcript
00:03
The
00:04
Agis Pro interface uses a traditional ribbon interface with
00:07
common tools arranged in tabbed groupings across the top
00:12
below the ribbon, various panels are displayed for working with maps, scenes
00:17
layouts,
00:18
tables, charts
00:20
the catalog and other representations of your data.
00:24
Several panels can be open at the same time.
00:28
All Argi
00:29
Pro functions and tools are accessible when working with info water pro
00:34
specific info Water pro menus and tools are found in a tab within the Argi
00:38
Pro ribbon.
00:40
This tab contains all commonly used info
00:43
water pro commands grouped by modeling purposes
00:47
when first accessed,
00:49
most of these commands are grayed out until
00:51
you initialize an info Water pro project.
00:54
The info Water Pro ribbon contains several groups of commands.
00:59
The project group contains the commands that control how ARGI
01:02
pro and info Water Pro interact.
01:06
The edit group has tools for working with your info Water pro project elements.
01:12
The exchange group is for data exchange which includes importing and exporting,
01:17
connecting to live sensor data
01:19
and uploading data to info. 360.
01:22
The domain group is for working with domains.
01:26
A domain is a selection of elements
01:28
created either manually or through data queries.
01:32
The domain group allows you to create edit and add two slash remove from the domain.
01:39
The facility group is similar and it contains the
01:42
facility manager which controls the active facility set.
01:47
Once all required databases are populated,
01:49
you can use the analysis group tools to run simulations.
01:54
The view group contains tools for viewing results
01:56
of simulations as well as overview information,
01:59
schematics and map display controls.
02:03
You can also add or remove interface windows
02:06
like the model explorer and message board.
02:10
The allocator group contains the allocation manager which provides
02:13
you with a means to allocate all your demands,
02:16
water consumption to junctions from water usage data.
02:20
This data typically comes from a meter or polygon layer.
02:25
The additional tools allow you to create slash edit polygons,
02:29
create a meter layer from a spreadsheet
02:32
or change junction slash pipe meter assignments
02:36
in the demand analyst group.
02:38
The demand analysis provides you with accurate real time water demand estimates.
02:43
And the UDF group has tools that allow
02:46
you to design and manage unidirectional flushing sequences.
02:51
Notice that the allocator and UDF groups have extra options that you can
02:55
access by clicking the dialog box launcher in the corner of the grouping.
02:60
When working on a project info,
03:01
water pro adds the model explorer and message board panels to the existing ARGI
03:07
panels below the ribbon, your model contents and catalog
03:12
the model explorer is one of the most used
03:14
parts of the interface and it has three tabs.
03:18
The attribute tab allows you to activate a scenario, choose an output source view,
03:23
the information of a selected element
03:25
and access all hydraulic modeling objects such as curves and patterns.
03:31
There are also controls in tables for
03:33
simulation or element specific modeling inputs.
03:37
The operation tab has linkages to some tools all over info water pro such as
03:42
database queries and the map display from the
03:45
ribbon pattern slash curve creation simulation settings.
03:49
And more
03:51
and lastly, the command center tab contains many database controls.
03:56
You can change spatial reference
03:58
access, additional import slash export tools
04:03
use scenario controls or connectivity review tools
04:07
perform a database cleanup
04:10
access help documents
04:12
and more.
04:14
The message board displays various messages pertaining to
04:17
the model and hydraulic simulations such as warnings,
04:20
errors and successful run messages.
04:25
These panels can be moved closed or hidden,
04:27
allowing you to rearrange the work area to your style of working.
Video transcript
00:03
The
00:04
Agis Pro interface uses a traditional ribbon interface with
00:07
common tools arranged in tabbed groupings across the top
00:12
below the ribbon, various panels are displayed for working with maps, scenes
00:17
layouts,
00:18
tables, charts
00:20
the catalog and other representations of your data.
00:24
Several panels can be open at the same time.
00:28
All Argi
00:29
Pro functions and tools are accessible when working with info water pro
00:34
specific info Water pro menus and tools are found in a tab within the Argi
00:38
Pro ribbon.
00:40
This tab contains all commonly used info
00:43
water pro commands grouped by modeling purposes
00:47
when first accessed,
00:49
most of these commands are grayed out until
00:51
you initialize an info Water pro project.
00:54
The info Water Pro ribbon contains several groups of commands.
00:59
The project group contains the commands that control how ARGI
01:02
pro and info Water Pro interact.
01:06
The edit group has tools for working with your info Water pro project elements.
01:12
The exchange group is for data exchange which includes importing and exporting,
01:17
connecting to live sensor data
01:19
and uploading data to info. 360.
01:22
The domain group is for working with domains.
01:26
A domain is a selection of elements
01:28
created either manually or through data queries.
01:32
The domain group allows you to create edit and add two slash remove from the domain.
01:39
The facility group is similar and it contains the
01:42
facility manager which controls the active facility set.
01:47
Once all required databases are populated,
01:49
you can use the analysis group tools to run simulations.
01:54
The view group contains tools for viewing results
01:56
of simulations as well as overview information,
01:59
schematics and map display controls.
02:03
You can also add or remove interface windows
02:06
like the model explorer and message board.
02:10
The allocator group contains the allocation manager which provides
02:13
you with a means to allocate all your demands,
02:16
water consumption to junctions from water usage data.
02:20
This data typically comes from a meter or polygon layer.
02:25
The additional tools allow you to create slash edit polygons,
02:29
create a meter layer from a spreadsheet
02:32
or change junction slash pipe meter assignments
02:36
in the demand analyst group.
02:38
The demand analysis provides you with accurate real time water demand estimates.
02:43
And the UDF group has tools that allow
02:46
you to design and manage unidirectional flushing sequences.
02:51
Notice that the allocator and UDF groups have extra options that you can
02:55
access by clicking the dialog box launcher in the corner of the grouping.
02:60
When working on a project info,
03:01
water pro adds the model explorer and message board panels to the existing ARGI
03:07
panels below the ribbon, your model contents and catalog
03:12
the model explorer is one of the most used
03:14
parts of the interface and it has three tabs.
03:18
The attribute tab allows you to activate a scenario, choose an output source view,
03:23
the information of a selected element
03:25
and access all hydraulic modeling objects such as curves and patterns.
03:31
There are also controls in tables for
03:33
simulation or element specific modeling inputs.
03:37
The operation tab has linkages to some tools all over info water pro such as
03:42
database queries and the map display from the
03:45
ribbon pattern slash curve creation simulation settings.
03:49
And more
03:51
and lastly, the command center tab contains many database controls.
03:56
You can change spatial reference
03:58
access, additional import slash export tools
04:03
use scenario controls or connectivity review tools
04:07
perform a database cleanup
04:10
access help documents
04:12
and more.
04:14
The message board displays various messages pertaining to
04:17
the model and hydraulic simulations such as warnings,
04:20
errors and successful run messages.
04:25
These panels can be moved closed or hidden,
04:27
allowing you to rearrange the work area to your style of working.
The ArcGIS Pro interface uses a traditional ribbon interface with common tools arranged in tabbed groupings across the top. Below the ribbon, various panels are displayed for working with maps, scenes, layouts, tables, charts, the catalog, and other representations of your data. Several panels can be open at the same time.

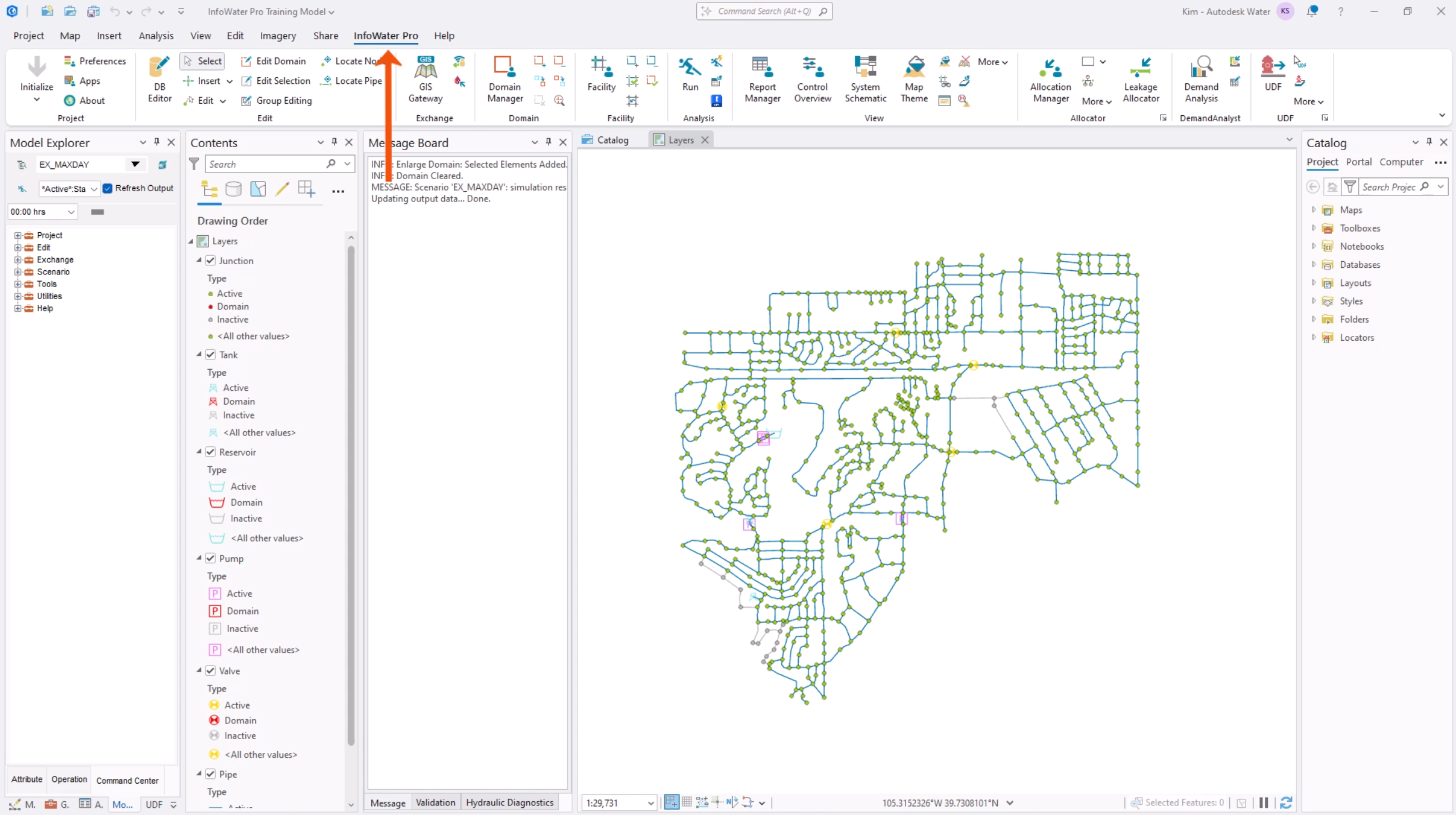

All ArcGIS Pro functions and tools are accessible when working with InfoWater Pro. Specific InfoWater Pro menus and tools are found in a tab within the ArcGIS Pro ribbon.
This tab contains all commonly used InfoWater Pro commands, grouped by modeling purposes. When first accessed, most of these commands are greyed out until you initialize an InfoWater Pro project.

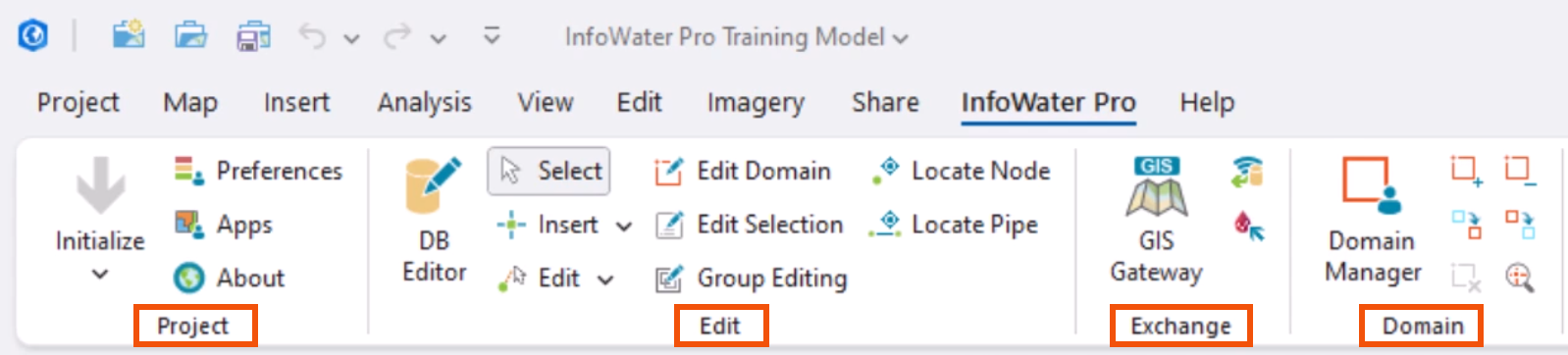

The InfoWater Pro tab on the ribbon contains several groups of commands.
The Project group contains the commands that control how ArcGIS Pro and InfoWater Pro interact.
The Edit group has tools for working with your InfoWater Pro project elements.
The Exchange group is for data exchange, which includes importing and exporting, connecting to live sensor data, and uploading data to Info360.
The Domain group is for working with domains. A domain is a selection of elements, created either manually or through data queries. The domain group allows you to create, edit, and add to/remove from the domain.
The Facility group contains the Facility Manager, which controls the active facility set.
Once all required databases are populated, you can use the Analysis group tools to run simulations.
The View group contains tools for viewing results of simulations, as well as overview information, schematics, and map display controls. You can also add or remove interface windows, like the Model Explorer and Message Board.

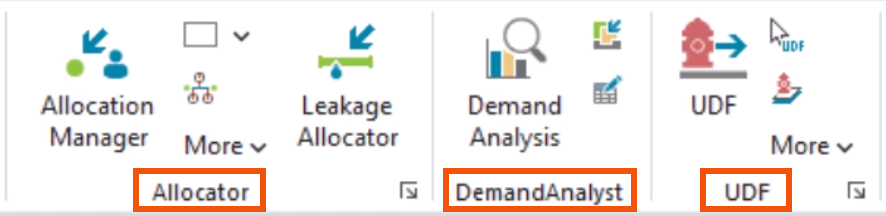

The Allocator group contains the Allocation Manager, which provides you with a means to allocate all your demands (water consumption) to junctions from water usage data. Additional tools allow you to create/edit polygons, create a meter layer from a spreadsheet, or change junction/pipe-meter assignments.
In the Demand Analyst group, the Demand Analysis provides you with accurate real-time water demand estimates.
The UDF group has tools that allow you to design and manage unidirectional flushing sequences.

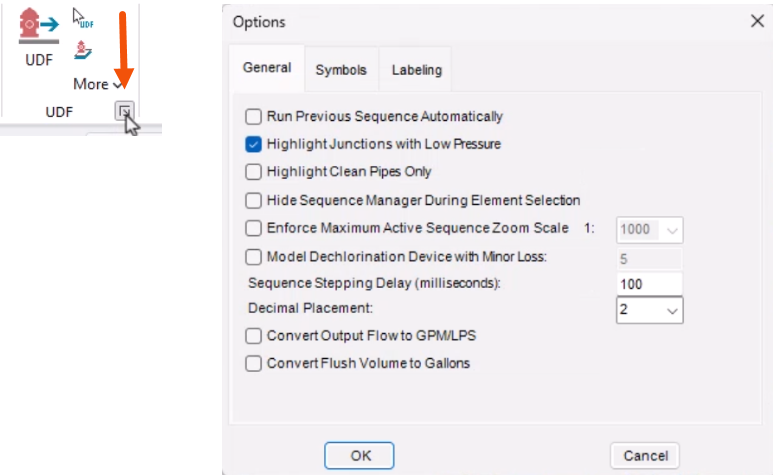

The Allocator and UDF groups have extra options that you can access by clicking the dialog box launcher in the corner of the grouping.
When working on a project, InfoWater Pro adds the Model Explorer and Message Board panels to the existing ArcGIS panels below the ribbon—your model, Contents, and Catalog.
The Model Explorer is one of the most-used parts of the interface, and it has three tabs.
The Attribute tab allows you to activate a scenario, choose an output source, view the information of a selected element, and access all hydraulic modeling objects, such as curves and patterns. There are also controls and tables for simulation or element specific modelling inputs.
The Operation tab has linkages to some tools all over InfoWater Pro, such as database queries and the map display from the ribbon, pattern/curve creation, simulation settings, and more.
The Command Center tab contains many database controls. You can change spatial reference, access additional import/export tools, use scenario controls or connectivity review tools, perform a database cleanup, access help documents, and more.
The Message Board displays various messages pertaining to the model and hydraulic simulations, such as warnings, errors, and successful run messages.

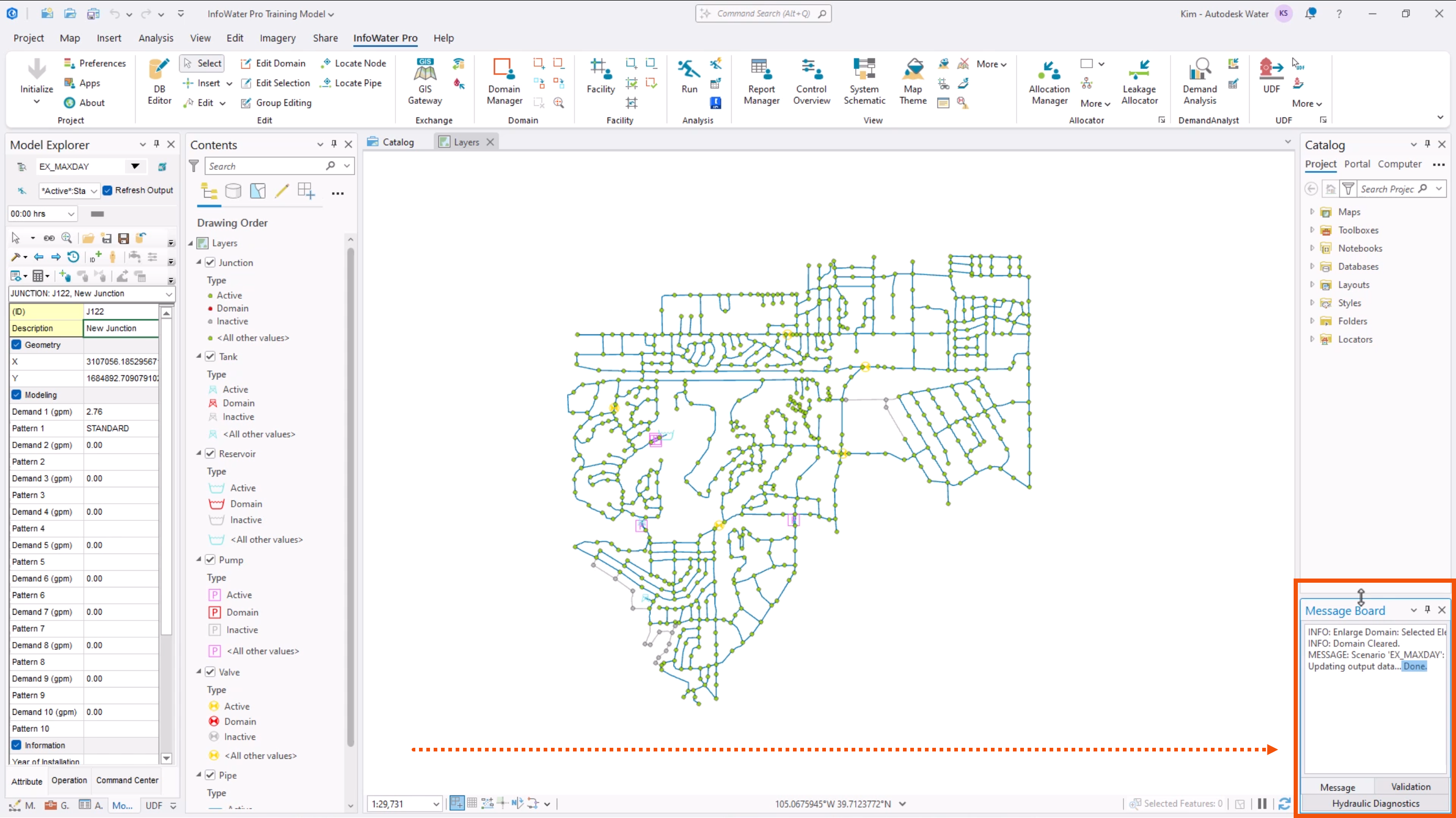

These panels can be moved, closed, or hidden, allowing you to arrange the work area to your style of working.
