Structural Parameters

00:01

SIMON DICKINSON: Hello.

00:02

My name is Simon Dickinson.

00:04

Let's look at how we start a structural family in Revit.

00:09

In this video, we are going to look

00:11

at the importance of selecting the correct template, how

00:15

to set the correct category, and making

00:18

sure we assign the correct section shape,

00:21

finally, other important parameters

00:25

such as the material for model behavior

00:27

and symbolic representation.

00:31

When starting a new structural family,

00:34

it is important that we start by using the correct template.

00:39

Using the wrong template will not

00:41

give us the settings we need to create our family.

00:45

The family templates will set the best parameters

00:48

that we need.

00:50

Making sure we use a structural framing or structural cone

00:54

template will ensure that the parameter

00:57

for the structural material is present.

00:60

Using the template called just column

01:03

we'll create an architectural column

01:05

with no structural properties.

01:07

Although it is possible to change the category after you

01:11

start the family, this is not guaranteed that the required

01:14

base geometry is correct.

01:17

For instance, you cannot change from a structural column

01:21

to a structural framing.

01:27

There are several structural settings

01:29

that we need to set under the Family categories

01:32

and Parameters dialog, the first being the Section Shape.

01:36

This does several things.

01:39

It will set dimension parameters,

01:41

including bulk spacing.

01:43

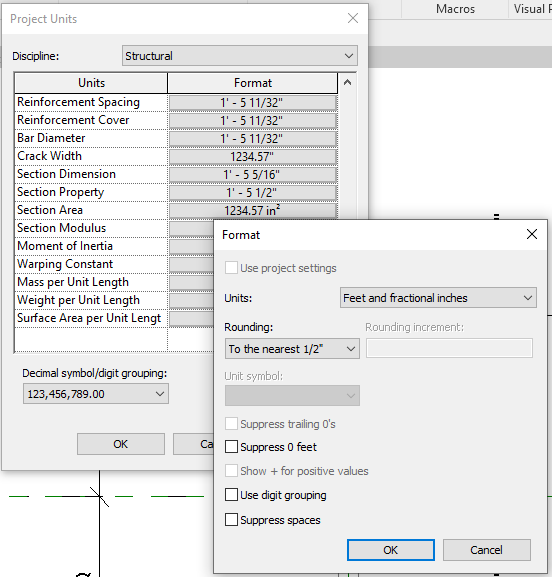

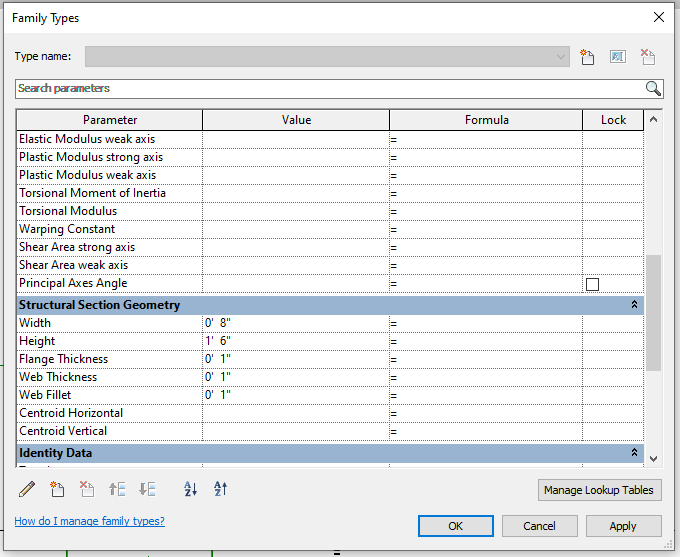

It will create the structural analysis parameters.

01:46

It will also create one dimensional properties

01:50

for the shape we have chosen.

01:52

Remember that the parameters that are created

01:55

are specific to the Section Shape,

01:57

so it is very important that we set the correct shape.

02:01

It is also possible to create these parameters ourself.

02:05

However, by applying a Section Shape,

02:08

we can guarantee consistent parameters.

02:14

Section Shapes and their resulting properties

02:18

help to ensure accurate data exchange

02:21

with structural analysis software code checking,

02:24

and steel detailing.

02:29

We also need to set the materials for model behavior.

02:34

This affects how the elements will work.

02:37

We can choose from Steel, Concrete, Precast Concrete,

02:42

Wood, or Other.

02:45

By setting this to Steel, it will

02:47

allow for the cutback behavior and shape handles.

02:51

Concrete will set the auto join and allow

02:54

for hosting of reinforcement.

02:56

Similar settings are applied to precast.

02:59

Wood allows for cutback and shape handles.

03:06

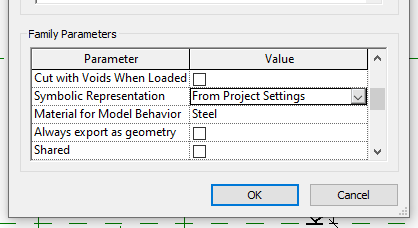

Symbolic representation is controlled either by the Family

03:11

or from the Project settings.

03:16

We have the option to set a Structural Framing Length

03:20

Roundoff.

03:21

This can improve performance by allowing overrides

03:24

of the exact calculation of a beam length

03:27

to a broader more applicable length.

03:32

Finally, we may want to create our own parameters.

03:37

If we want to reuse parameters in other families

03:40

and be able to schedule the values,

03:43

then these would need to be shared parameters.

03:47

Shared parameters require a shared parameters file.

03:51

We can create this anywhere.

03:53

But if multiple people are creating families,

03:56

it is good practice to store this on a shared location

03:60

so all users have access to the same shared parameters.

04:05

A shared parameter has a defined ID.

04:09

Creating a new parameter with the same name

04:12

will not create the same shared parameter.

04:16

Only using the parameter set up in the shared parameters file

04:20

will do this.

04:22

We should have created the shared parameters file.

04:25

We can create groups in it, which allow us

04:28

to categorize our parameters.

04:31

If you have a family that already has a shared parameter,

04:35

then you can extract this to your shared properties file

04:39

for use in your own families.
