Create a Default Schedule

00:01

SIMON DICKINSON: Hello.

00:02

Let's now look at creating some default schedules.

00:05

In this video, we will look at how

00:07

we can create base schedules.

00:09

We will look at creating new schedules add in fields.

00:13

We will then look at how we can customize

00:15

the schedules with custom parameters

00:17

and calculated parameters.

00:23

When using schedules in Revit, we should only ever

00:26

need to create it ones.

00:28

By adding all the schedules we need into a template,

00:32

the schedules will self-propagating as we draw.

00:40

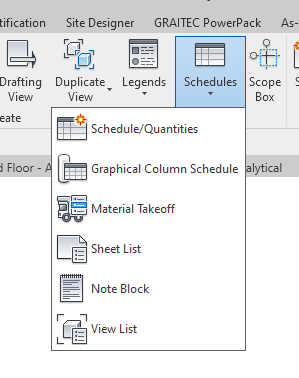

To create new schedule, go to the View ribbon,

00:43

then on the schedule, drop down to schedules/quantities.

00:48

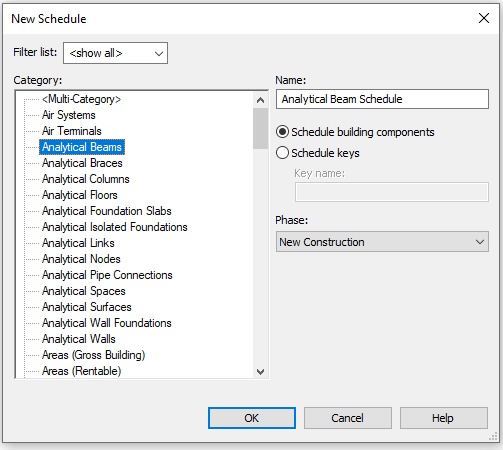

We can then select the category that we want the schedule for.

00:51

In this case, analytical beams.

00:54

Note the columns are a separate category

00:57

and will need to be done separately.

01:01

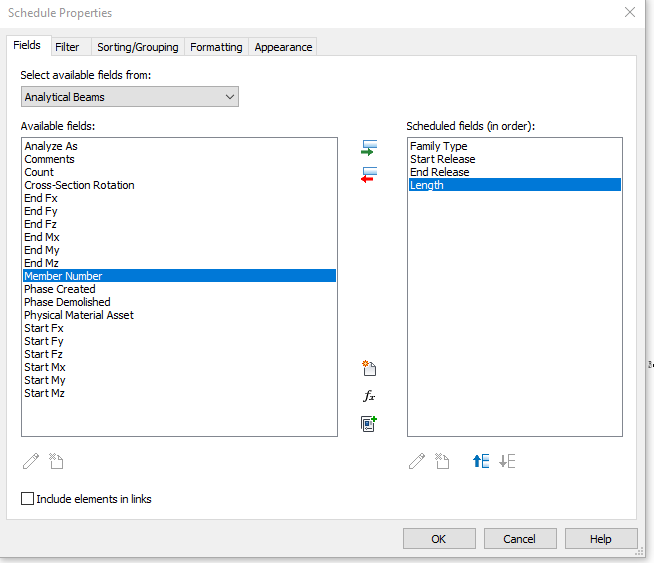

We can now select the parameters that we would

01:03

like to see in the schedule.

01:05

For our analytical model, it is useful to check

01:08

the type of joint/release.

01:10

Here, I select family time, then start release and release.

01:15

I'm also going to add length.

01:17

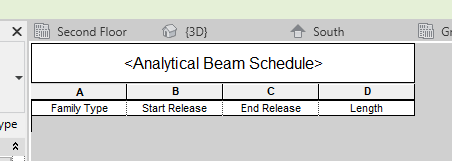

We can then view and evaluate the schedule making changes

01:20

to the model from the schedule should we need to.

01:23

Remember, in Revit, a change anywhere

01:26

is a change everywhere, even from a schedule,

01:29

also known as bidirectional associativity.

01:38

Our schedules are expandable.

01:41

A new parameters can be added that are

01:43

independent of the families.

01:45

This makes the schedules extremely flexible.

01:48

Clicking Add New, this creates a new project parameter

01:53

assigning it to the same category as a schedule.

02:01

Here are created a parameter called analytical ref,

02:05

with a property of text.

02:07

And as we can see, it has been added to the analytical model

02:11

in the main model view.

02:13

I can edit the properties of that parameter here,

02:16

and it will appear in my schedule.

02:25

We can also add calculated values.

02:27

These are values that are calculated from fields we have

02:30

already added to the schedule.

02:33

A nice tip is to use to calculate parameter

02:36

to create a copy of a parameter, allowing us to assign

02:39

different display units.

02:41

Here, I created a calculated parameter called metric length.

02:46

And I simply assigned a formula as length.

02:49

I can then changes its units to millimeters

02:51

under the formatting tab.

03:04

Using the format and appearance tabs,

03:06

we can control how we format the data allowing us to customize

03:10

the display units for our columns and the textile

03:13

should we wish to.

03:21

We also have tools that allow us to customize

03:23

the head of our schedule, adding text, and company logos.

03:28

Selecting the title, we can create space above or below.

03:32

We can then split the space and then put our image or logo.

03:39

It is also possible to copy an existing

03:42

schedule to a clipboard and then paste into another project.

03:46

Again, saving us from recreating one we already have.

03:52

Once we have finished creating our default schedules,

03:55

remember to save changes to your template.
