Transcript
00:01
SIMON DICKINSON: Hello.
00:02
My name is Simon Dickinson.
00:04
Let's now look at the composition of a Revit family.
00:08
There are several features to be aware of when
00:11
it comes to family composition.
00:13
Reference planes, reference lines, constraints,
00:19
and parameters.
00:21

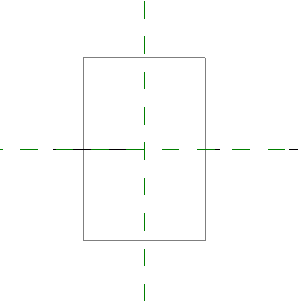

All families, regardless of type,
00:24
are controlled using a skeleton, a series of references
00:28
that we can control using dimensions.
00:31
Geometries then attach and lock to the skeleton
00:35
to make it parametric.
00:37
Parameters should never be locked directly to geometry.
00:41
This is generally regarded as bad practice
00:44
and can lead to issues when geometries change later
00:47
in the project.
00:51

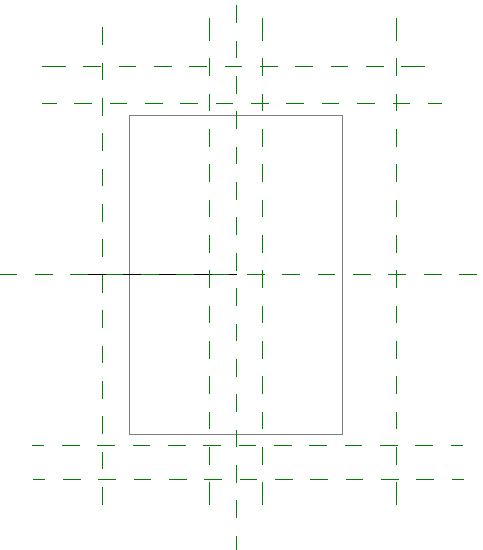

The first of the references is the reference planes.
00:55
These have undefined end points, i.e.,
00:59
They project indefinitely in both directions and once drawn
01:04
can only be moved parallel to their created direction.
01:08
We can name these planes, so that they
01:10
can be referenced in views perpendicular
01:13
to the created views.
01:18
Let's look at the reference line.
01:21
A reference line, unlike a reference plane,
01:25
has defined start and end points.
01:28
They also have four work planes associated to them--
01:32
vertical, horizontal, and a plane at each end.
01:36
Because each end is defined unlike with a reference plane,
01:41
we can use angular dimensions to add rotational properties
01:45
to it.
01:48
Dimensions and constraints can be
01:51
used to create how our skeleton moves and updates.
01:55

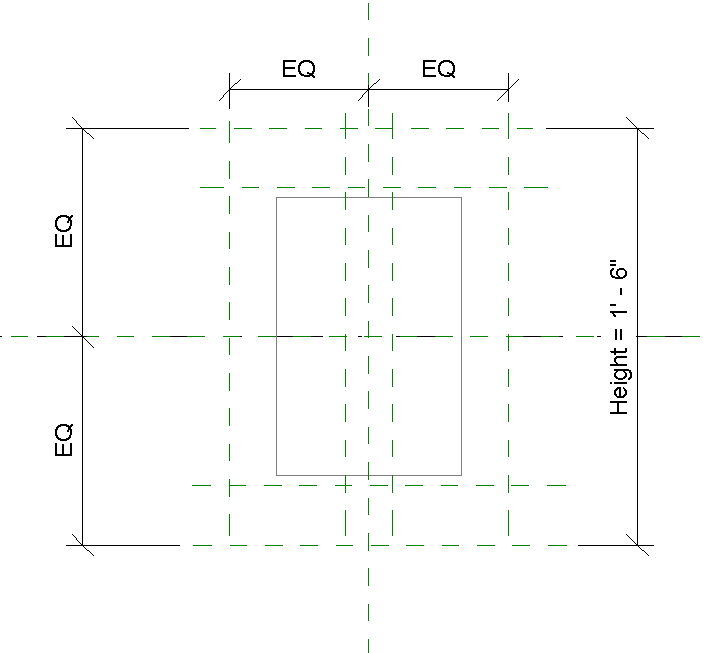

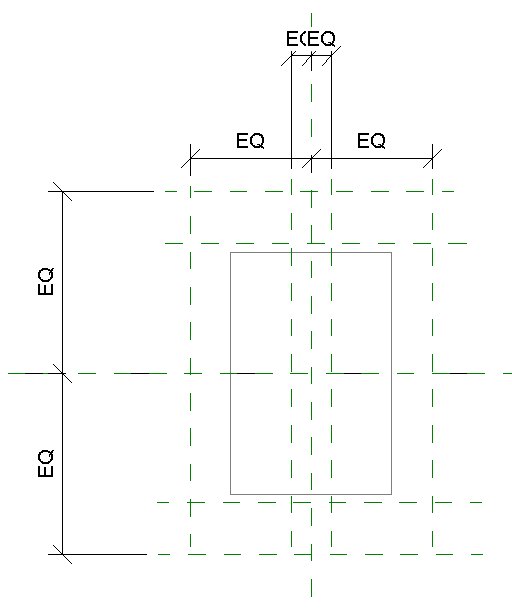

Possibly the most useful constraint
01:58
is the equality constraint that can
02:00
be added to a multi dimension setting
02:04
equally spaced references.
02:07
We can then use this in conjunction
02:09
with a dimension with a parameter assigned
02:12
to it such as length.
02:15
We can use the pin tool to constrain the direction
02:19
the planes move when changed.
02:21
Be careful not to overconstrain the model.
02:25
Families such as beams are classed
02:28
as two-point families defined in the project using
02:33
a start and an end point.
02:36
Notice that the structural beam template only has the length
02:40
property defined.
02:42
Notice that next to the length parameter,
02:45
it is default in brackets.
02:48
This indicates that length is an instance parameter.
02:52

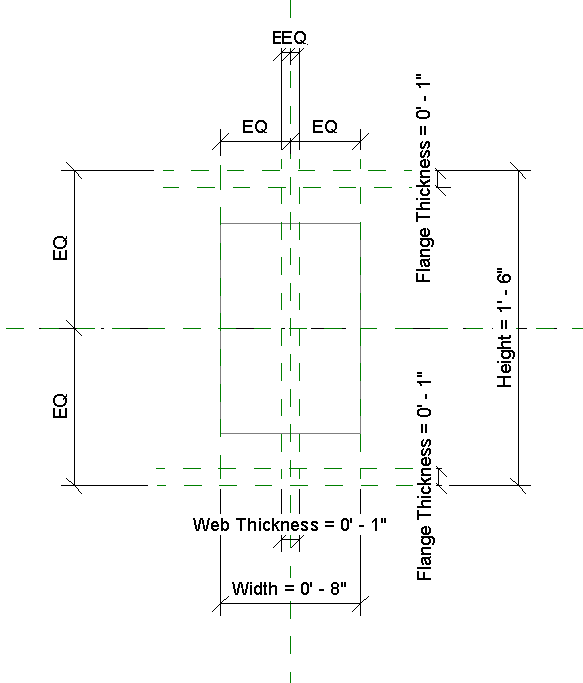

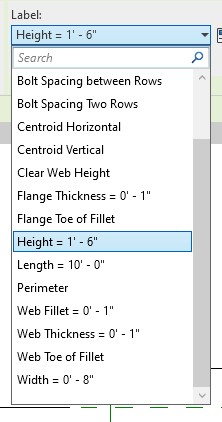

If we have set our structural properties correctly
02:56
for the type of family we are creating,
02:59
we can very quickly create dimensions
03:01
and add the parameters to our references.
03:05
Once we have created the references,
03:08
we can look at creating our geometry.
03:11
For beams, this is done using an extrusion.
03:15
A basic one is already present in the template.
03:19
We can edit this one to create any shaped beam we require.
03:24
It is also possible to create geometry using blends,
03:29
revolves, sweeps, and a swept blend,
03:33
although these are not normally used
03:36
when creating beam families.
03:41
At any point, we can add additional parameters.
03:46
Parameters can either be instance or type,
03:51
remembering that's an instance parameter
03:53
is unique to that instance of a family
03:57
and a type parameter is unique to that family.
04:01
Changing a type perimeter can change multiple instances
04:05
at the same time.
04:08
These parameters can also be a family parameter
04:11
that only exists in the family.
04:14
A shared parameter where the value
04:17
can be used in a project schedule
04:20
are important, a value that is not
04:22
specified but driven by a dimension in the family model.
04:27
These parameters can be used to control the family
04:31
parametrically when used as a numerical value
04:35
or as a standalone data such as manufacturer or product
04:39
information.
04:40
We can add families to our template.
04:44
However, it is not good practice to have too many families, just
04:48
a basic selection.
04:49
Adding additional families to the project as
04:52
required, remembering that each project will
04:56
have different requirements.
