Set Structural Settings

00:01

SIMON DICKINSON: Hello, let's now

00:03

look at our structural settings and project units.

00:06

In this video, we are going to concentrate

00:09

on the symbolic load and analytical settings,

00:13

and finally, our project units.

00:17

Before we begin working on our structural project,

00:20

it is always a good idea to check

00:22

that our structural settings and project units are correct.

00:26

Although Rivet is very flexible and we

00:28

can change these settings later with very little issue.

00:32

All settings and units are controlled by the template.

00:36

And so, once configured and served to our template

00:39

will be consistent across our projects.

00:42

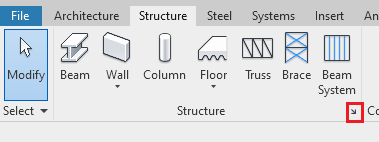

To check our structural settings,

00:44

click either but diagonal arrow on the structures panel

00:48

in the structures tab of a structural settings

00:51

icon from the manage tab on the ribbon.

00:54

This will open our structural settings dialog.

00:58

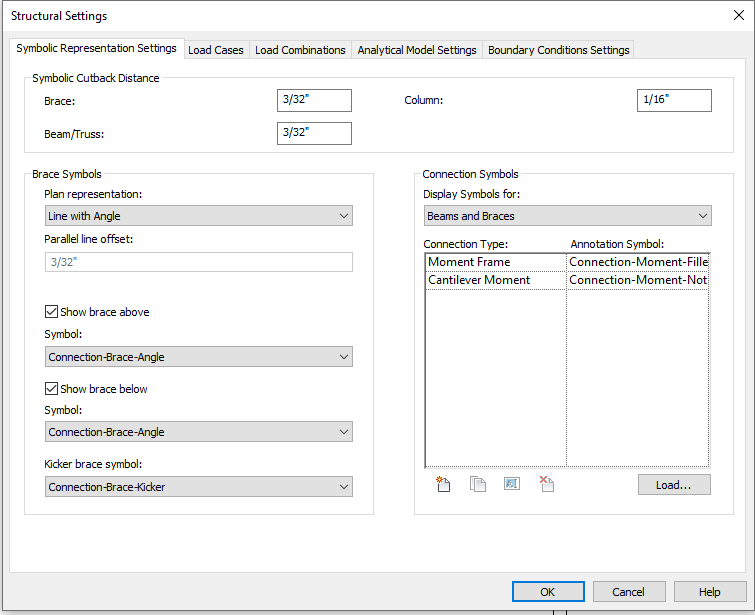

The dialog box gives us access to various settings,

01:01

such as our symbolic settings.

01:03

Here we can set our cutbacks for beams and columns.

01:07

And how our baselines are displayed in our cost plan

01:11

reviews.

01:12

We can choose which single-family we use.

01:14

These can be customized for our own company standards.

01:21

We also have access to our load settings and load combination

01:25

settings.

01:26

In most cases, these are correct in the default

01:28

structural template.

01:30

But we can have new one should we require them.

01:33

We will look at this in more detail in a later video.

01:37

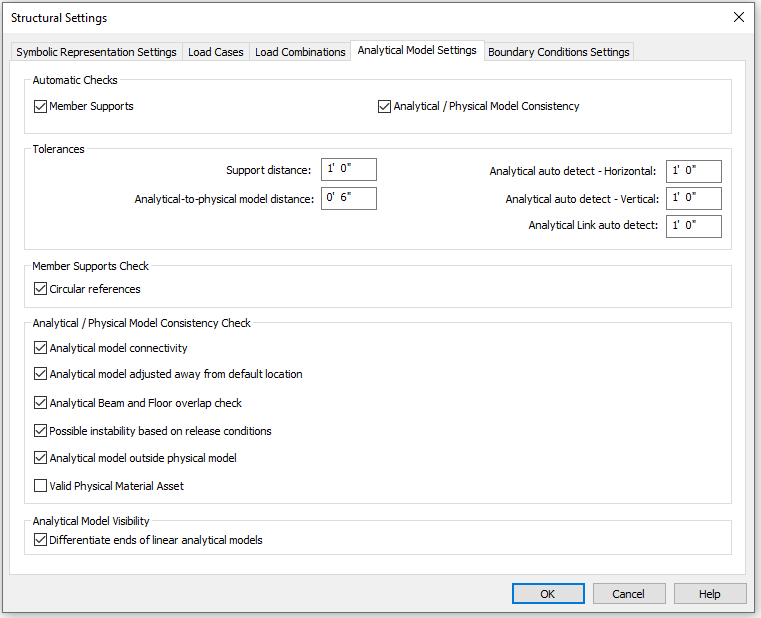

From a structural analysis perspective,

01:39

the analytical settings tab are some great productivity tools.

01:44

Here we can find tools for auto checking our structural model

01:47

to make sure that it is going to work.

01:50

It will check that none of our connections

01:52

are floating, that columns have foundations,

01:55

and we have no issues with our analytical model.

02:02

During our model production, we will

02:04

be able to check and fix issues as they happen or later

02:08

via the error dialog box.

02:17

All soft errors meaning ones that

02:20

can be ignored before moving on, are logged in the error dialog

02:24

box for future review.

02:26

Once fixed, they will be automatically removed.

02:29

This is always a good place to start to error check our models

02:33

before moving to robot.

02:43

We also want to check that our units are

02:46

correct from units dialog box located on the manuscript.

02:51

As well as having the common units,

02:53

we have discipline-specific units on the dropdown.

02:56

Selected structure will give us access

02:58

to our discipline-specific units.

03:01

The default units are correct, but you

03:04

may want to change the display of values, such as the number

03:07

of decimal places.

03:09

Please note this does not affect the calculation

03:12

accuracy of Revit.

03:14

Only the way in which the values are displayed.

03:17

My favorite option here is to suppress trailing zeros.

03:21

So you only see the decimal places needed.

03:24

We have now configured our settings and units.

03:28

Remember to save your changes.
