Create new product variants

00:03

With Informed Design in Revit, you can load a published Inventor product definition and try out multiple variants,

00:09

while still respecting the design parameters set by the product manufacturer.

00:14

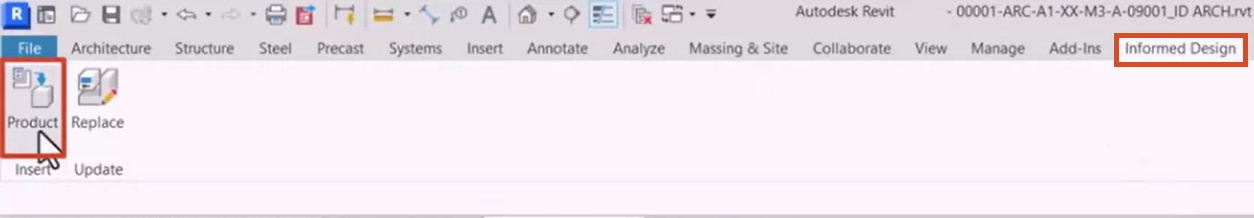

In Revit, navigate to the Informed Design tab, and then select Product Insert.

00:20

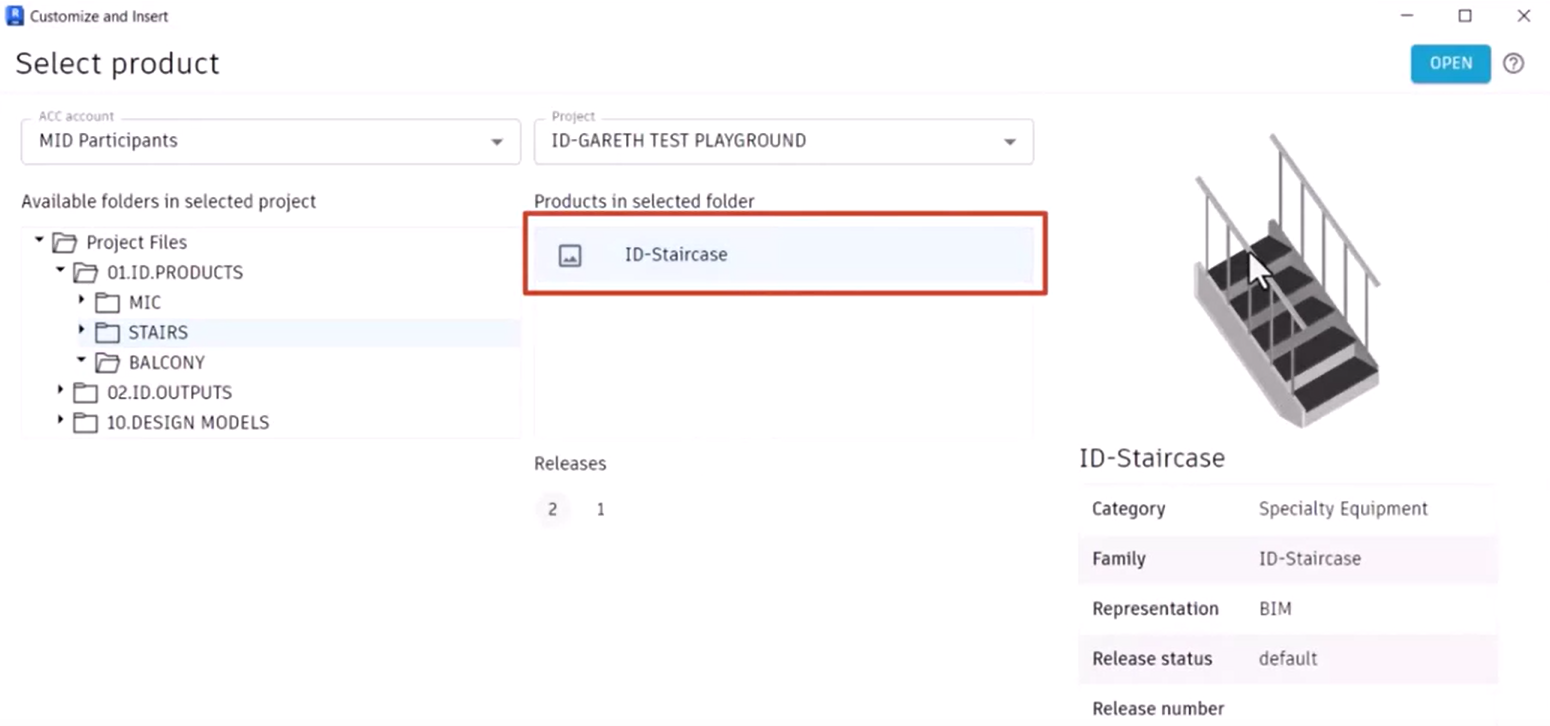

In the Customize and Insert dialog, under Select product,

00:24

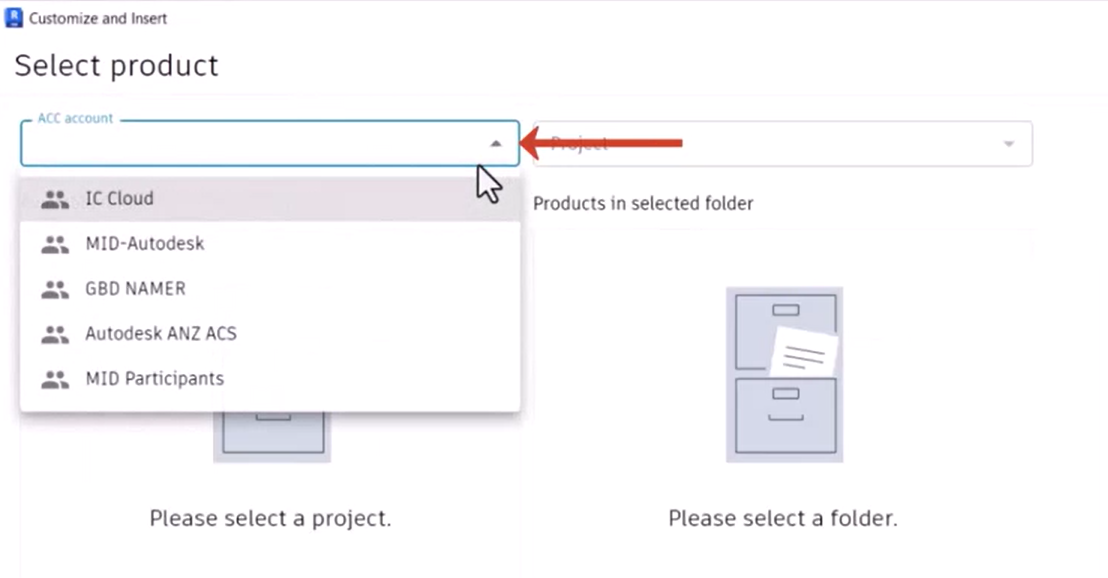

expand the drop-downs and select the account and project where the product definitions were saved.

00:30

Note that you must have the proper permission to access Autodesk Docs project folders containing Informed Design products.

00:38

Once you have selected the project you need, the available folders appear.

00:42

In this example, the Stairs and Balcony product definitions were saved as sub-folders under the 01.ID.PRODUCTS folder.

00:52

Select STAIRS.

00:54

Under Products in selected folder, you can see the product definitions that were saved and published from Inventor.

01:01

For this example, the ID-Staircase is selected.

01:05

On the right, you can see a thumbnail and details of the product definition.

01:10

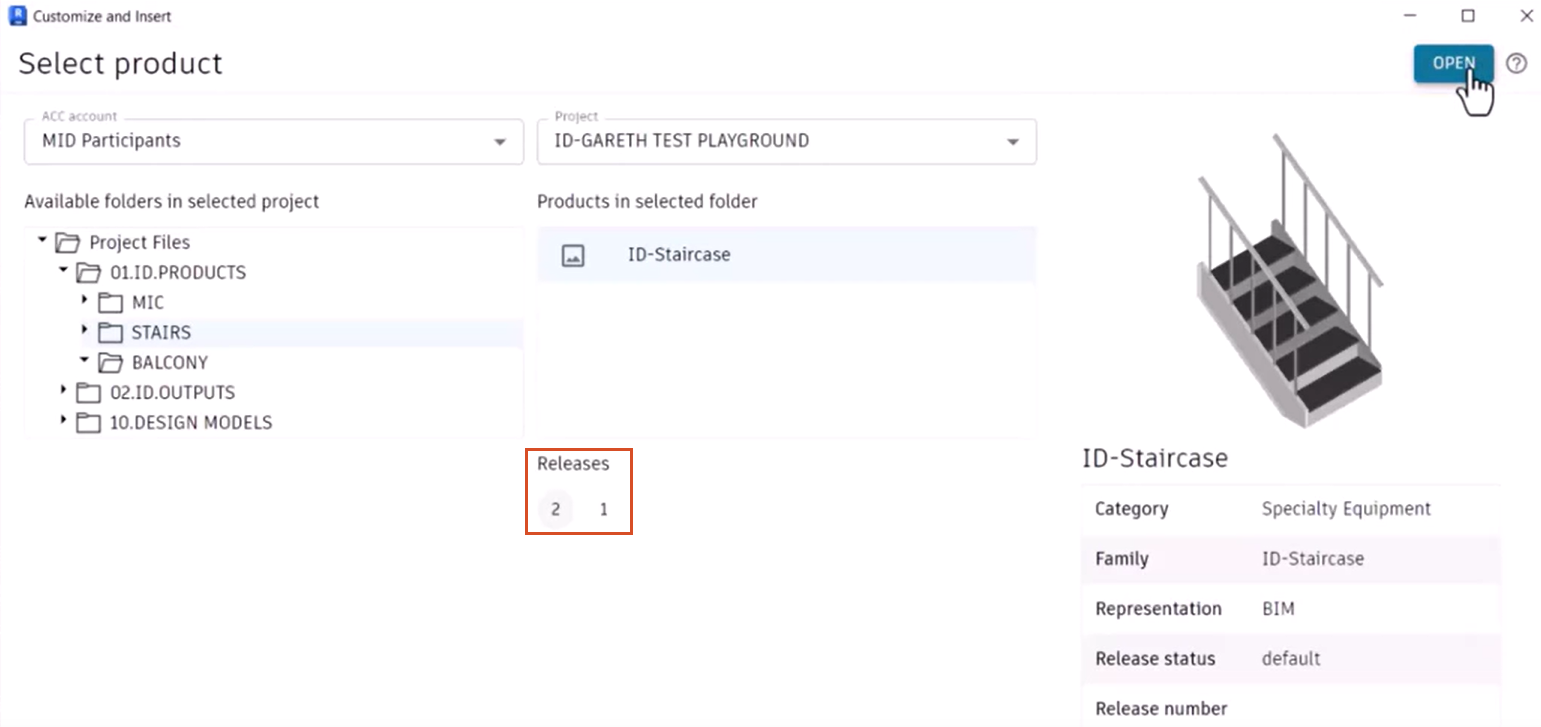

If multiple releases are available for the selected product,

01:13

you can select your preferred release by its release number.

01:17

In this example, select release 2, and then click Open.

01:21

The dialog changes to show the New and Existing tabs,

01:25

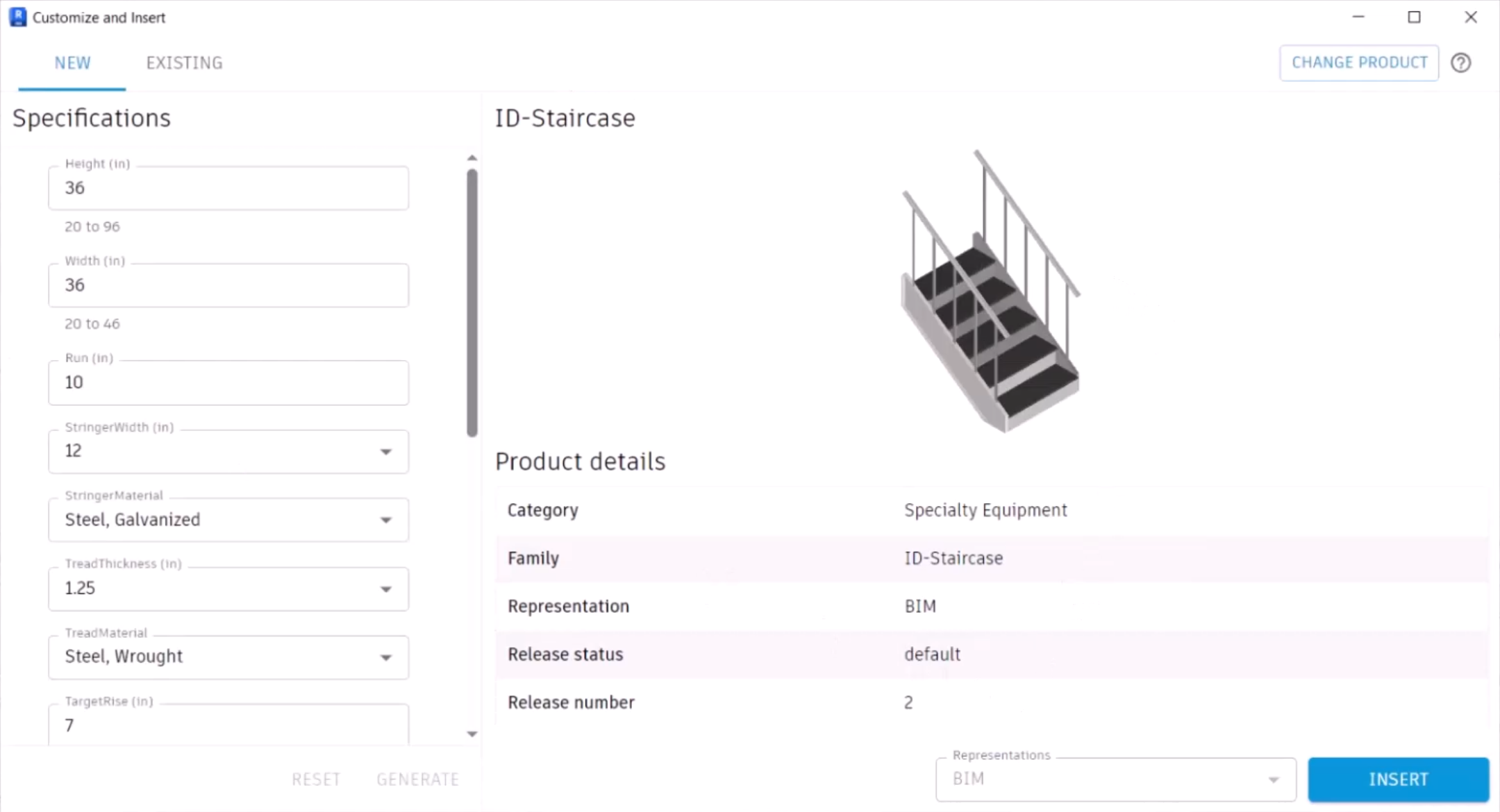

and the product definition opens with the specifications listed on the left

01:29

and the thumbnail and product details on the right.

01:33

You can now customize the staircase assembly.

01:36

Height and width restrictions were added to the product definition when it was created in Inventor.

01:42

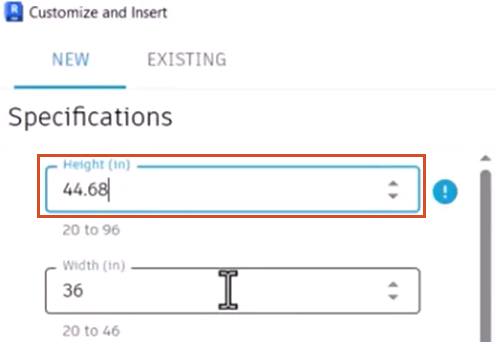

Change the Height to a value between 20 and 96.

01:46

You can also change any of the other specifications, as needed.

01:50

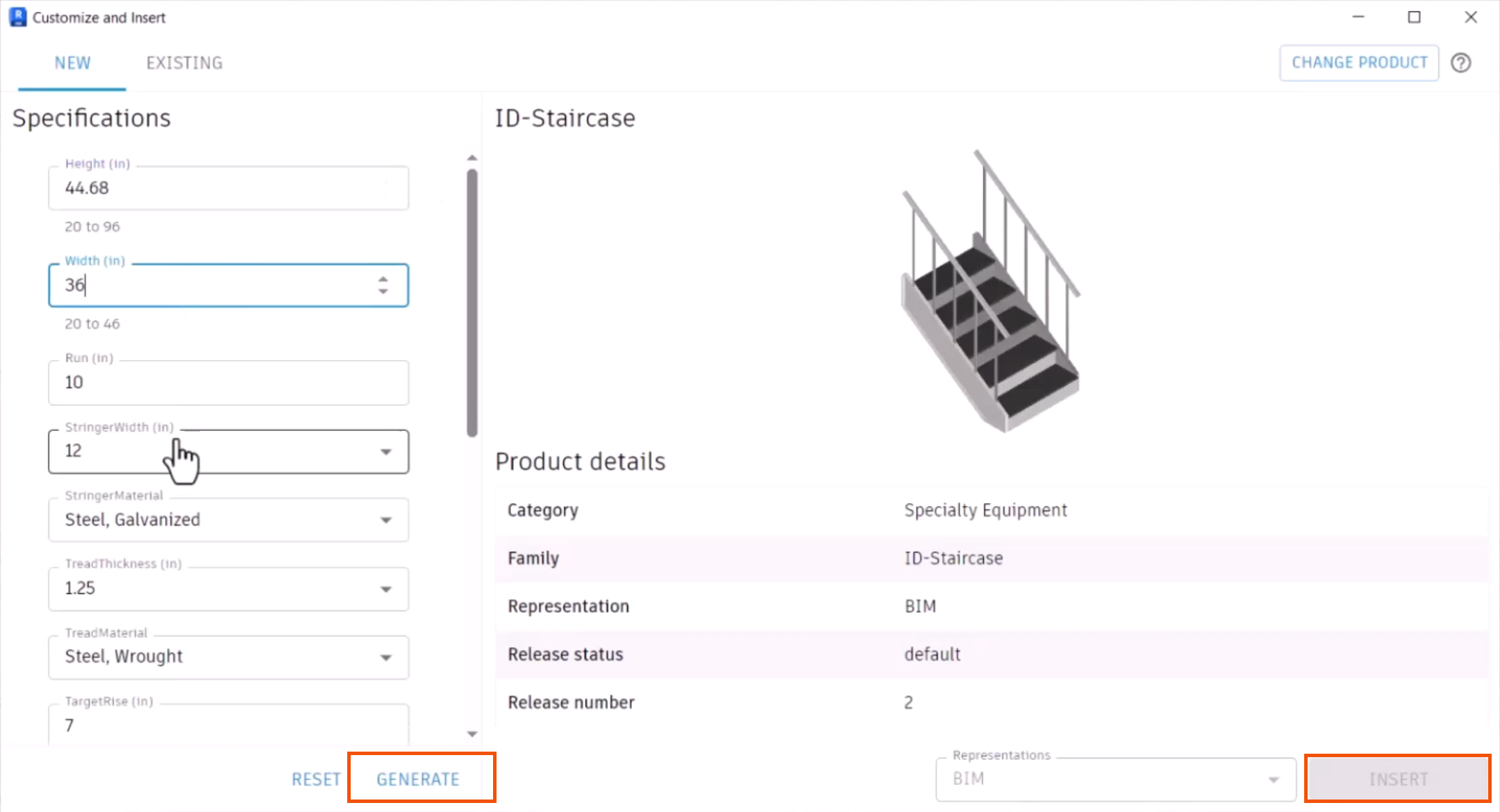

Note that the Insert button is not available.

01:54

Since this is your first variant instance, you need to click Generate to initiate the process.

01:59

It can take a few minutes to generate a new variation, depending on product complexity.

02:05

While you wait for a new variation to generate,

02:08

you can continue editing values and configuring additional variations of the same product.

02:13

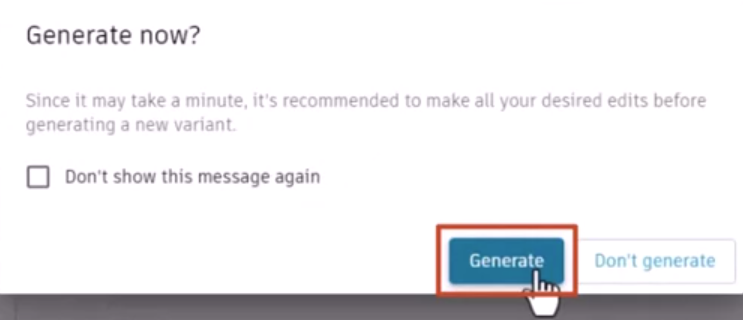

In the Generate now? popup, click Generate.

02:17

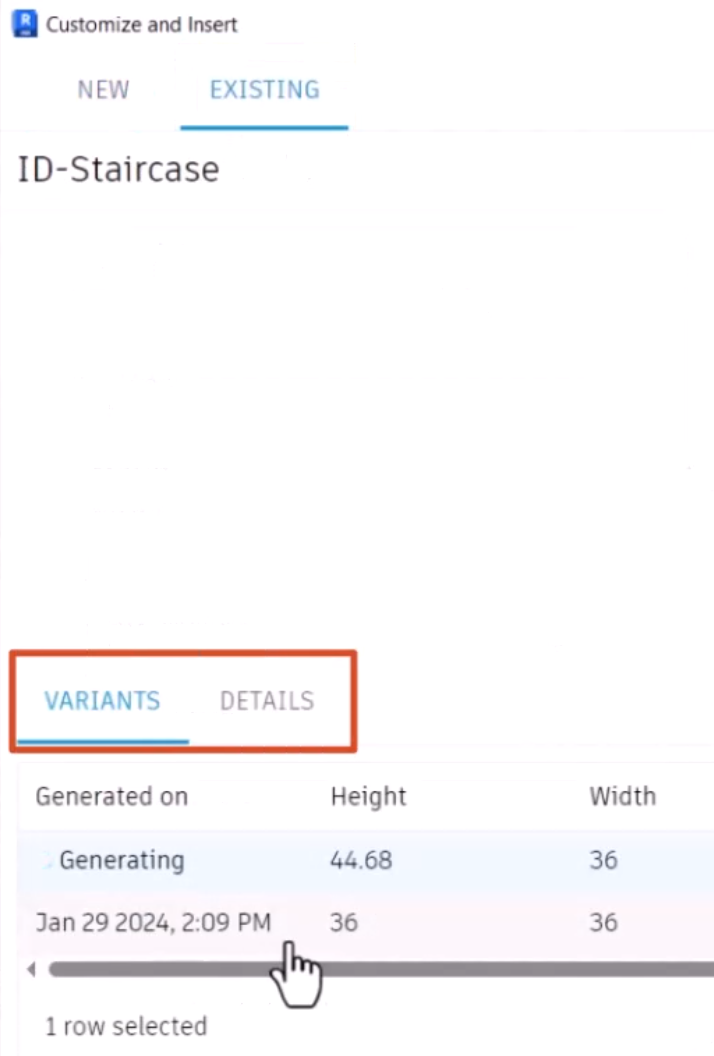

While the variant is generating, click the Existing tab to see the progress.

02:21

Click the Variants or Details tabs to review the information.

02:26

Back on the New tab, you can click Reset and create another variant.

02:31

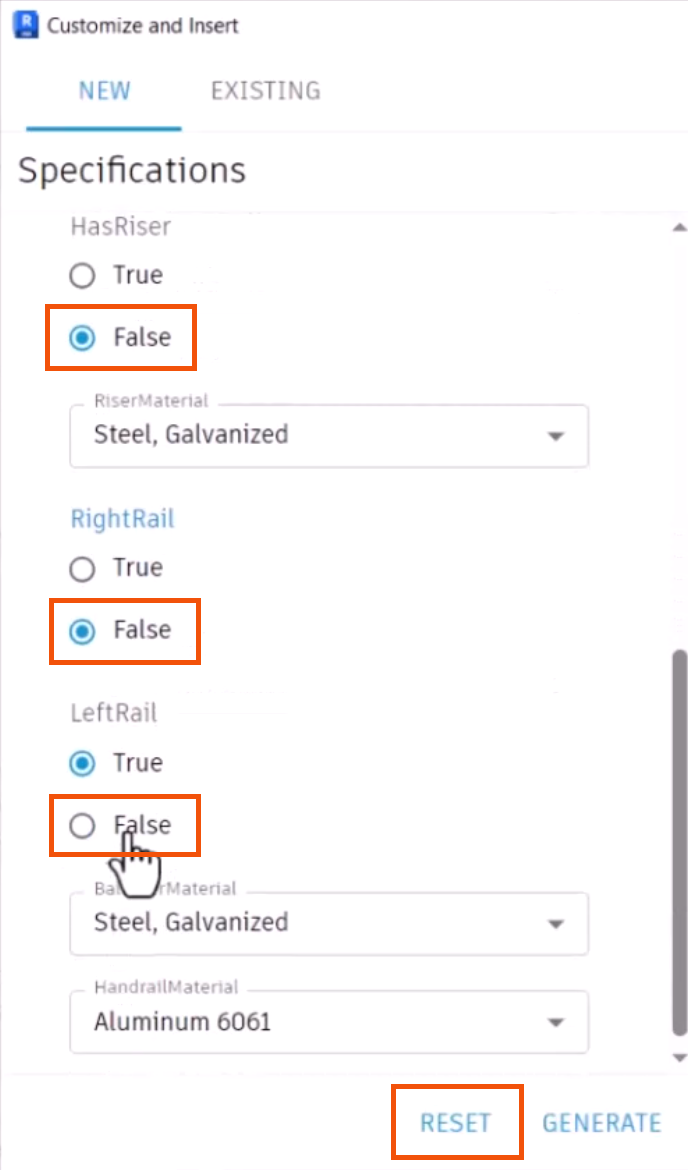

For this variant, switch HasRiser, RightRail, and LeftRail to False, and then set the Width to 46.

02:40

Click Generate again to initiate this variant.

02:44

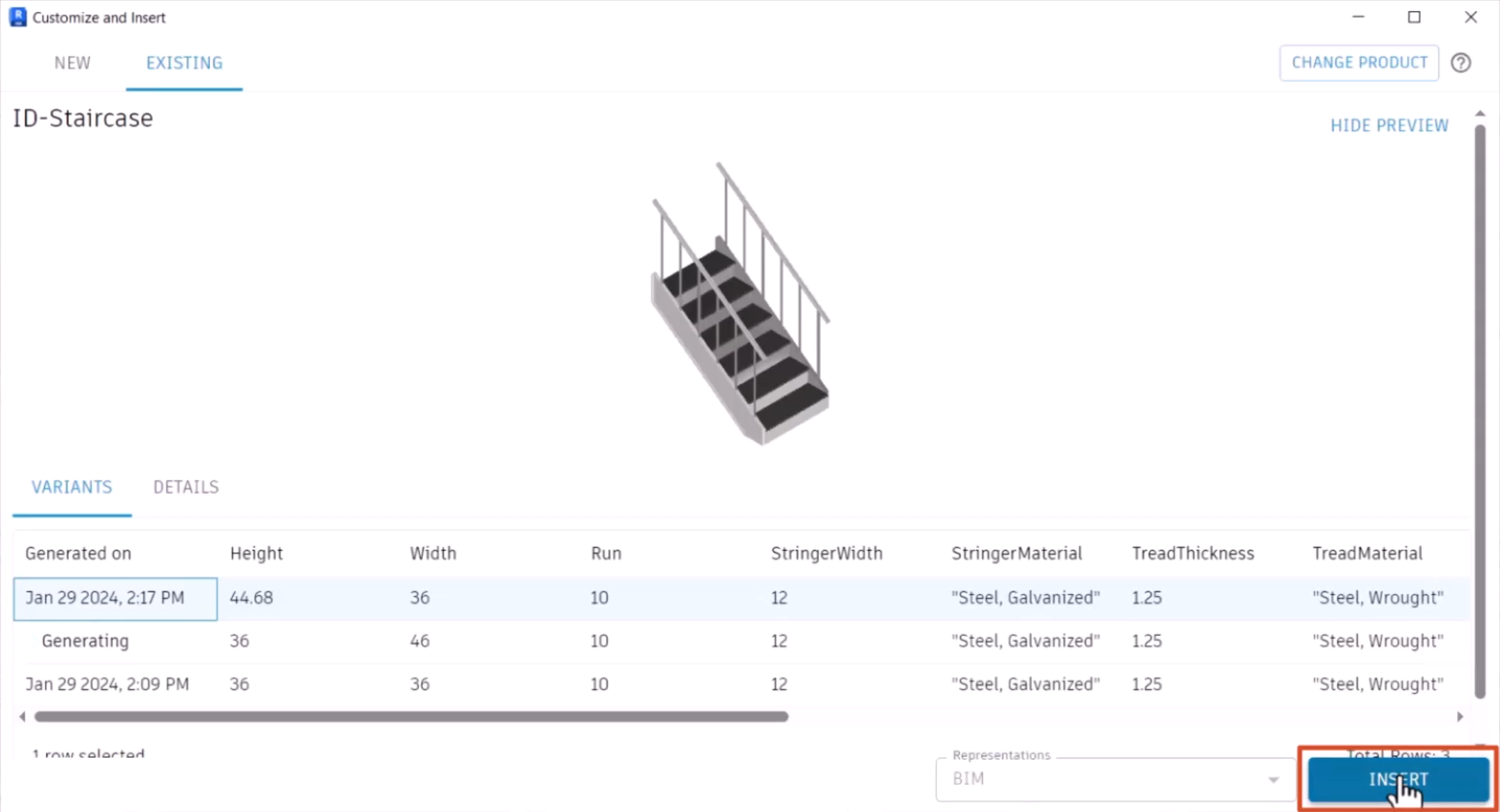

Once your variants are generated, from the Existing tab, select a variant, and then click Insert.

02:50

You can now place this staircase variant into your model using the typical features and functions inside Revit.

02:57

Once you have placed a variant as a Revit element, you can select it to view the Properties.

03:03

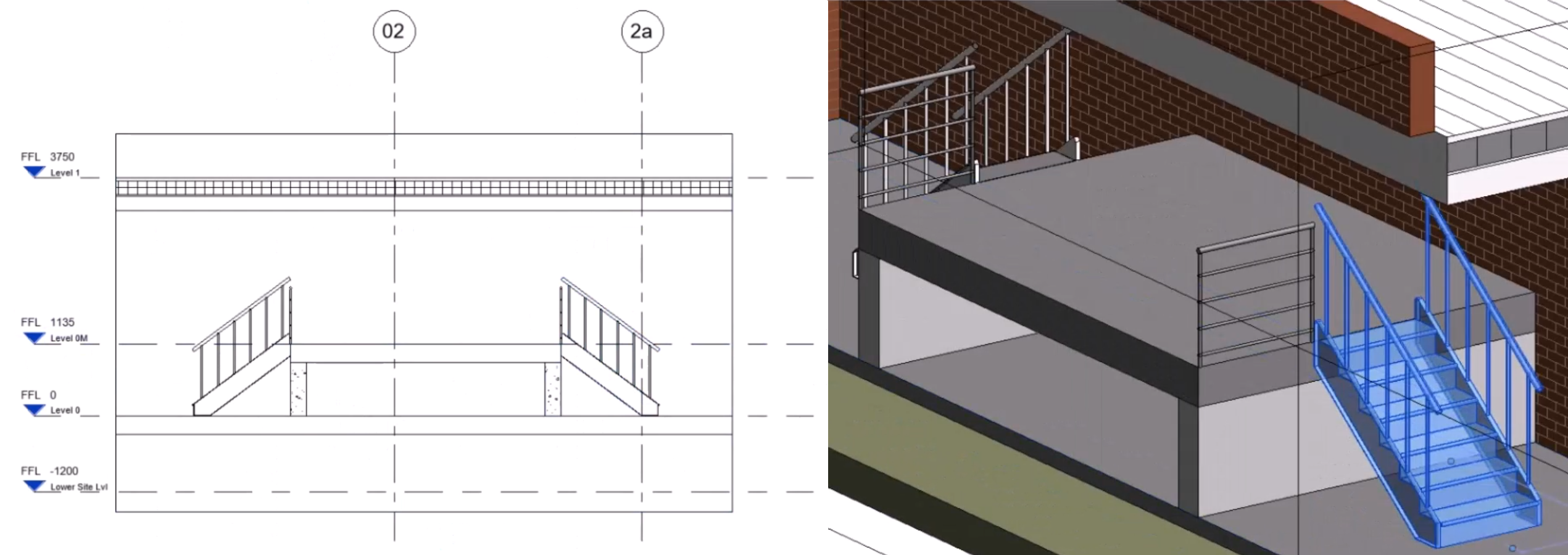

Select the staircase, then switch views to the Section view and 3D view to see what it looks like.

03:10

Because the product definition was created as a loadable Revit Family,

03:13

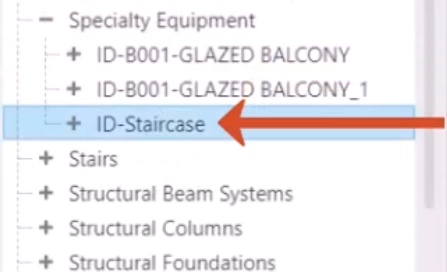

you can expand the Families folder in the Project Browser and locate the definition.

03:19

In this example, open Specialty Equipment to see the ID-Staircase definition.
