Surface Modeling Explained

Surface modeling is a powerful and versatile technique used in various industries to create detailed and accurate representations of objects. Let’s take a look at what it is, its benefits, common techniques, and why Autodesk Fusion is a good solution for your 3D modeling needs.

What is surface modeling?

Surface modeling is the process of creating a three-dimensional (3D) representation of an object’s surface using mathematical equations. The helps designers to develop the exterior shapes and contours of a model, making it look more realistic with textures, smoothness, and even imperfections. Surface models can be viewed from any angle in three dimensions, but unlike solid models, they can’t be split open to reveal internal structures. By creating detailed surface models, designers can visualize and tweak the features of an object before moving to production.

Surface modeling vs. solid modeling

Surface modeling focuses on defining the exterior surfaces of an object. It’s ideal for designing complex, freeform shapes with intricate curves and smooth contours, such as car bodies and consumer products. This technique allows for the creation of realistic textures and detailed surface features, but doesn’t provide information about the object’s internal structure. On the other hand, solid modeling represents the entire volume of an object, including its internal and external geometry. Solid models are fully enclosed and can be split open to reveal internal components. Ultimately, surface modeling is best for aesthetic and aerodynamic design, while solid modeling is for engineering analysis, manufacturing, and structural integrity assessments.

Benefits

• Enhanced visualization: Designers can create detailed and accurate representations of objects to better visualize complex shapes and surfaces.
• Improved design flexibility: Intricate and organic shapes can be easily created that may have been difficult to achieve with traditional modeling techniques.
• Precision and accuracy: Because surface models use mathematical techniques, this ensures a high level of precision and accuracy.
• Streamlined design process: Designers can quickly iterate on their models and easily adjust to achieve the desired shape and appearance.

Types of surface modeling

There are several types of surface modeling methods used in CAD and computer graphics. The most common types include:

NURBS (Non-Uniform Rational B-Splines): NURBS use mathematical equations to accurately describe any shape, from simple 2D lines to complex 3D surfaces.

Bezier surfaces: Bezier surfaces are defined by control points that influence their shape and are commonly used for designing smooth curves and surfaces.

Spline surfaces: Spline surfaces are formed by combining multiple spline curves to create smooth and continuous surfaces.

Subdivision surfaces: Subdivision surfaces are created by iteratively refining a coarse polygon mesh to produce a smooth surface.

Common surface modeling techniques

Several techniques are used to create detailed and accurate representations of objects, including:

1. Lofting involves creating a surface by blending multiple cross-sectional profiles. It’s commonly used in the design of aircraft fuselages, ship hulls, and automotive bodies.
2. Sweeping involves creating a surface by moving a profile along a defined path, making it ideal for creating objects with consistent cross-sections, such as pipes, cables, and extruded shapes.
3. Blending involves creating a smooth transition between two or more surfaces. This is useful for making seamless connections between different parts of a model, such as fillets and chamfers.
4. Patch modeling involves creating a surface by combining multiple smaller patches, each defined by control points, and blending them to form a continuous surface. This technique is often used in character modeling and animation to create complex and detailed surfaces.
5. Deformation involves modifying the shape of a surface by manipulating control points or using deformation tools. This allows for the creation of organic and freeform shapes, such as character faces and clothing.

Common applications

Surface modeling is super useful across many industries for creating detailed and accurate representations of objects. In consumer goods, like electronics, appliances, and furniture, it’s used to design attractive and detailed surfaces, helping products stand out in the market. In the automotive industry, surface modeling helps design the exterior of vehicles, like body panels, grilles, and headlights, to boost both performance and looks.

For the aerospace industry, surface modeling is crucial for making sure surfaces are accurate, which is key for aerodynamic efficiency and structural integrity, ensuring safe and optimal performance. It’s also essential in designing medical devices and implants, where precision is critical. Detailed surface models ensure these devices fit and work correctly within the human body.

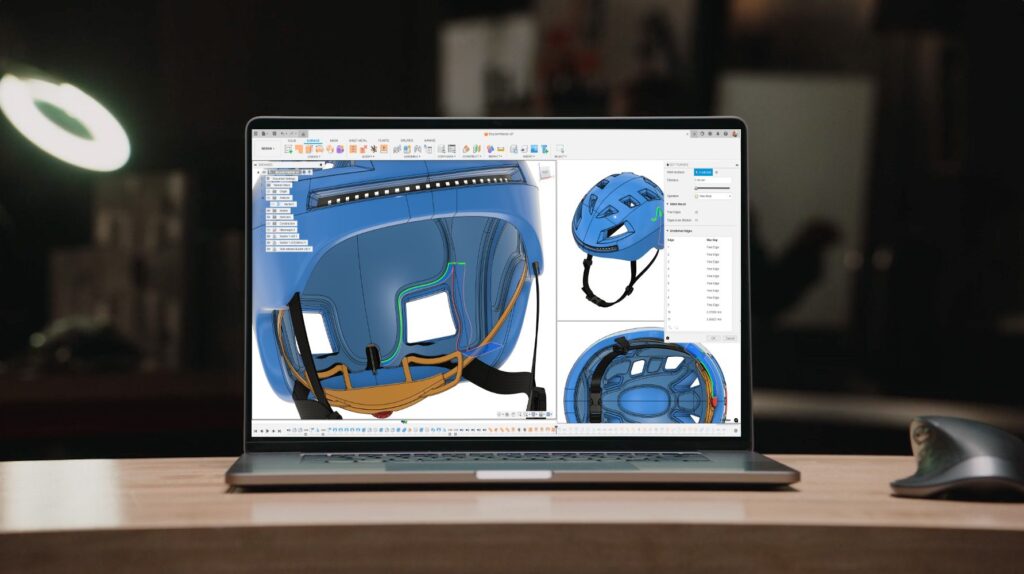

Autodesk Fusion for surface modeling

Autodesk Fusion offers comprehensive set of features for surface modeling making it a great solution for designers who need to create complex and detailed freeform surfaces with precision.

T-Spline technology allows for the creation of smooth, organic shapes and the ability to seamlessly transition between solid and surface modeling within the same environment. Fusion also offers robust tools for manipulating control points, edges, and faces, allowing for fine-tuning of surface geometries.

Fusion also supports various surface creation techniques, such as lofting, sweeping, and patch modeling, making it versatile soution for different design needs. Further, the parametric design capabilities in Fusion make sure that changes to surface models are easily managed and updated, enhancing workflow efficiency and collaboration.

Ready to jump straight to surface modeling in Autodesk Fusion, check out the below video tutorial:
