Time Machine is an award winning clock designed and manufactured with Fusion 360

Lucas Prokopiak April 19, 2017

5 min read

Autodesk Fusion Logo

Elevate your design and manufacturing processes with Autodesk Fusion

Autodesk and world-renowned design firm LUNAR share a passion for work that brings together the best principles in design and engineering.



This past fall, we collaborated on a project to realize a new design concept; all the way from idea to prototype fabrication. The result was Time Machine – an unorthodox, three-dimensional time-telling device.



Time Machine Trio

The Autodesk team included former CEO Carl Bass, industrial designer Arthur Harsuvanakit, and myself, Lucas Prokopiak, a mechanical engineer. We were joined by LUNAR co-founders, Jeff Smith and Gerard Furbershaw, who brought decades of design expertise to the table. Together we set out to reconsider the classic, yet typically mundane clock design. From guiding our initial sketches all the way through manufacturing, Fusion 360 was not just the only software package we used for the entire project, but more like the sixth member of our team.



After months of designing, prototyping, iterating, pulling our hair out, and finally producing a limited batch of twenty-five clocks, our efforts were rewarded. Time Machine received two awards from the Spark international design competition. Now that we’ve caught up on sleep, we’re sharing this project and our experiences as proof of what Fusion 360 can do for designers, engineers and fabricators who are looking to create the next generation of products.



What is it?







Pairing LUNAR and Arthur’s industrial design prowess with Carl’s astute product eye meant Time Machine wasn’t going to be just another design/fabricate sprint to put Fusion through its paces. Instead, every aspect of the design was carefully considered for today’s manufacturing methods.



Harkening back to older mechanical clocks, Time Machine employs a fascinating mechanism to communicate time. This mechanism drives twelve wings as they each successively turn 180 degrees to denote five minute periods. These rotations alternate the outward facing color of the wings between dark and light. The result creates a striking representation of time – analogous to the daylight and nighttime of each day.



To indicate hours, a ring of lights surrounds a cylindrical void in the center of the clock. As each hour passes, a new light segment is illuminated and the ring gradually grows to a completion throughout twelve hour periods. Its growth represents a half-day appearing and disappearing around a mysterious hole of nothingness. Like five-minute, one-hour and twelve-hour hourglasses, Time Machine visually and viscerally focuses both on how much time has passed and how much is left.



Fusion 360’s Role:



Our team began by tossing around speculative clock designs before settling on Time Machine’s flipping wings motif. These initial meetings were aided by quick sketches, rough models, renderings, and animations in Fusion, not to mention 3D prints and other rapid prototypes to engage the team in discussions.



Time Machine Past Concepts



Once the flipping concept was finalized, designing a low-profile, single actuator mechanism to drive the motion became the primary challenge for us. The iconic cylindrical void at the center of the clock made this challenge even greater. After extensive prototyping, we were able to come to what we thought was a clever solution. We used an off-center stepper motor interfacing with a custom-designed central gear featuring perpendicular teeth. These teeth intermittently rotate bevel gears attached to each of the individual wings. The central gear also incorporates a following feature that keeps the non-rotating wings in position. This ensures no curious fingers (or cat paws) can disrupt the clock’s flat face.



After we came up with the concept and modeled it, we attempted to simulate the motion using joints and contact sets. We found Fusion struggled to smoothly solve such computationally-intense calculations. We then tried using motion links, motion studies, and in depth animations only for each to present their own difficulties. After hours of uncovering the limitations of these functionalities, we were able to work through the difficulties and create satisfactory results. Although the workflows weren’t perfect and we recognize this as a growth area for the software, it was great to create realistic moving simulations of the design.

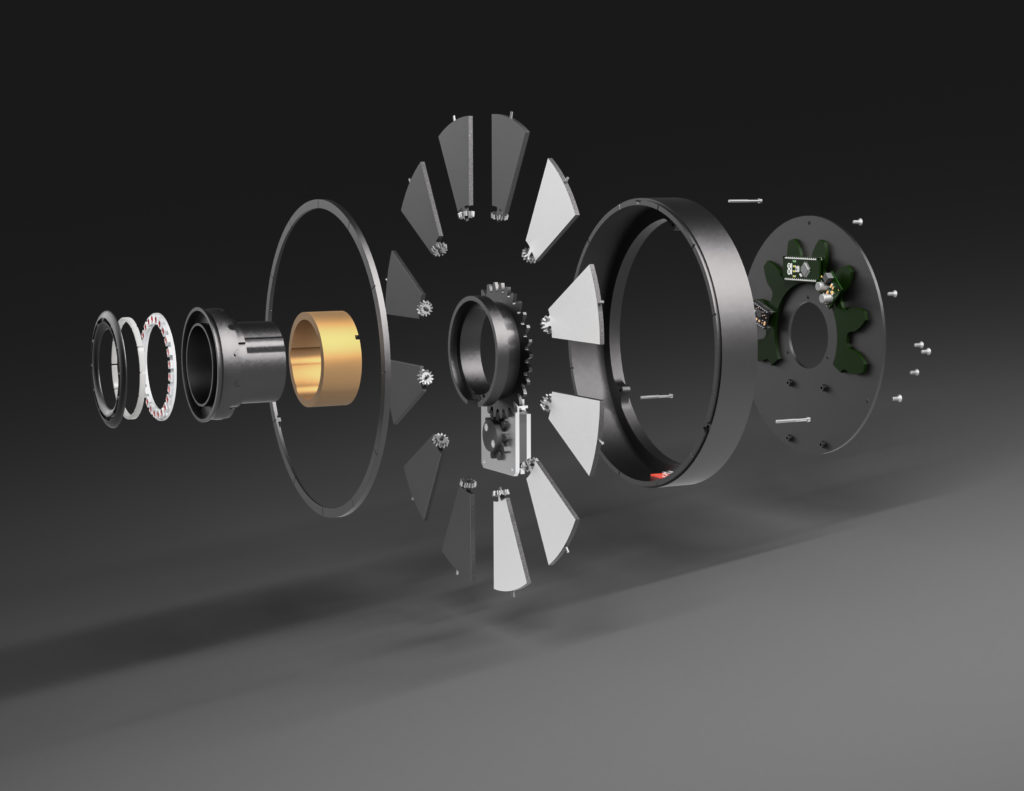

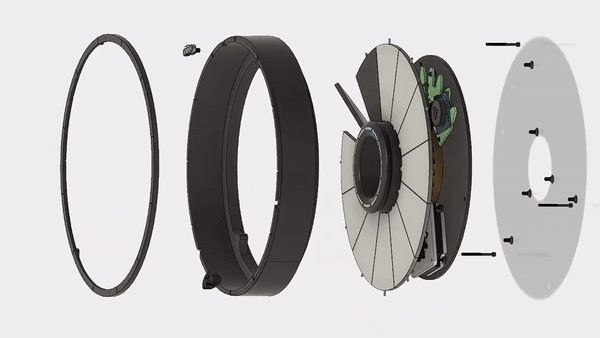

Time Machine Exploded Animation



Once the mechanism was finalized, we began the arduous process of fabricating twenty-five individual clocks. We spent many late nights machining nineteen of the clock’s parts (times 25, need I remind you) out of aluminum on Haas CNC mills and lathes. While the CNCs were running, we were 3D printing the gears out of a lubricious, yet durable material, and waterjet cutting the base out of a slab of limestone. Each of these processes was directly driven by Fusion 360’s integrated manufacturing capabilities and were carried out in Autodesk’s Pier 9 Workshop. The ability to edit parts and automatically update toolpaths was a big time-saver for us, and once again we came away very impressed by the CAM workspace. After machining over 500 parts and sending them out for anodizing, we all got together to assemble each clock by hand in our San Francisco offices.

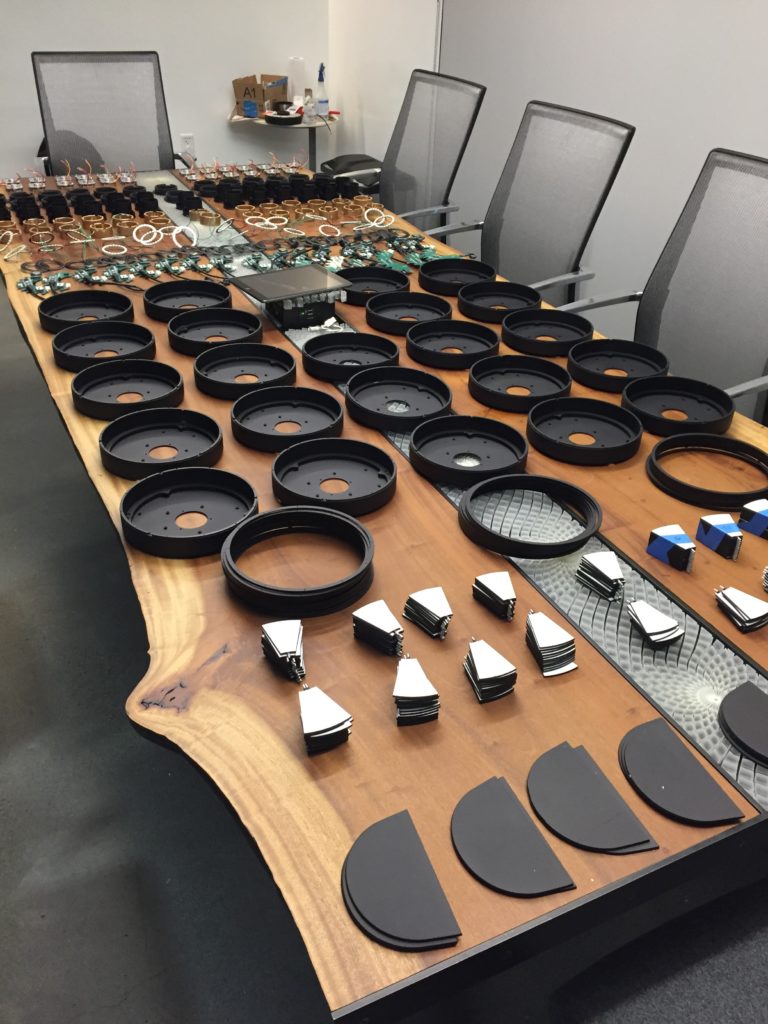

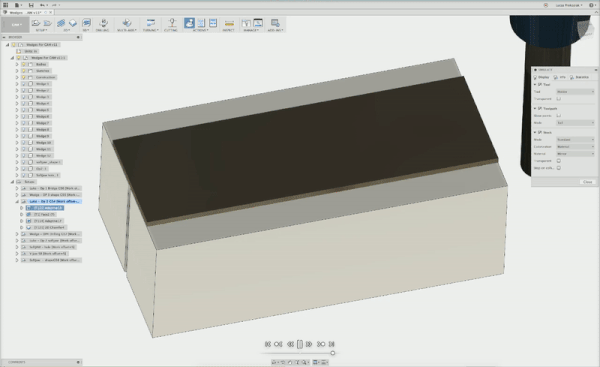

Time Machine CAMTime Machine Assembly



Finally, to document the project, we used Fusion 360’s rendering workspace to create digital representations of the clock. These allowed us to share exploded views, to imagine the clock in different settings, and even to play around with surface finishes. After struggling with the difficulty of making motion studies, the hard work paid off once we went to render them. With the click of a button, we created a photorealistic movie to showcase how the clock functions (as you can see below).



Time Machine on TableTime Machine Exploded

Time Machine Motion Study

So what?



At Autodesk we’re always trying to understand what our customers need when they use our software. By partnering closely with the LUNAR team and jumping directly into the role of product designers everywhere, we gained invaluable firsthand experience by witnessing where Fusion flourishes and, more importantly, where it must improve. Over time we’ll incorporate these insights as we continue our goal of making Fusion 360 the premier Product Innovation Platform on the market. In the meantime, we hope award-winning-projects like Time Machine continue to inspire our users to imagine, design and create better products for a better world.



For more information, check out the project in the Fusion gallery post.
If you just want to chat about clocks, feel free to reach out to lucas.prokopiak@autodesk.com and arthur.harsuvanakit@autodesk.com.



Cheers!



-Lucas
