Toon shader: Bring retro 2D style to 3D computer graphics

Capture the vintage vibes of comic books and 2D cartoons within 3D computer graphics using a toon shader. The 3D toon shading rendering technique flattens 3D contours to elevate artistic expression.

Image courtesy of Zombillenium © 2017 Maybe Movies, Belvision, 2 Minutes, Pipangaï

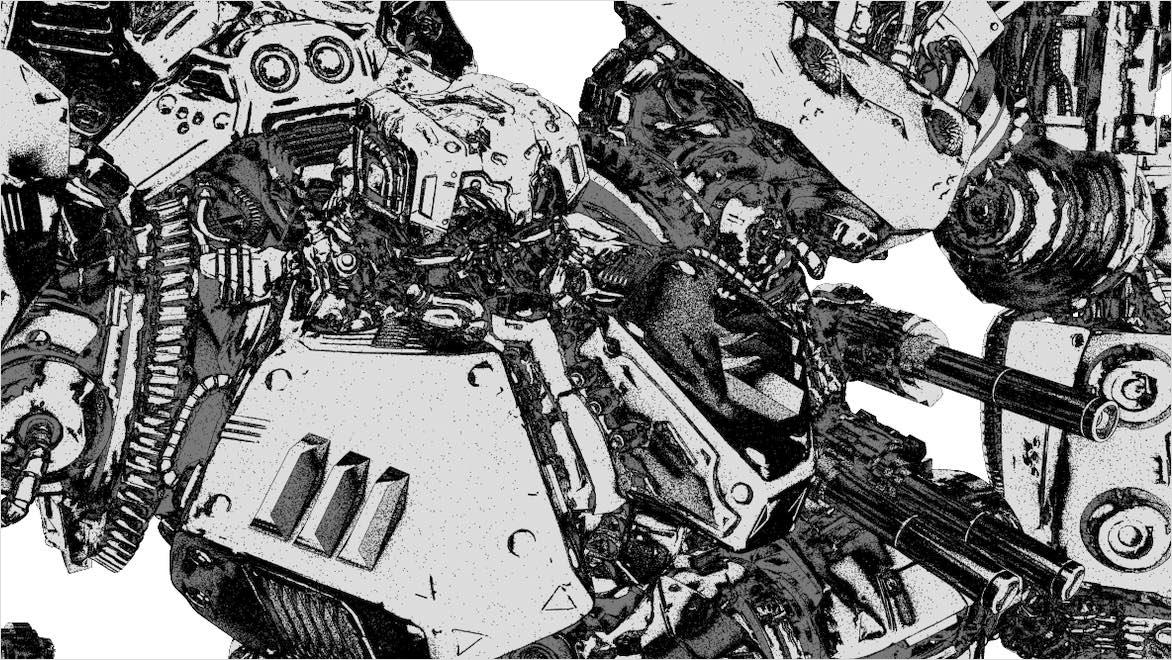

Toon shading sketch-like mech suit image created with Arnold toon shader
Toon shading creates stylized, cartoon-like effects on 3D computer graphics and animations.

What is toon shading?

Toon shading is a non-photorealistic technique in 3D rendering software that makes 3D computer graphics appear more like 2D hand-drawn cartoons or comic books. Using shading and outlining, a toon shader simplifies the depth, lighting effects, and texture of objects and characters to combine elements of both 3D and 2D visuals into distinctive, stylized looks.

Toon shading still from Sony Pictures' Spider Man: Across the Spider-Verse

The retro feel of toon shading lends itself well to 3D animation adaptations of classic cartoons and 2D media. Teenage Mutant Ninja Turtles: Mutant Mayhem made with Arnold. Image courtesy of Mikros Animation.

Understanding the basics and beyond of toon shading

Not long after the advent of computer graphics, experiments with toon shading (also referred to as cel shading) emerged as a way to render visuals in different, non-photorealistic ways. While traditional shading techniques use smooth gradients of shadow and lighting, toon shaders use only a small number of solid shades. In addition, toon shading tends to outline objects and characters in deep black. Both elements contribute to toon shading’s flatter, more hand-drawn appearance.

In the late 1990s to early 2000s, toon shading became more popular with video game developers, and the technique hit a new stride, such as with the popular multiplatform game Cel Damage. As animating within 3D modeling software became the norm, toon shading also became a way for visual media to retain more of the 2D look of cel animation and comic books along with the advantages of working in 3D software.

In the present day, toon shading is still important in animation and game design, helping 3D visuals achieve the look of vintage sci-fi, comic books, and manga that invokes nostalgia in older generations while appealing to a retro-modern cool aesthetic with younger audiences. Popular recent examples include Marvel’s What If…? series and Sony Pictures’ Spider Man: Across the Spider-Verse movie.

Toon shader 2 stylized drawings of a woman's facing showing different lighting effects in Arnold toon shader

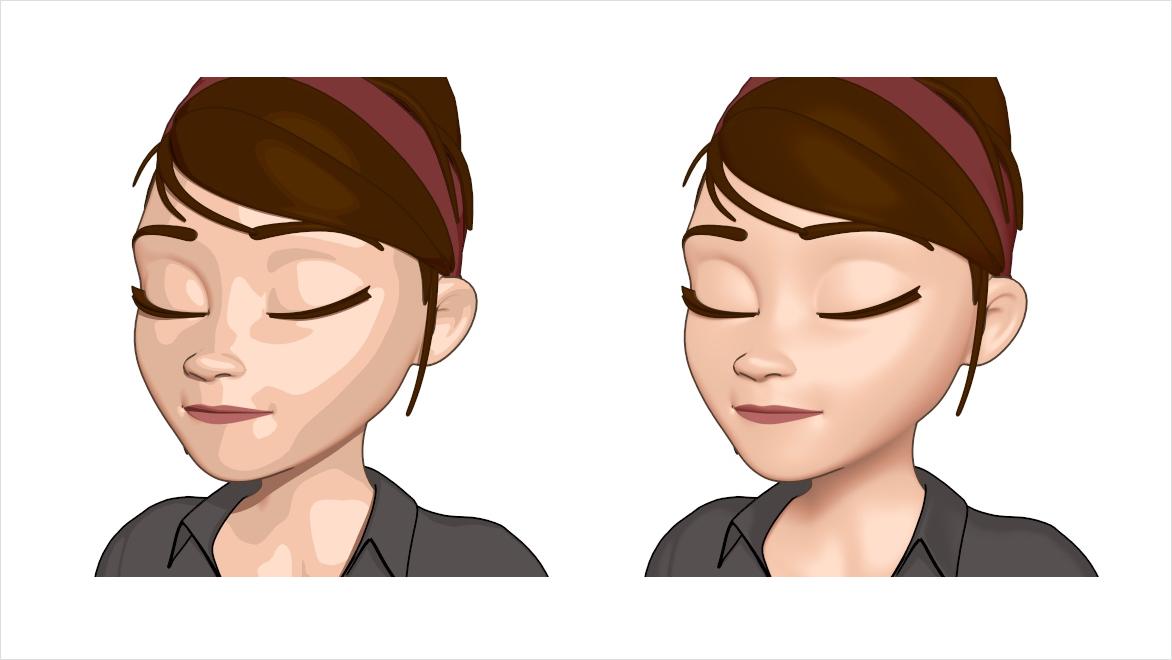

Arnold's toon shader settings include adjusting the base tonemap, with options like distant_light (left) and skydome_light (right).

Diving deeper into toon shader technologies

Let’s take a look at some of the specific capabilities of Autodesk Arnold’s toon shader.

When enabled, the toon shader’s edge setting detects the borders of an object or character and applies an edge to them, with settings for edge color, tonemap, opacity, and more. The silhouette settings enhance the presence of edges, and rim lighting can further emphasize edges by applying different light types around the inside of edges.

Other key traits of the toon shader include the specular reflection, specular highlights, and stylized highlights that dictate how a surface appears to reflect and refract light and how light casts highlights on the surface. Transmission simulates light scattering through a surface like glass and emission simulates an object emitting light.

Toon shading still of car crashing through billboard from New Tales from the Borderlands
The Borderlands video game series is known for its comic art style, which makes use of toon shading. Image courtesy of Gearbox Software/2K Games.

Transforming animation and game visuals through 3D toon shaders

Toon shaders have been instrumental in bringing popular franchises in the manga and anime world to video games. They have helped video game versions of Dragon Ball Z, Pokémon, and others retain their unique hand-drawn look within action-packed gameplay.

Toon shading and cel shading also let artists experiment with hybrid rendering techniques that combine different methods into original styles. For example, Need for Speed Unbound (2022), the 25th title in the NFS franchise stretching all the way back to 1994, mixed up its visual style by combining graffiti art and cel-shaded graphics with more realistic elements. Its uniquely remixed visual style and its open-world, illegal street racing gameplay made the game look like a fresh start for an old favorite.

Another long-running game series, Borderlands, made the bold choice of using a toon shading, comic art style in a first-person shooter (FPS) game in 2009. It looked like nothing else in its genre, and that—along with its addictive gameplay and irreverent humor—made it one of the most popular and bestselling FPS series.

Artists experimenting with toon shading can traverse visual terrain that sidesteps 3D conventions and captures audiences’ imaginations. Beyond just the cel shading technique that evokes comic books and cel animation, the Arnold toon shader can achieve other non-photorealistic styles as well, such as pixel art and a cross-hatching sketch style.

Benefits of using toon shader software

Using rendering software like Autodesk Arnold to apply a toon shader yields technical and creative benefits.

Distinct style

Toon shading bestows a stylized aesthetic upon 3D graphics that can be refreshing to audiences and make projects stand out. A toon shader’s hand-drawn appearance can spark nostalgia in older viewers and can also be more memorable compared to the standard 3D realistic rendering for younger viewers.



Consistency

Using toon shading in animation or video games keeps the aesthetic consistent between various lighting conditions and also makes it easier to keep the visual style consistent if the project extends to other media formats.



Simplicity

Toon shading simplifies shading in general by using fewer colors and tones. It can make the work quicker than realistic shading while also simplifying the animations visually.



Highlighted silhouettes

Part of the toon shading technique includes easily visible, black outlines around shapes, emphasizing 3D models’ form, structure, and silhouettes and making characters and objects stand out against backgrounds.



Efficient rendering

Toon-shaded graphics take less processing power to render than photorealistic graphics, so toon shading can help smaller development teams with small budgets. Toon shading can also make performance smoother when real-time rendering is used, like with video games.



Artistry

Finally, toon shading gives artists a less conventional tool for experimenting with styles and getting creative. They can combine toon shading with other shading and rendering techniques to produce a unique aesthetic.
