Incorrect load distribution on members for one way cladding in Robot Structural Analysis

Autodesk Support

Oct 8, 2023

Products and versions covered

Issue:

Incorrect load distribution on members for one-way cladding in Robot Structural Analysis.

Despite one way cladding type definition, loads are applied to all bars in cladding plane.
Example:

Example of load distribution using "Load distribution regions" display attribute



Causes:

Bars not perpendicular and not parallel to cladding local x axis.
Despite one way cladding type selection, loads are applied to all elements which are not parallel or perpendicular to cladding local x axis.

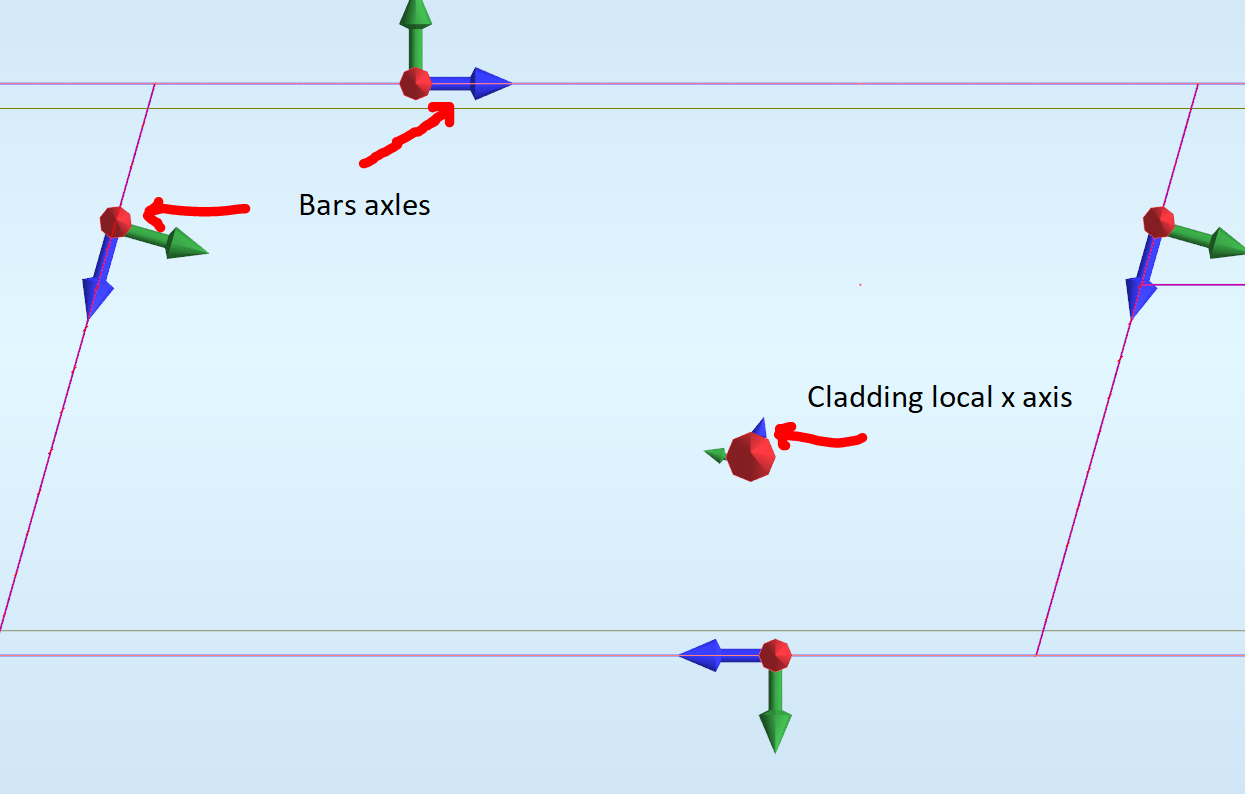

Existing members local axis compared to cladding local axis



Solution:

Possible solutions:

Change cladding local x direction. Depending on one-way cladding type, members parallel (One way-X) or perpendicular (One-way Y) to cladding local x axis will be neglected in load distribution.


Follow the steps:
  1. Open Geometry > Properties > "Local panel direction".
  2. Activate Definition of local X axis direction.
  3. Define pick two points defining cladding local x axis direction.
  4. Activate Panel field.
  5. Select cladding.
  6. Click Apply button.

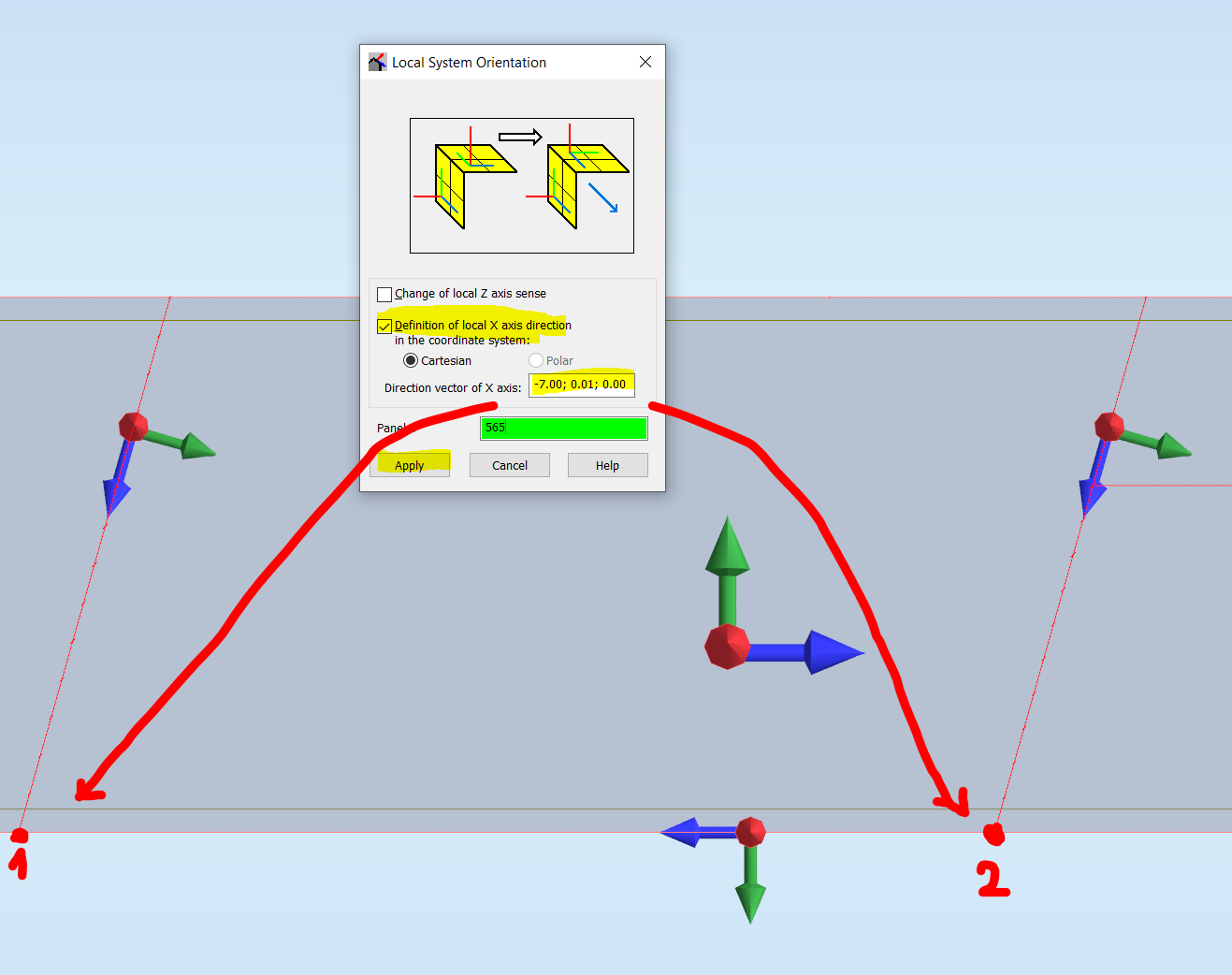

Changing cladding x local axis direction using vector



Change cladding type to Two Way and exclude required members from load distribution.


Follow the steps:
  1. Open Geometry > Additional Attributes > Load Distribution > Claddings.
  2. Select "Two-Way" cladding type.
  3. Activate Current selection field.
  4. Select cladding .
  5. Click Apply button.

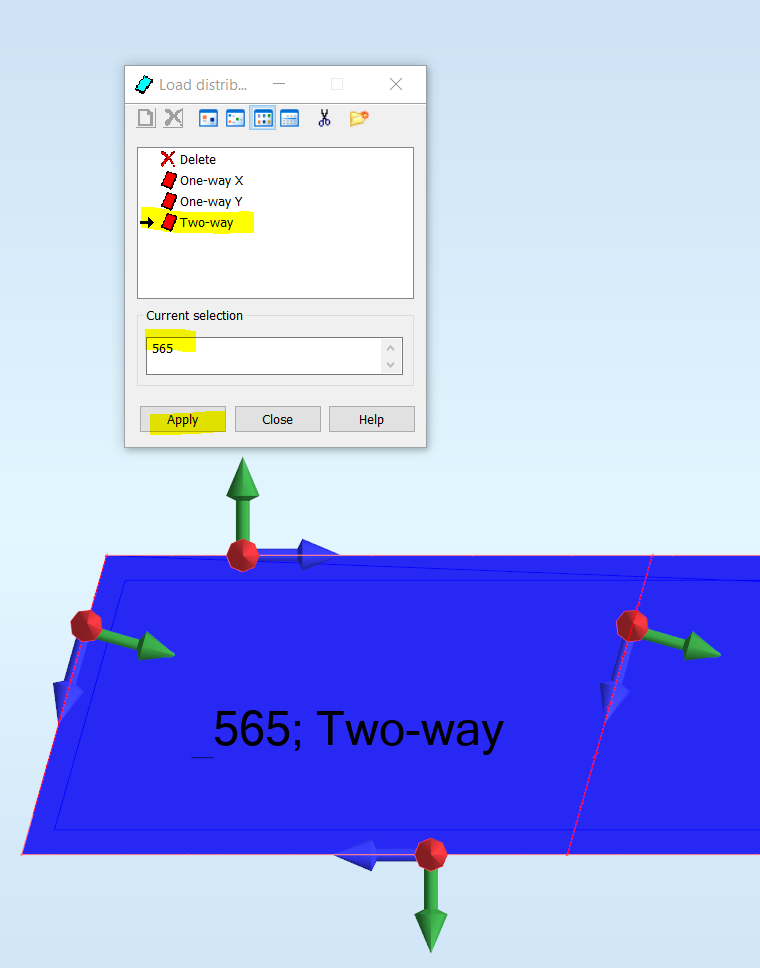

Applying "Two-Way" cladding type to selected cladding
  1. Select members to be neglected in load distribution.
  2. Change Trapezoidal and triangular method (for selected bars) to Ignore in Project Browser.

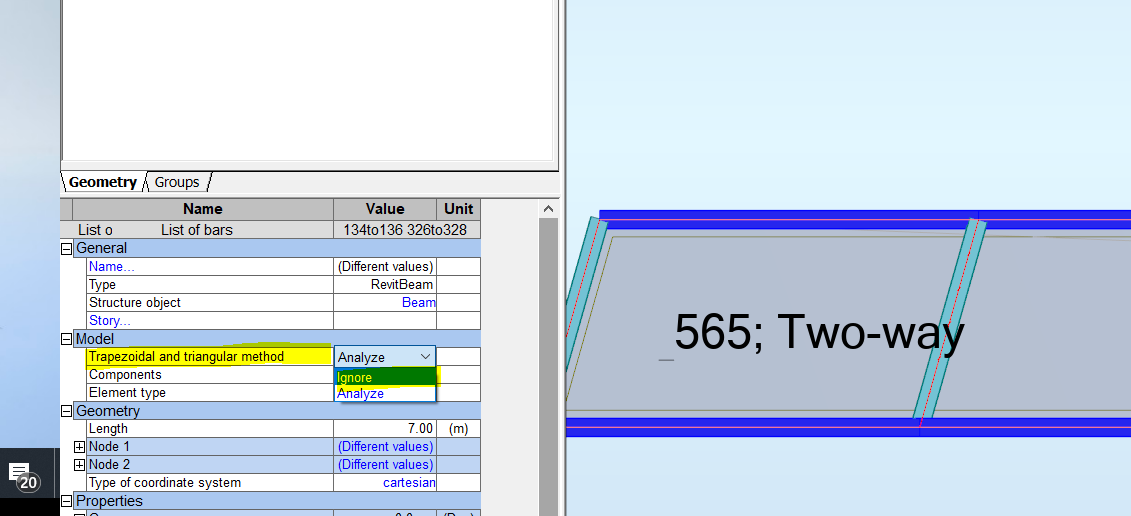

 Neglecting selected members from Load Distribution in Objects Inspector


Products:

Robot Structural Analysis Products;
