Quantity in Vault Item BOM for Inventor files doesn't work when switching from static to calculated

Autodesk Support

Apr 14, 2025

Products and versions covered

Issue:

Quantity in Vault Item BOM (Bill of materials) for Inventor files doesn't work when switching from static to calculated settings.



Example:

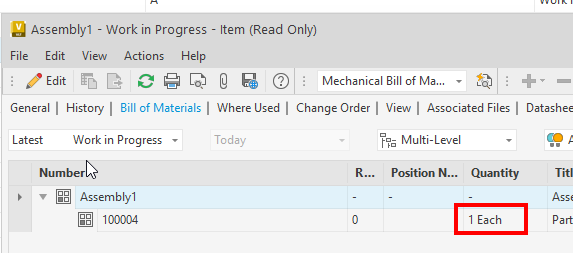

  1. Value read originally from Inventor file is 1 Each:
    Original Quantity read from Inventor files and shown in Vault Item BOM

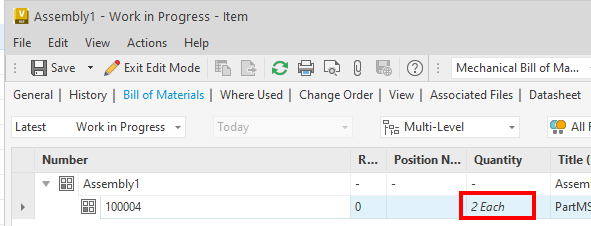

  2. Value overridden with static value is 2 Each:
    Overridden static Quantity value shown in Vault Item BOM

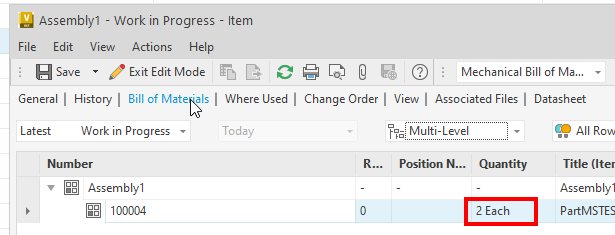

  3. When switching back to calculated it stays with overridden value 2 Each:
    Quantity reverted to calculated value keeps overridden value in Vault Item BOM

Solution:

Run Update on item to refresh the Quantity value - Revert the Quantity to the CAD Value | Vault 2026.

Products:

Inventor; Vault Professional;
