Separation contact not recognized for parts defined with gap in Inventor Nastran

Autodesk Support

Oct 8, 2023

Products and versions covered

Issue:

Separation contact not recognized for parts defined with gap in Inventor Nastran.

Example
Gap between parts.
Obtained results.


Solution:

Define Penetration surface offset (equal to gap width) in contact definition.
Follow the steps.

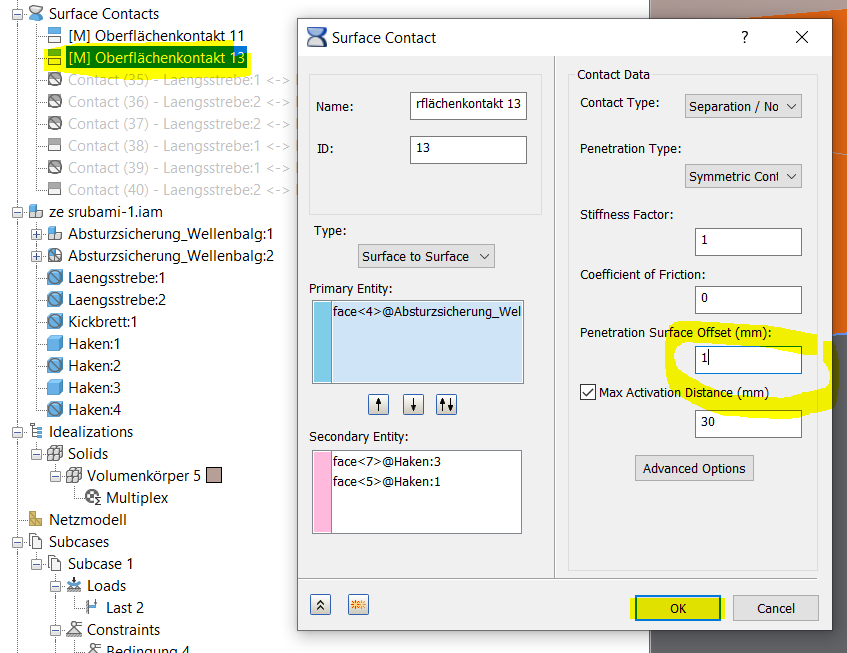

  1. Double-click contact to be modified from Nastran Tree.
  2. Define Penetration surface offset (equal to gap width).
  3. OK.
  1. Run calculations.

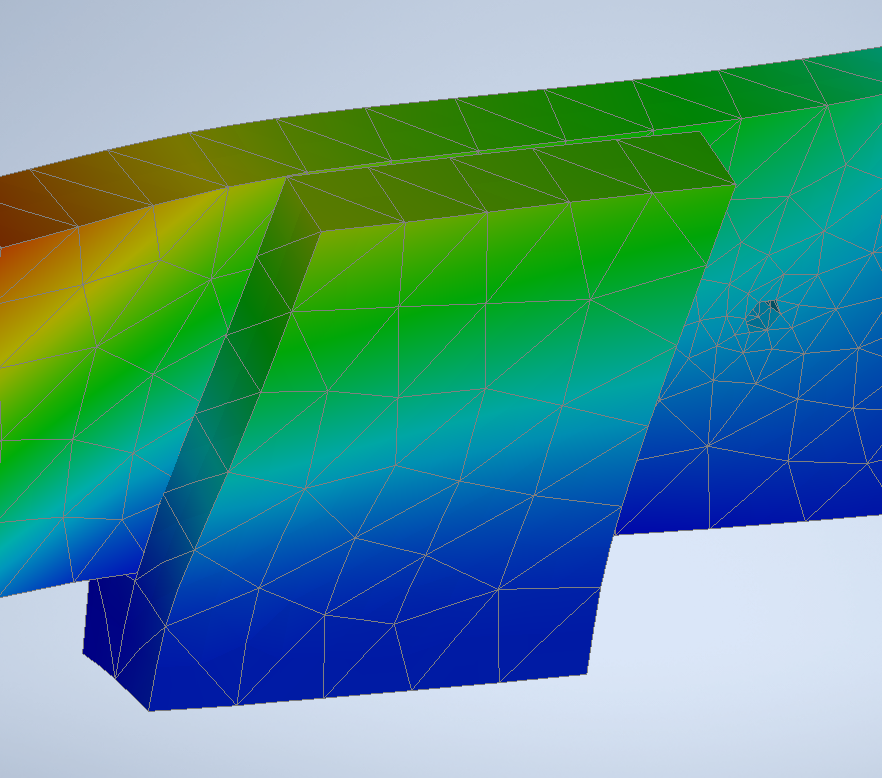

Example of results for modified model.
