Wall lines are showing through the Column in Revit

Autodesk Support

Oct 8, 2023

Products and versions covered

Issue:

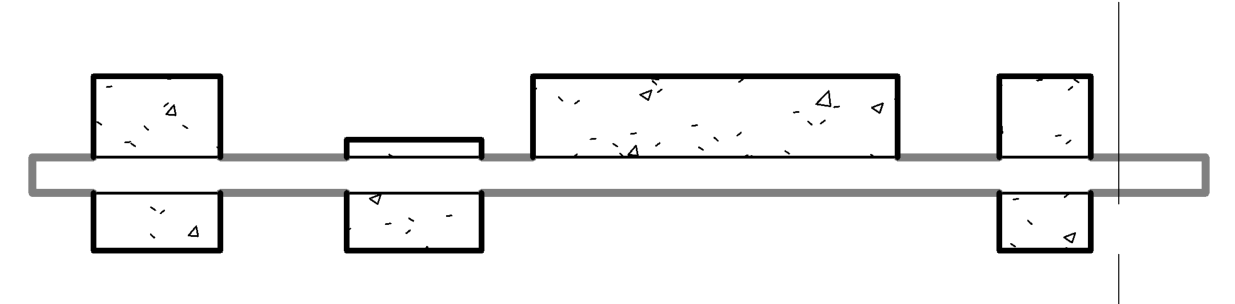

Wall lines are showing through the Column in Revit.
Even when the walls are joined to the column.

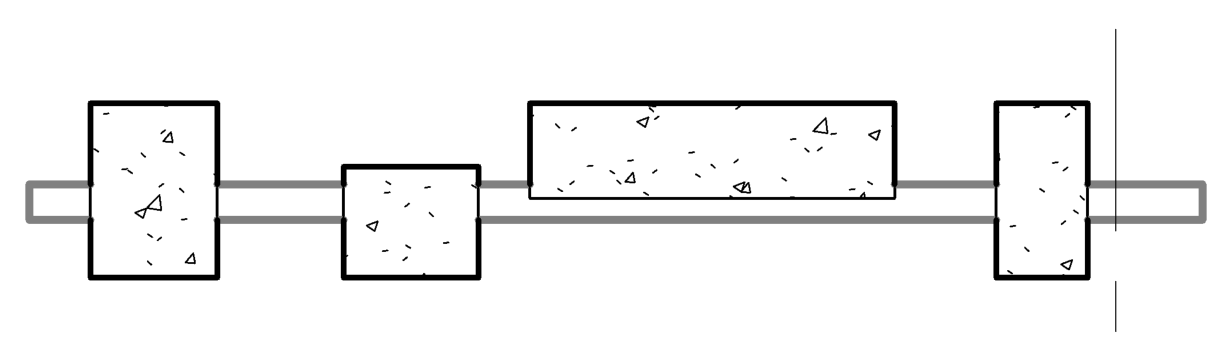

The expected look when joined is below.

Causes:

The Columns are not Structural Columns.

Solution:

To resolve this issue:
  1. Change the family category to Structural Column: Specify Family Category and Parameters.
  2. Join the Wall and Structural Column.

Products:

Revit Product Family;
